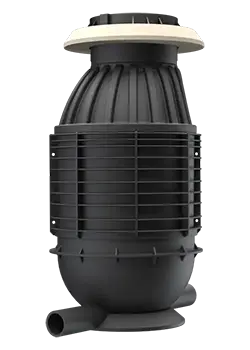

ROMOLD DN625 pre-benched maintenance / inspection chamber
The ROMOLD DN625 Plastic Manhole Maintenance chamber offers the opportunity to reduce cost and installation time of a project, but retains the same durability and performance offered by the larger DN1000 Plastic Manhole chamber.
Suitable for both wastewater and storm water applications, the chamber provides the flexibility that you require to construct a pipeline that performs well into the future.
Features
- Simple and easy to install

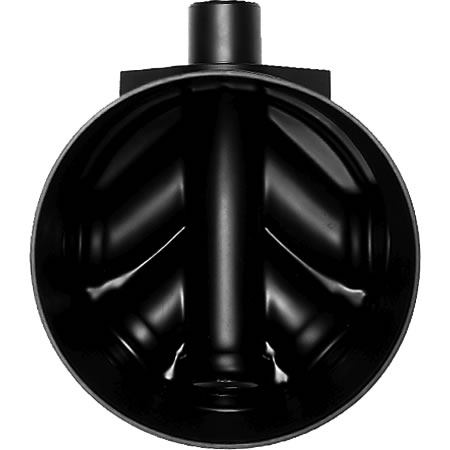

- Pre-benched bases
- Modular construction – risers are available
- Outlet spigot with base options for DN150, DN175, DN225, DN300 PVC pipe

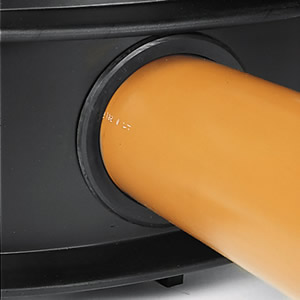

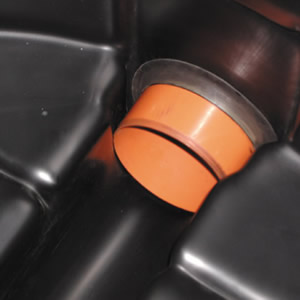

- Blank inlet ports that can be drilled for inlet seals DN32 – DN300
- Height adjustable to the nearest cm
- Approved for HN-HO-72 traffic loading
- Approved to EN 13598-2
Specifications
- Material: Polyethylene

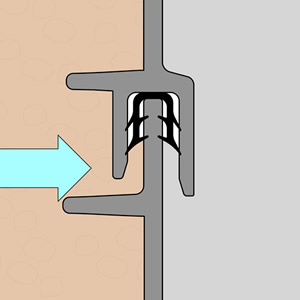

- Seals: EPDM or SBR
- Diameter : 625mm internal
- Pipe sizes (outlet): DN150 – DN300 PVC (customised pipe size/type solutions also available)

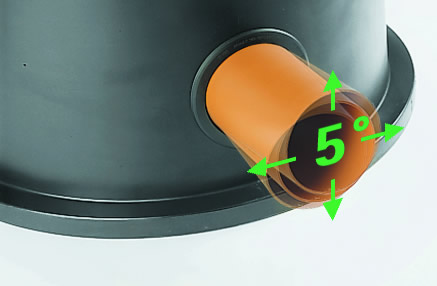

- Angular tolerance at inlet: ±5°
- Grade tolerance: up to 9%
- Maximum depth: 3m
- Maximum groundwater: 2m
- Maximum continuous temperature: 40°C
- Traffic loading: Class D (HN-HO-72)
- Life: 100 years
- Chamber weight: Approximately 25kg for a 1.2m deep chamber (plus concrete LDR and DI cover)
Downloads
CAD Blocks
Approvals
ROMOLD DN625 PE pre-benched maintenance chambers are accepted by most New Zealand Councils, including:
- Far North District Council
- Whangarei District Council
- Kaipara District Council
- Watercare
- Auckland City Council
- Thames-Coromandel District Council (RITS)
- Hauraki District Council (RITS)
- Waikato District Council (RITS)
- Matamata-Piako District Council (RITS)
- Hamilton City Council (RITS)
- Waipa District Council (RITS)
- South Waikato District Council (RITS)
- Otorohanga District Council (RITS)
- Waitomo District Council (RITS)
- Rotorua Lakes Council (RITS)
- Taupo District Council (RITS)
- Tauranga City Council
- Western Bay of Plenty District Council
- Whakatane District Council
- Opotiki District Council
- Gisborne District Council
- Napier City Council
- Hastings District Council
- Central Hawkes Bay District Council
- Tararua District Council
- Palmerston North City Council
- New Plymouth District Council
- South Taranaki District Council
- Masterton District Council
- Carterton District Council
- Marlborough District Council
- Nelson City Council
- Tasman District Council
- Buller District Council
- Grey District Council
- Kaikoura District Council
- Hurunui District Council
- Waimakariri District Council
- Christchurch City Council
- Selwyn District Council
- Ashburton District Council
- Timaru District Council
- Mackenzie District Council
- Waimate District Council
- Waitaki District Council
- Queenstown Lakes District Council
- Central Otago District Council
- Dunedin City Council
- Clutha District Council
- Gore District Council
- Invercargill City Council
- Southland District Council
Contact us for approval certificates or confirmations.
More Information
More information on the ROMOLD DN625 Maintenance chamber can be found in the catalogues and installation instructions linked below.
For further enquiries please contact us.

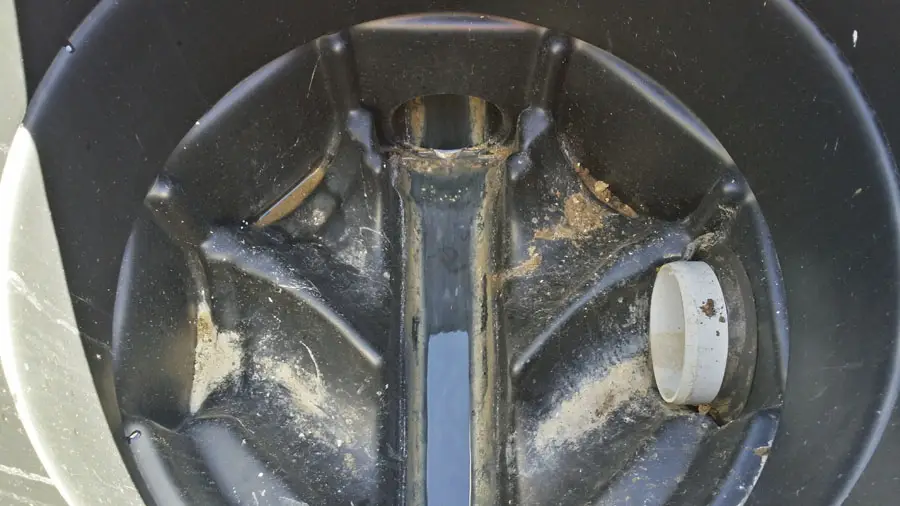

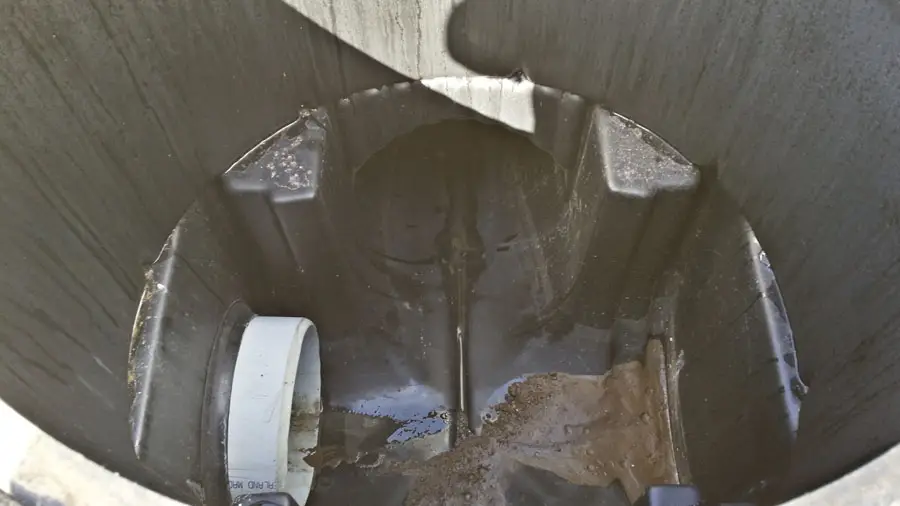

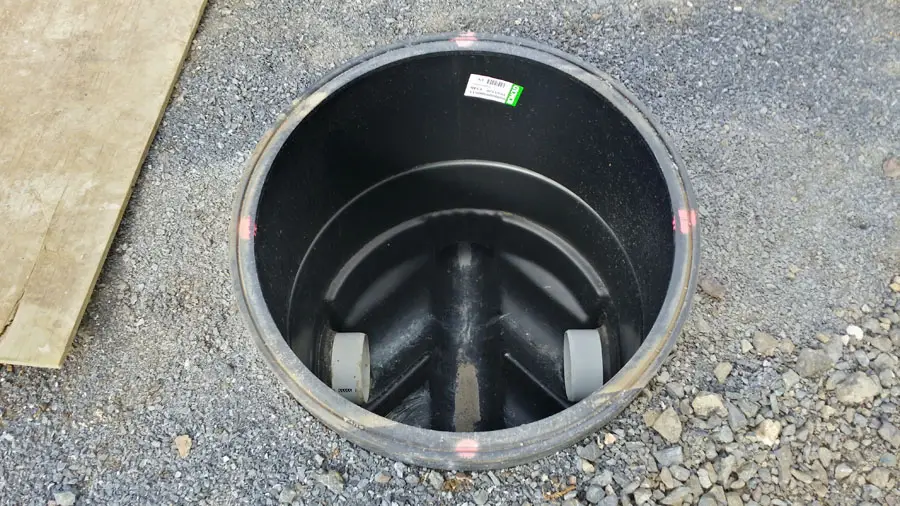

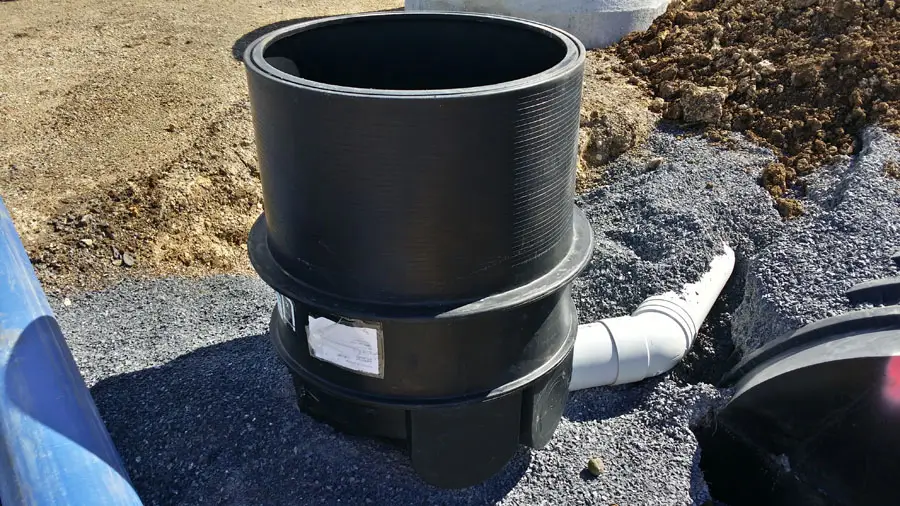

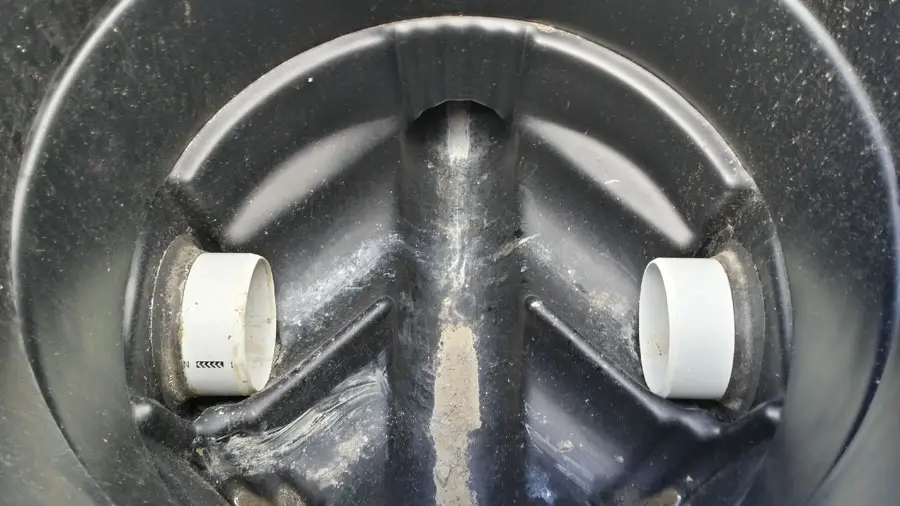

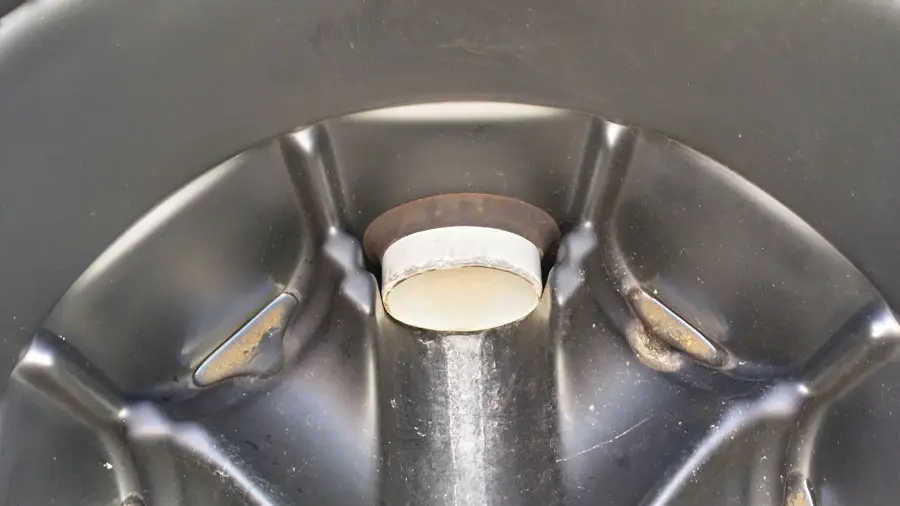

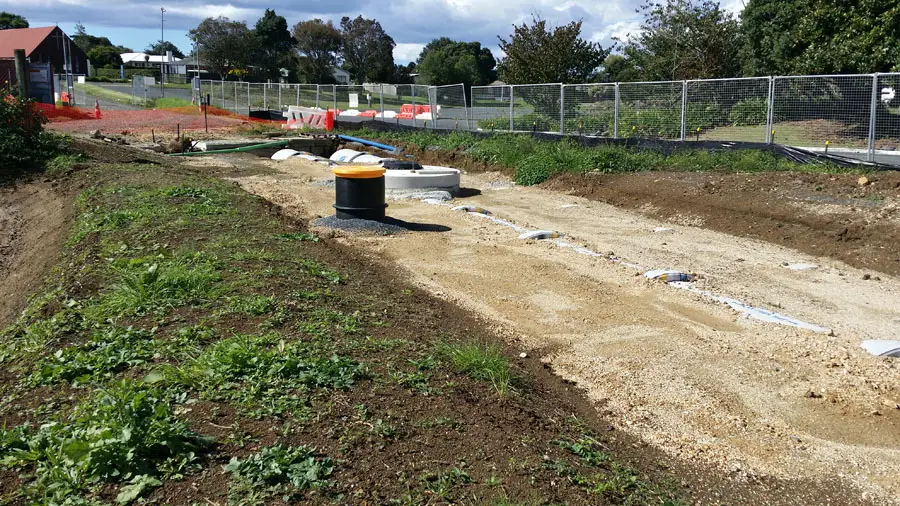

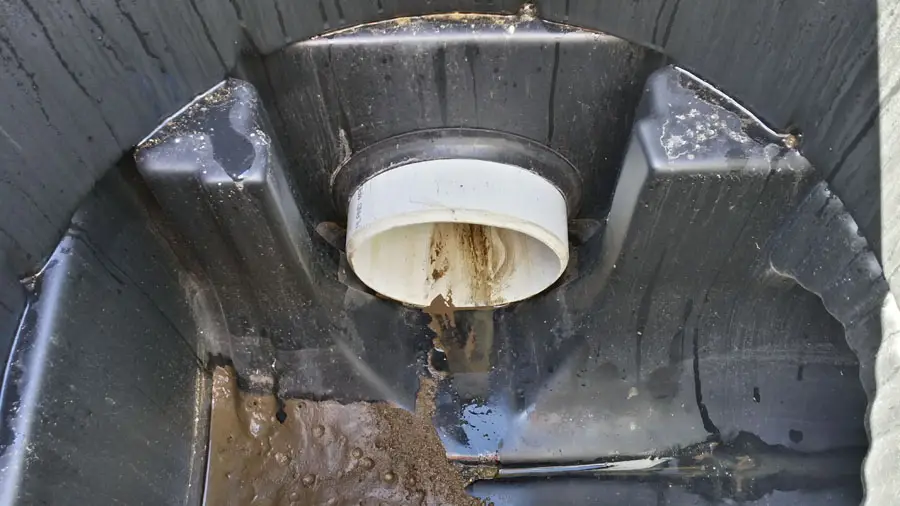

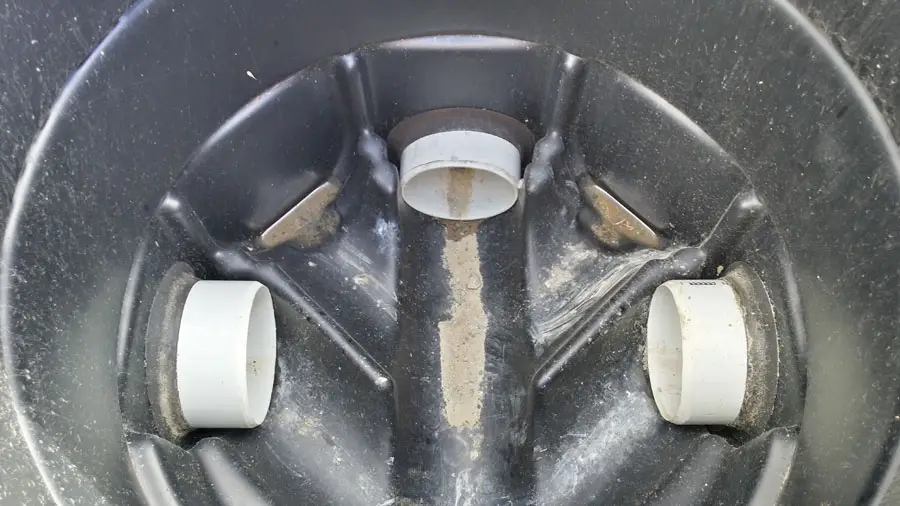

Photos from Site

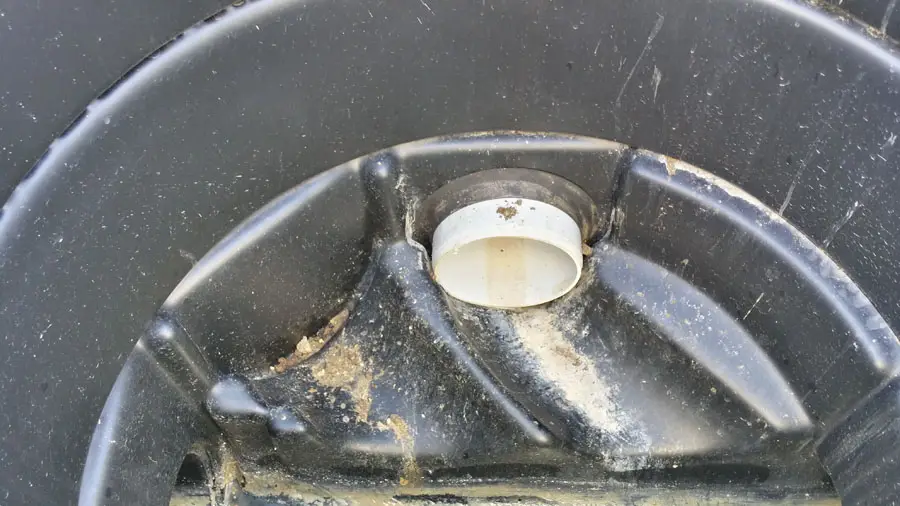

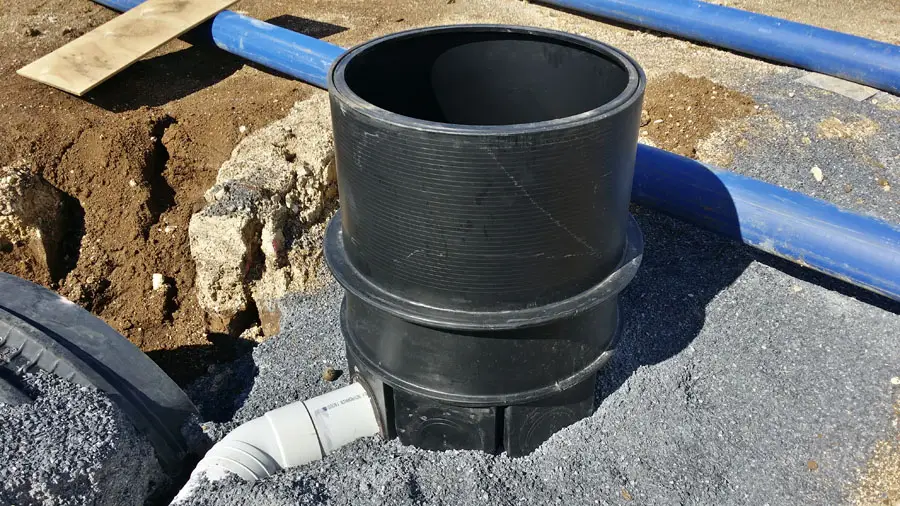

Drainmate, Christchurch (Christchurch City Council) – urban development
Drainmate, Christchurch (Christchurch City Council) – urban development
Drainmate, Christchurch (Christchurch City Council) – urban development

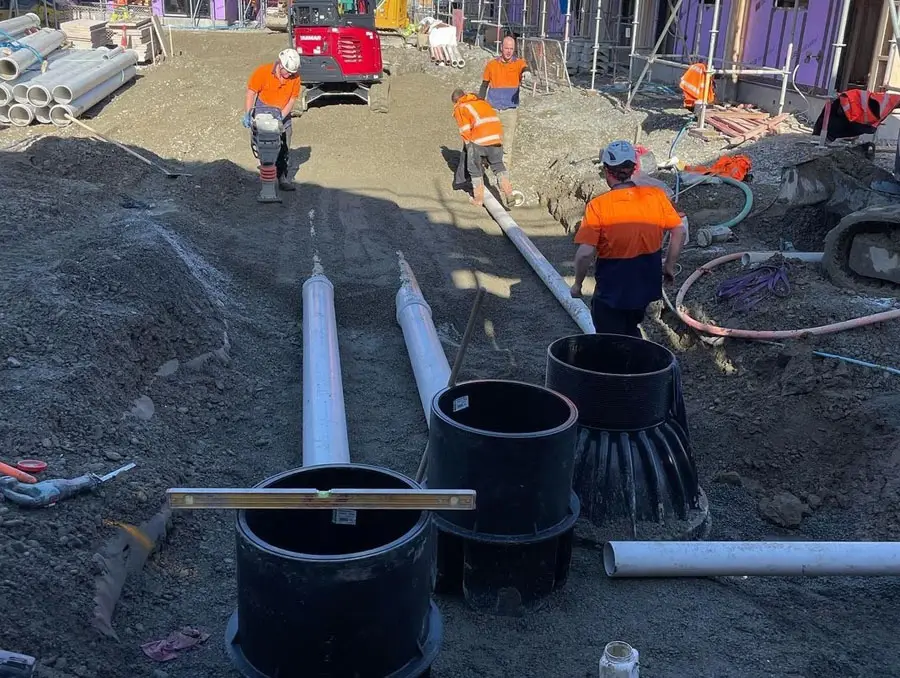

KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
KCL Civil, Kerikeri (Far North District Council) – retirement village development
