ROMOLD DN1000 Manhole Chamber
The ROMOLD DN1000 Plastic Manhole chamber is a masterpiece of German engineering. Developed from over 20 years of experience gained in the European market, these plastic manholes are as refined as they are functional.
Suitable for both wastewater and storm water applications, the manhole chamber provides the flexibility required to construct a pipeline that performs well into the future.
The DN1000 Plastic Manhole Chamber from ROMOLD is a modular system designed to be easy to install, and to specify!
Features
- Modular construction
- Pre-benched bases with many configurations available
- Inlet and outlet RRJ sockets with angular and grade tolerance
- Options for DN150 – DN375 PVC pipe sizes in stock bases
- Custom manhole solutions for other pipe sizes or materials
- External drop pipes can easily be accommodated

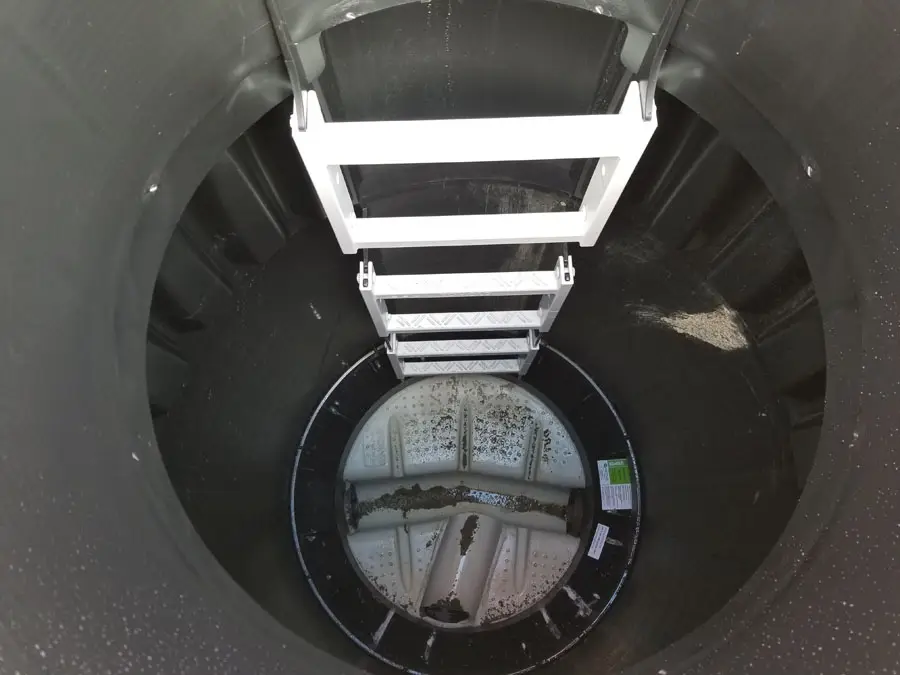

- Includes PP ladders as standard
- Height adjustable to the nearest cm
- Approved for HN-HO-72 traffic loading
- Approved to EN 13598-2
Specifications
- Material: Polypropylene (custom polyethylene chambers are available)
- Seals: EPDM
- Ladder: Glass-filled polypropylene
- Diameter : 1000mm internal
- Throat: 600mm clear opening
- Pipe sizes: DN150 – DN375 PVC (customised pipe size/type solutions also available)
- Angular tolerance: ±7.5°
- Grade tolerance: ±6.5%
- Maximum depth: 6m
- Maximum groundwater: 5m
- Maximum continuous temperature: 60°C
- Traffic loading: Class D (HN-HO-72)
- Life: 100 years
- Chamber weight: Approximately 115kg for a 2m deep manhole (plus concrete LDR and DI cover)
Downloads
- Specifications Sheet
- Installation Manual
- Parts List Drawing
- Product Drawings
- External drop pipe drawing
- Specification Template
CAD Blocks
Approvals
ROMOLD DN1000 PP pre-benched manhole chambers are accepted by most New Zealand Councils, including:
- Far North District Council
- Whangarei District Council
- Kaipara District Council
- Watercare
- Auckland City Council
- Thames-Coromandel District Council (RITS)
- Hauraki District Council (RITS)
- Waikato District Council (RITS)
- Matamata-Piako District Council (RITS)
- Hamilton City Council (RITS)
- Waipa District Council (RITS)
- South Waikato District Council (RITS)
- Otorohanga District Council (RITS)
- Waitomo District Council (RITS)
- Rotorua Lakes Council (RITS)
- Taupo District Council (RITS)
- Tauranga City Council
- Western Bay of Plenty District Council
- Whakatane District Council
- Opotiki District Council
- Gisborne District Council
- Napier City Council
- Hastings District Council
- Central Hawkes Bay District Council
- Tararua District Council
- Palmerston North City Council
- New Plymouth District Council
- South Taranaki District Council
- Masterton District Council
- Carterton District Council
- Marlborough District Council
- Nelson City Council
- Tasman District Council
- Buller District Council
- Grey District Council
- Kaikoura District Council
- Hurunui District Council
- Waimakariri District Council
- Christchurch City Council
- Selwyn District Council
- Ashburton District Council
- Timaru District Council
- Mackenzie District Council
- Waimate District Council
- Waitaki District Council
- Queenstown Lakes District Council
- Central Otago District Council
- Dunedin City Council
- Clutha District Council
- Gore District Council
- Invercargill City Council
- Southland District Council
Contact us for approval certificates or confirmations.
More Information
More information on the ROMOLD DN1000 Plastic Manhole chamber can be found in the catalogues and installation instructions linked below.
For further enquiries please contact us.
Photos from Site

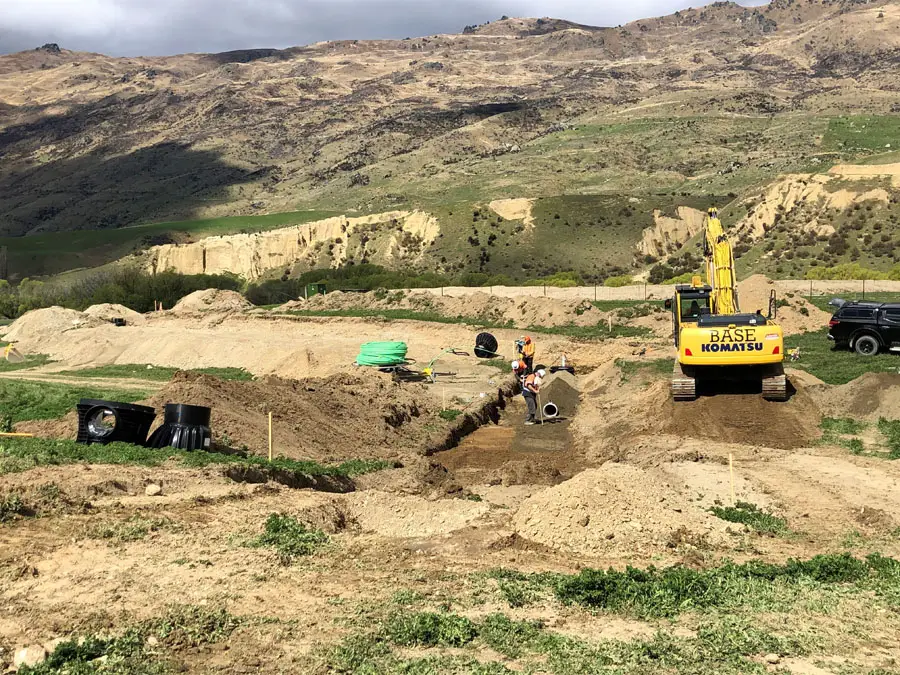

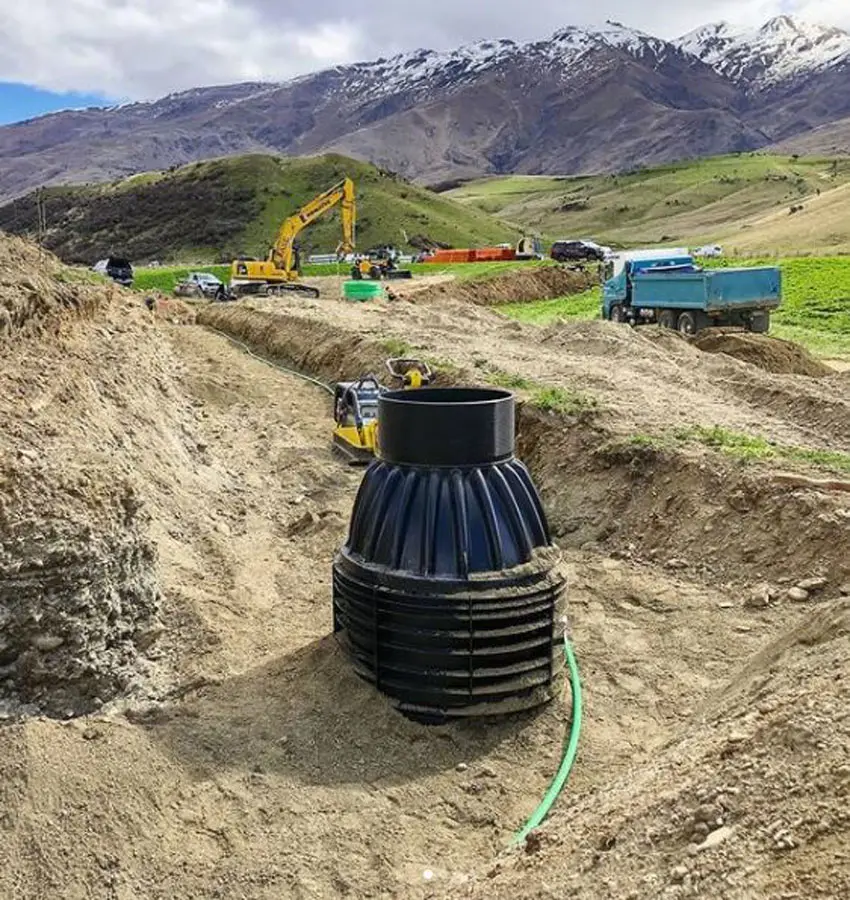

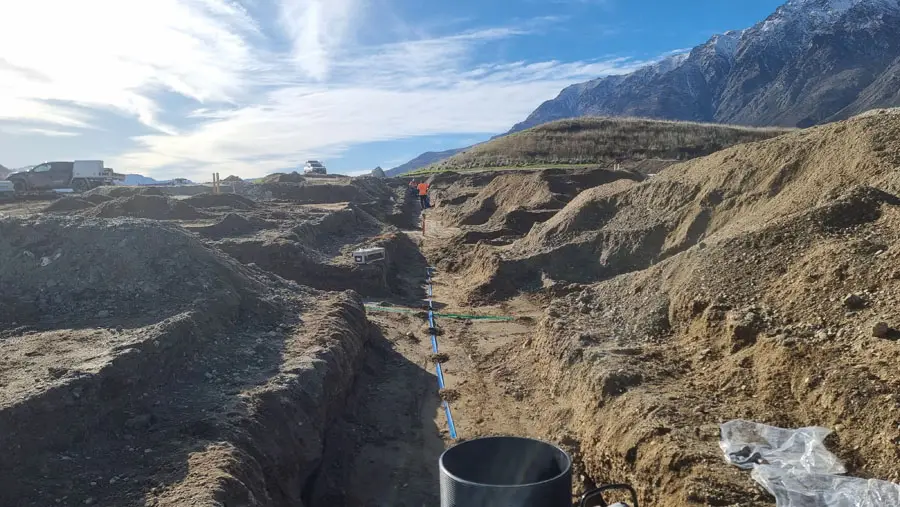

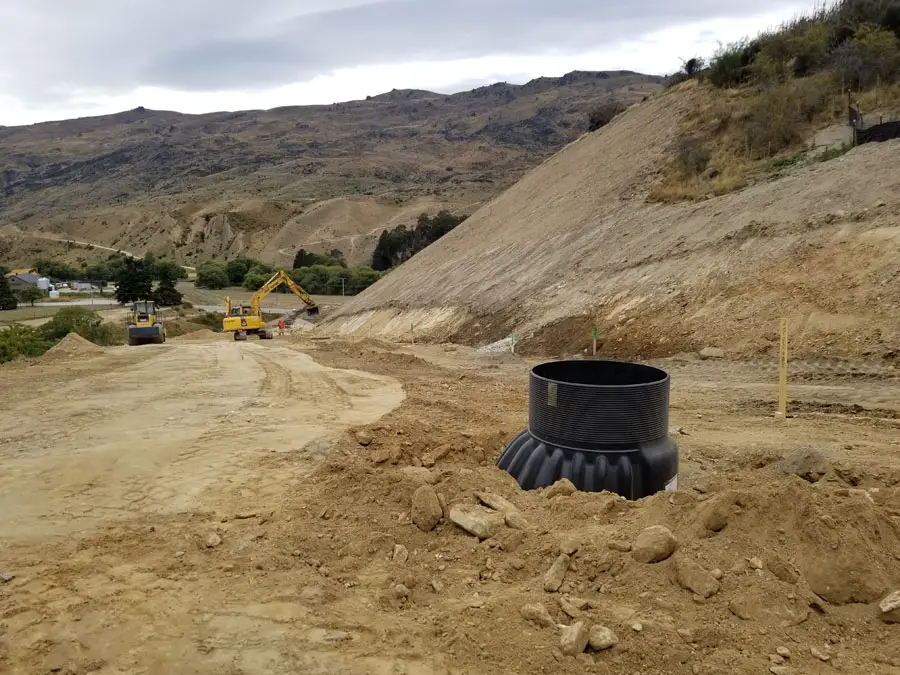

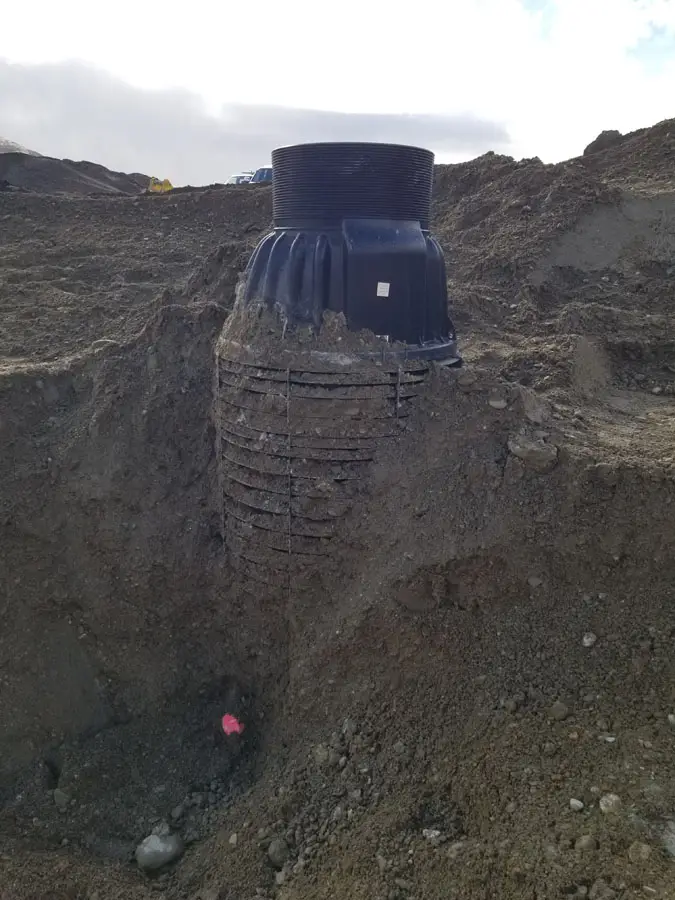

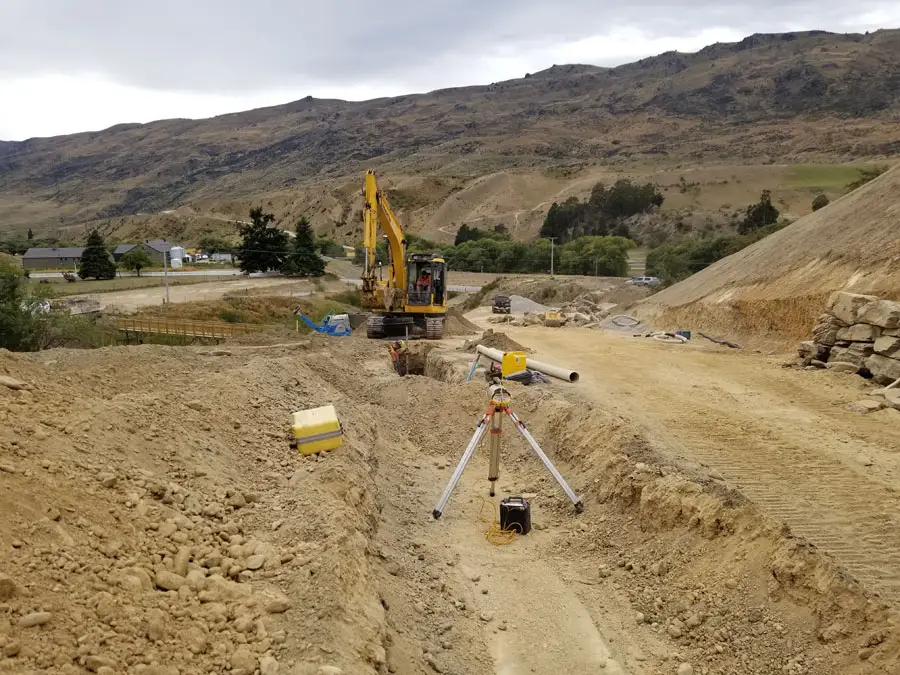

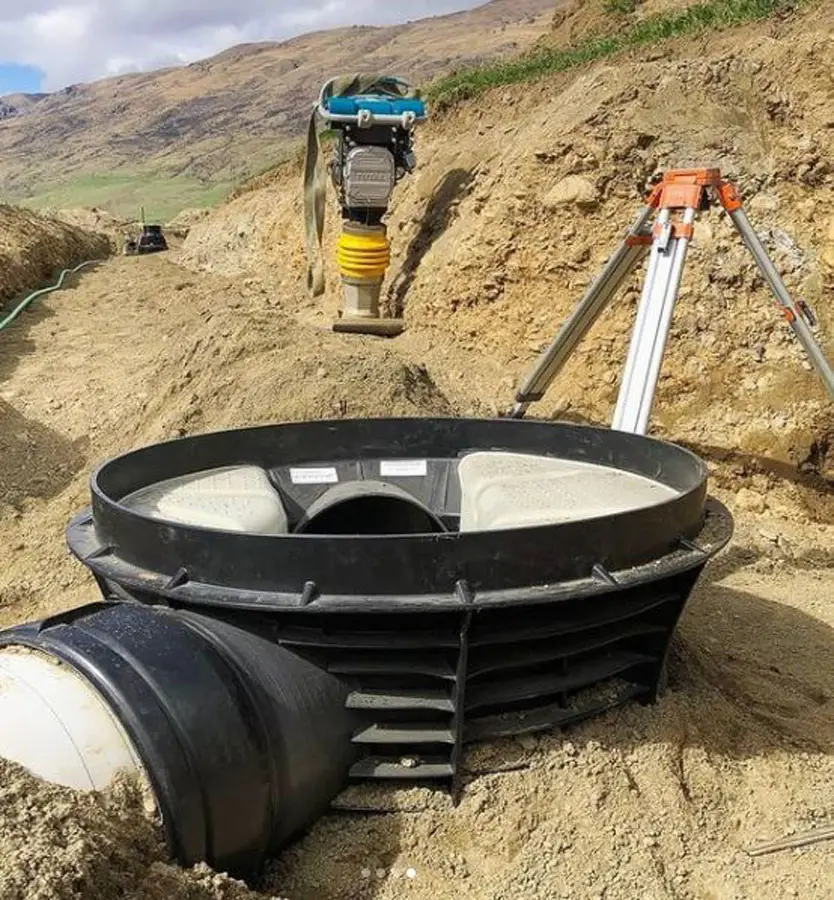

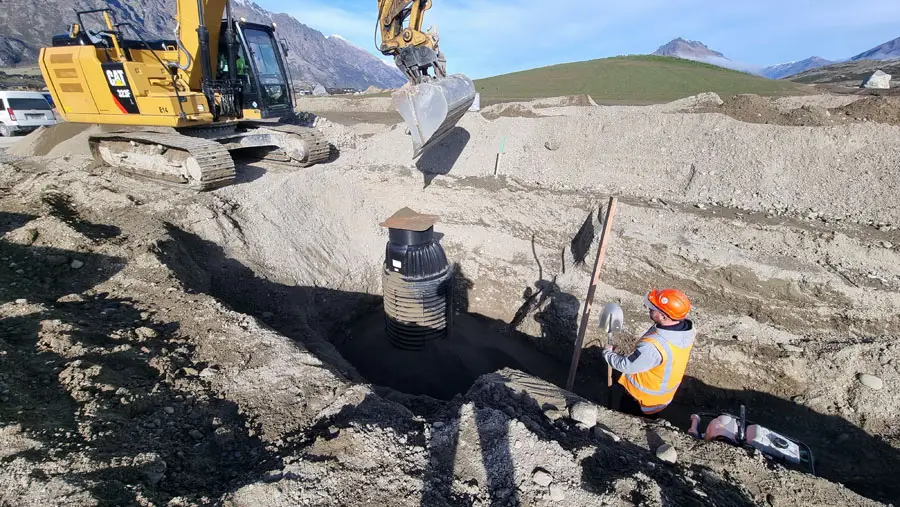

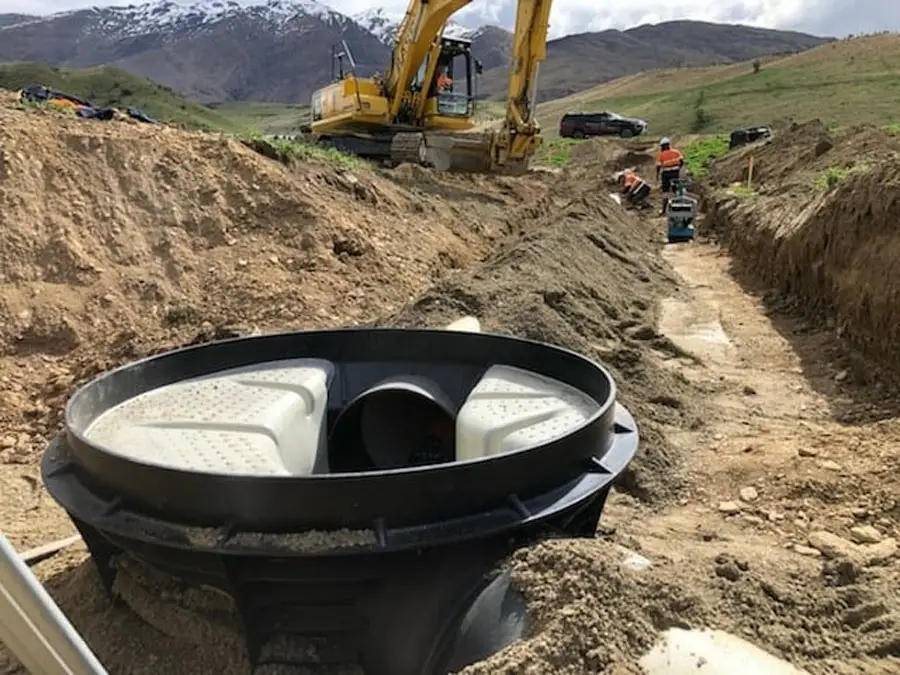

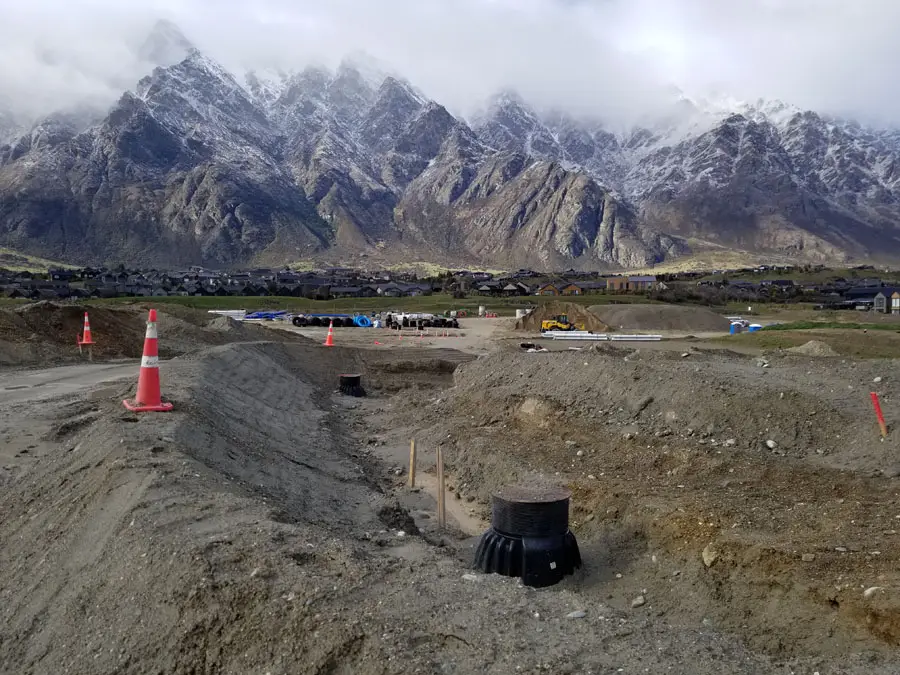

Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer
Base Contracting, Cardrona (Queenstown Lakes District Council) – Trunk Sewer

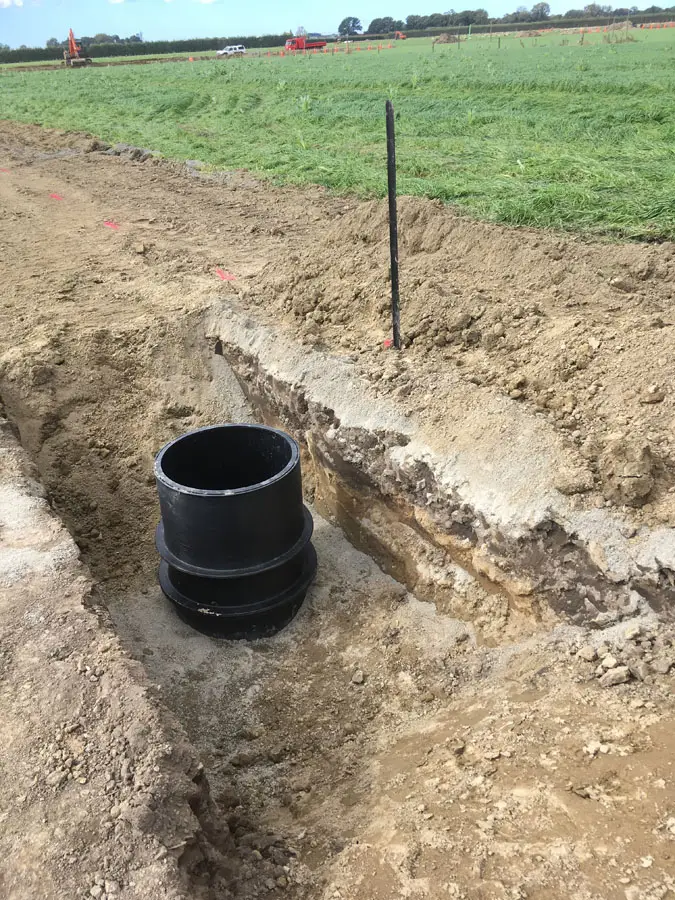

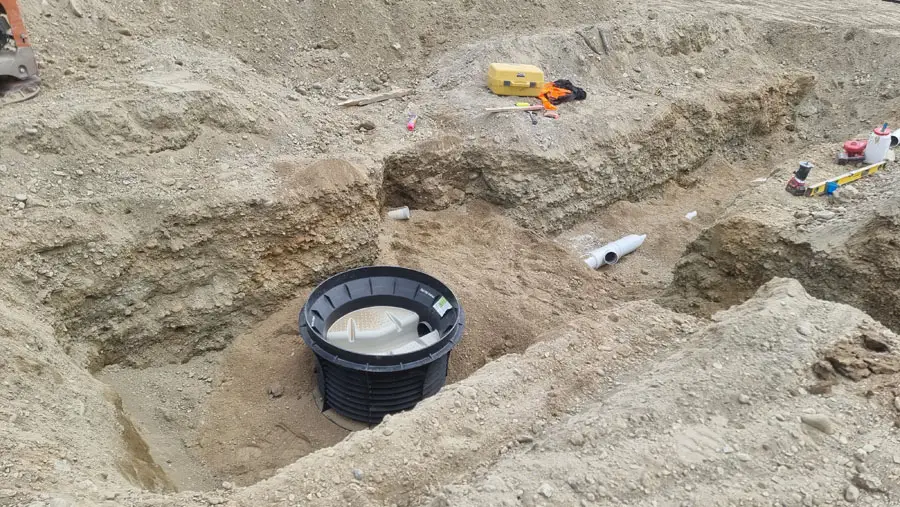

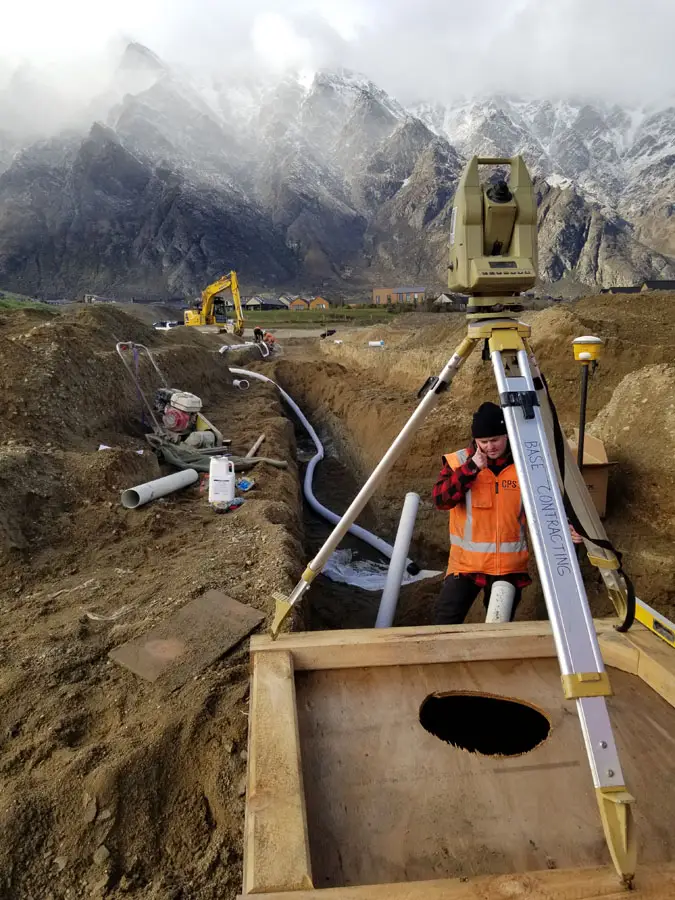

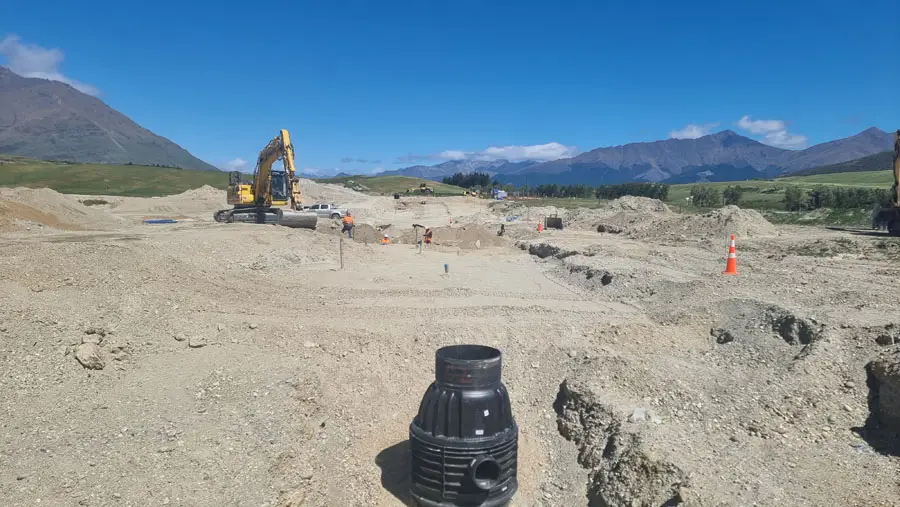

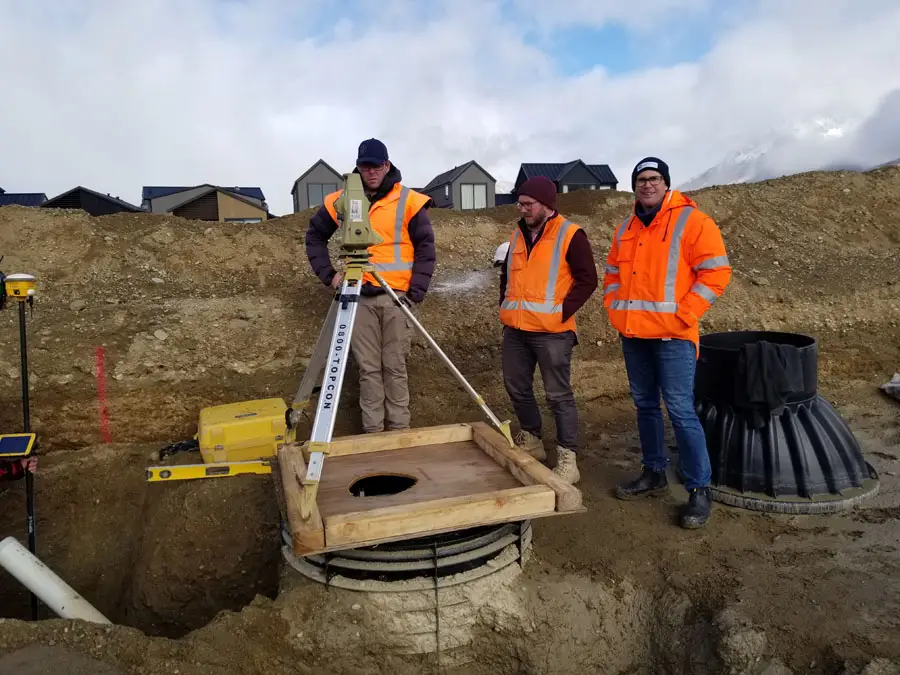

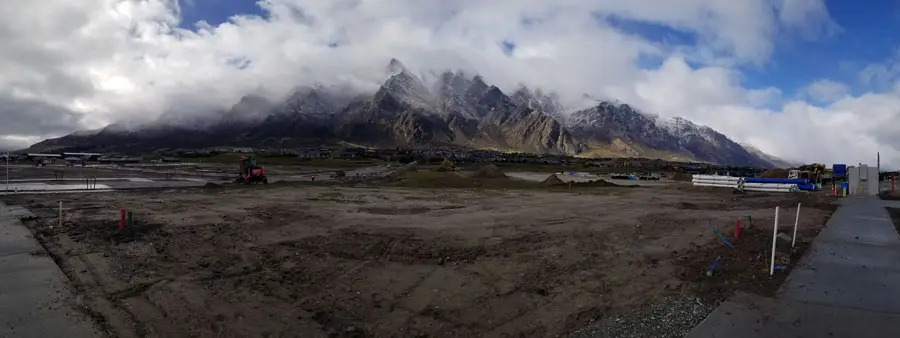

Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision
Base Contracting, Hanley Farms (Queenstown Lakes District Council) – greenfields subdivision

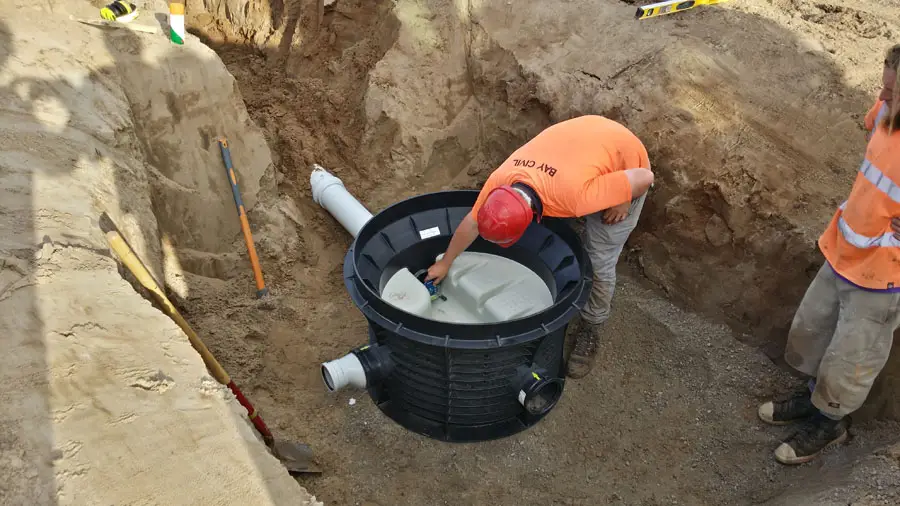

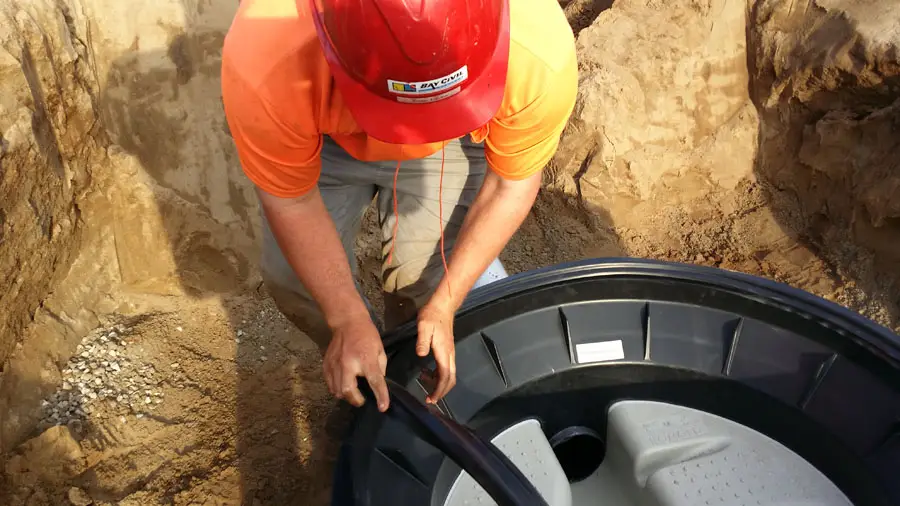

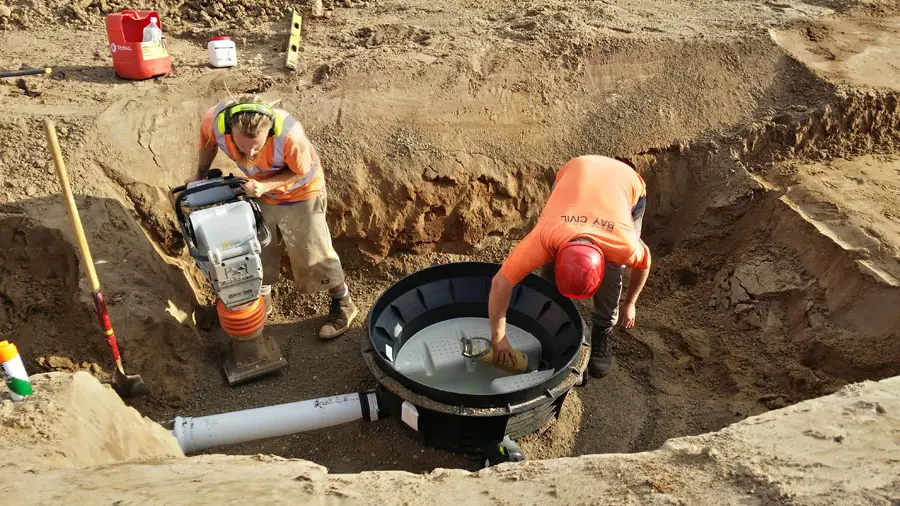

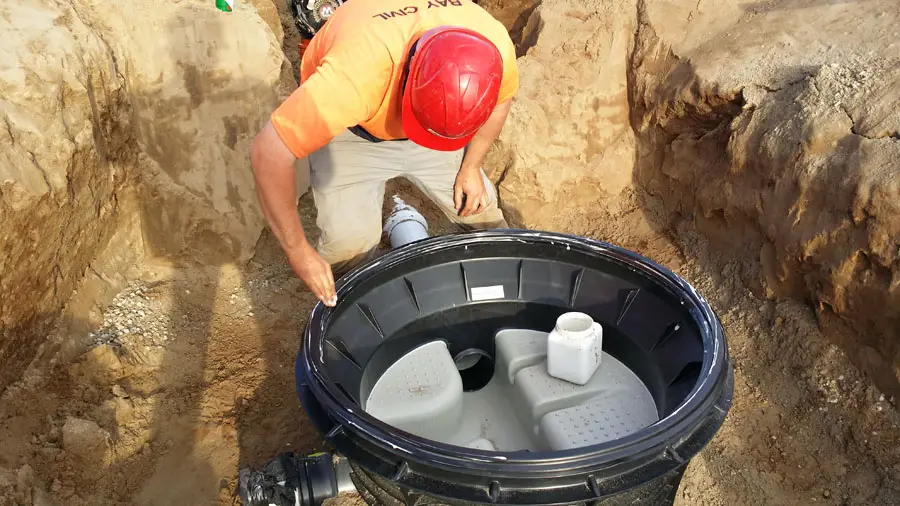

Bay Civil, Papamoa (Tauranga City Council) – greenfields subdivision
Bay Civil, Papamoa (Tauranga City Council) – greenfields subdivision
Bay Civil, Papamoa (Tauranga City Council) – greenfields subdivision
Bay Civil, Papamoa (Tauranga City Council) – greenfields subdivision
Bay Civil, Papamoa (Tauranga City Council) – greenfields subdivision
Bay Civil, Papamoa (Tauranga City Council) – greenfields subdivision

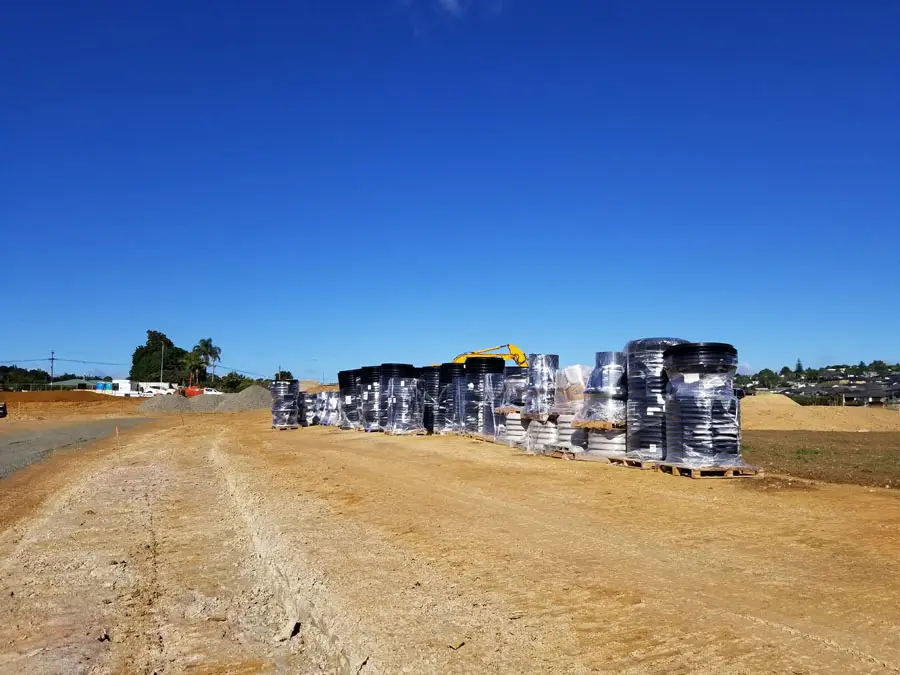

Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision
Broadspectrum/Ventia, Totara Parklands (Whangarei District Council) – greenfields subdivision

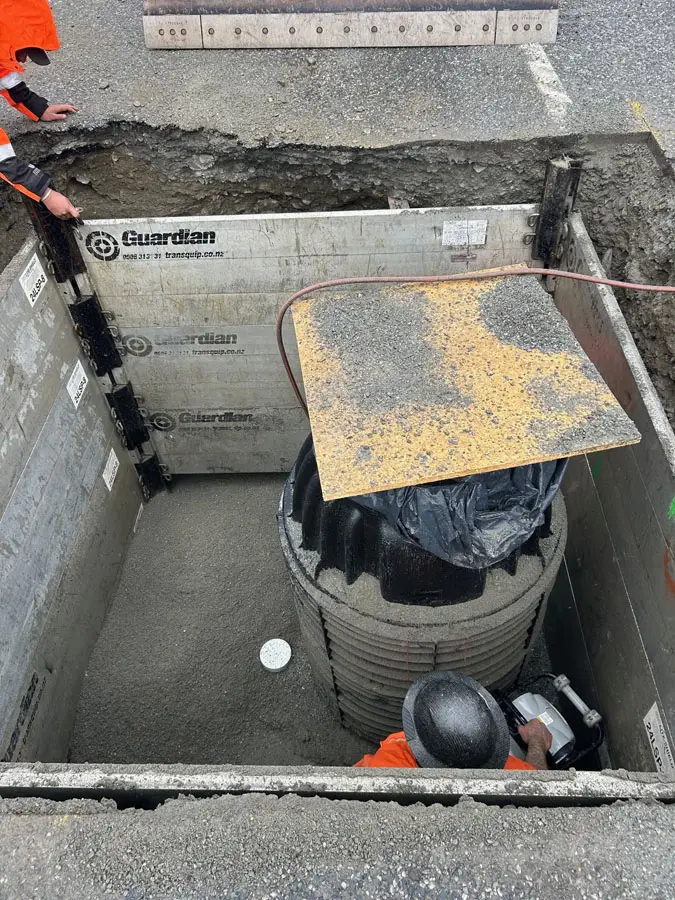

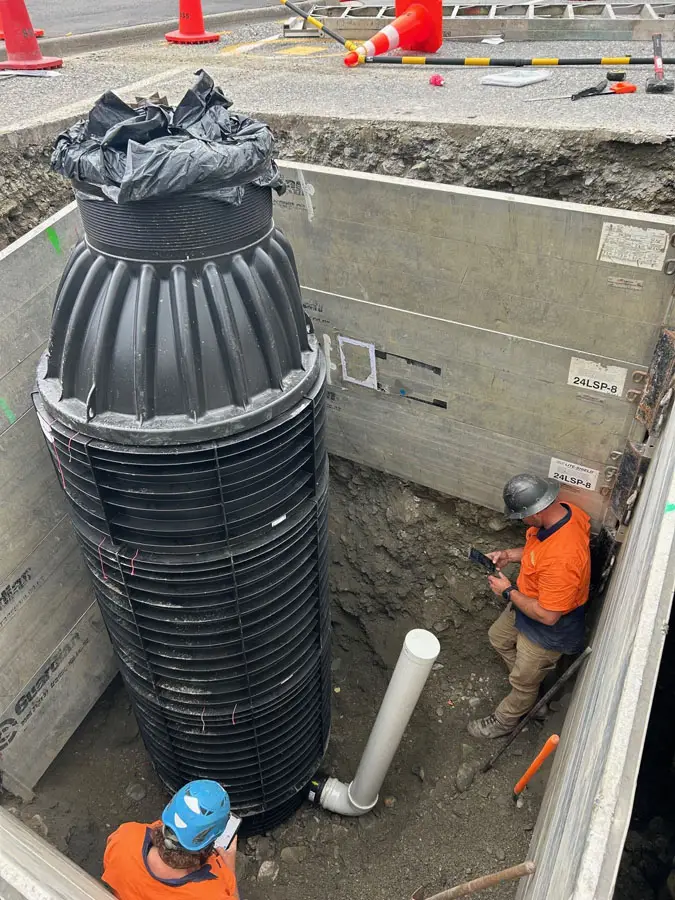

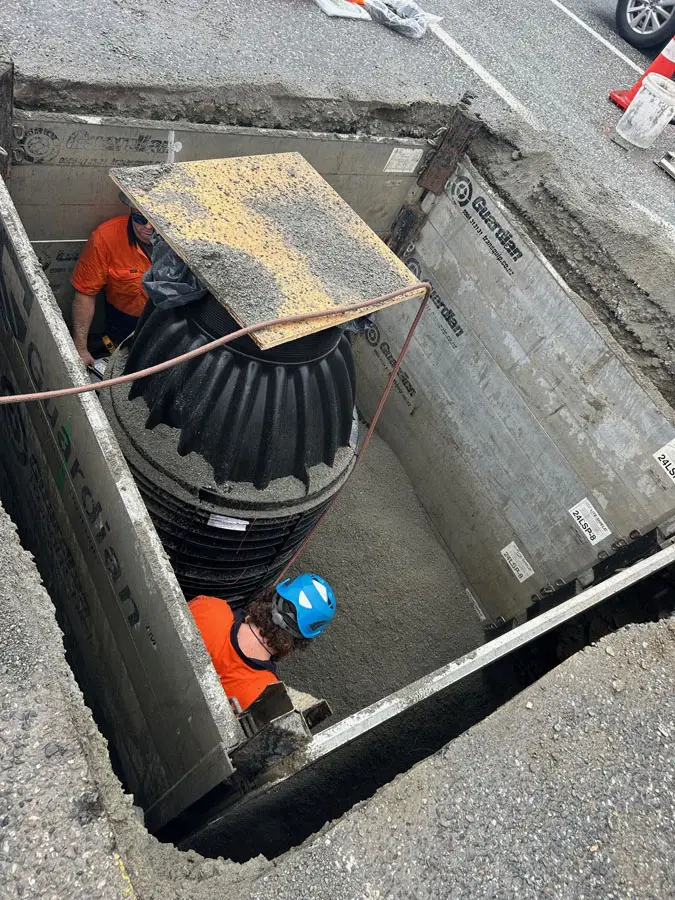

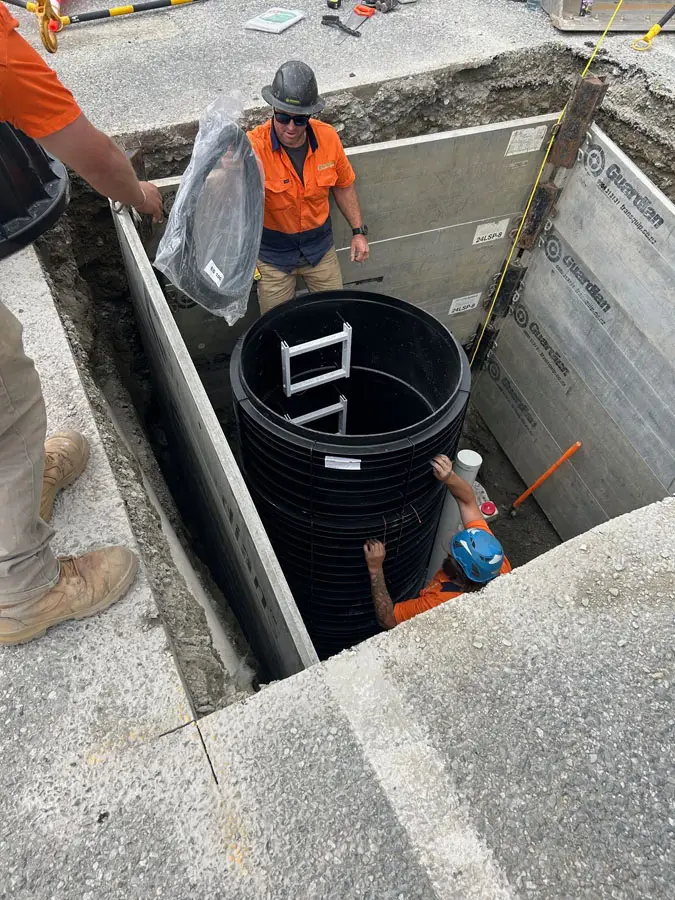

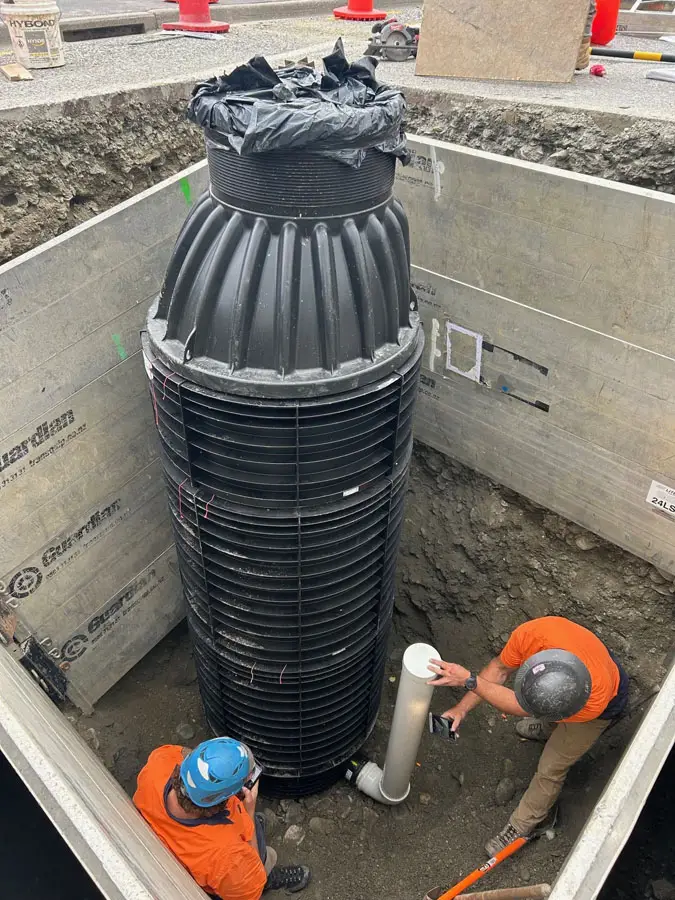

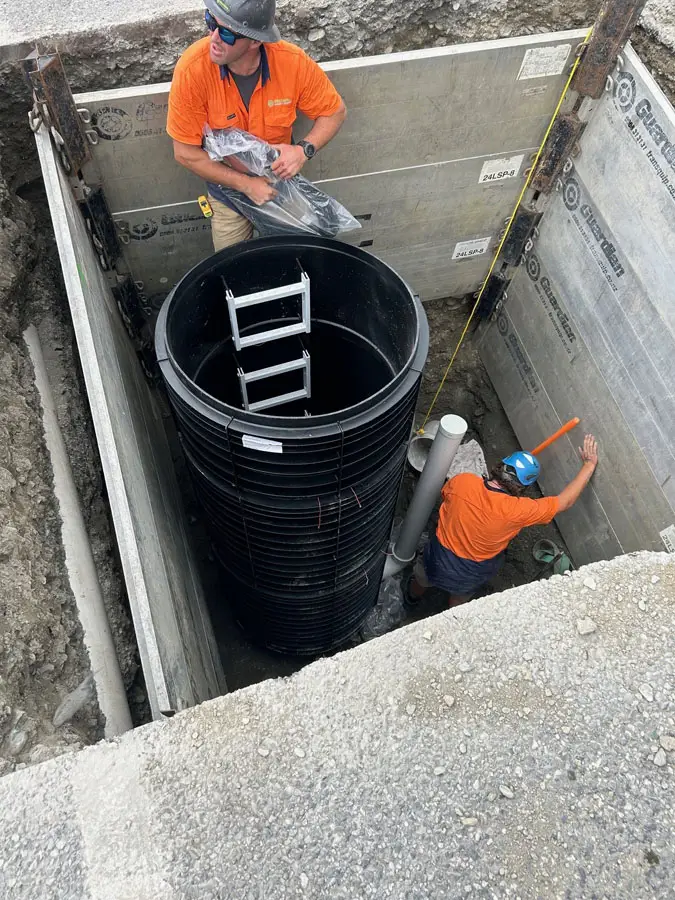

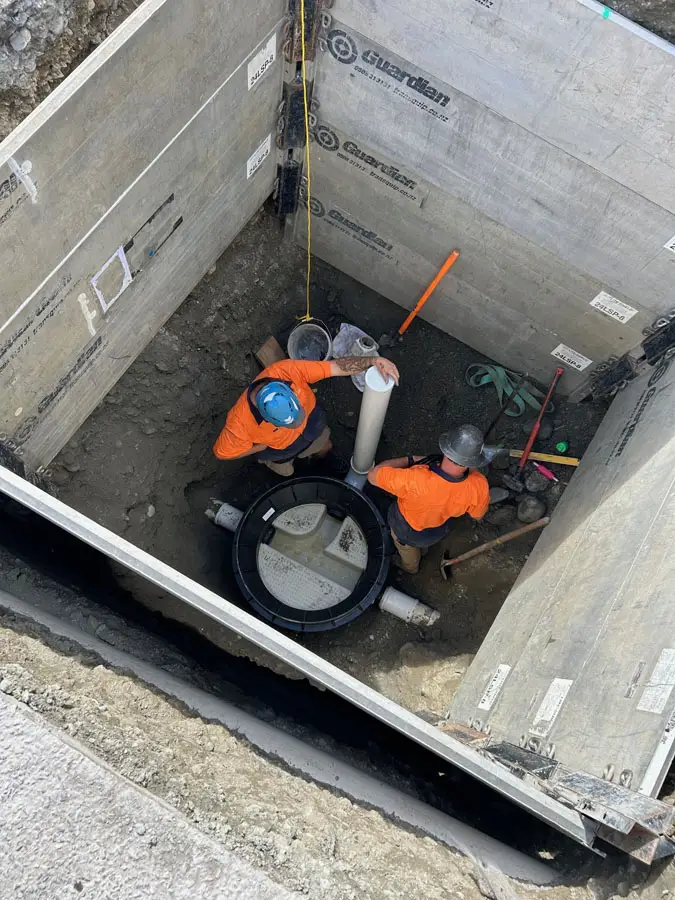

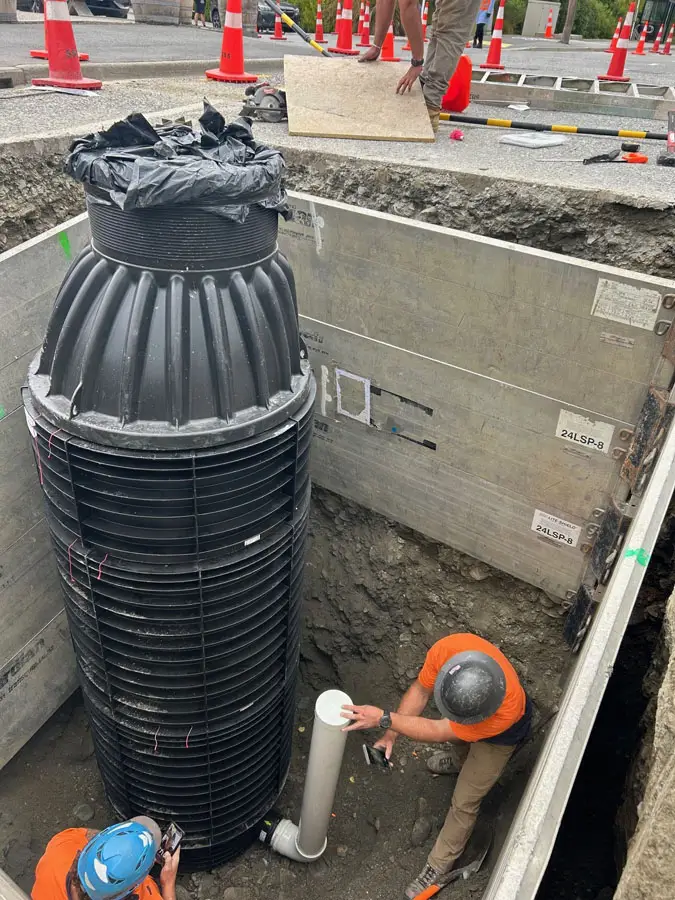

DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown
DN1000 Manhole Faulks External Drop Pipe Chamber Queenstown

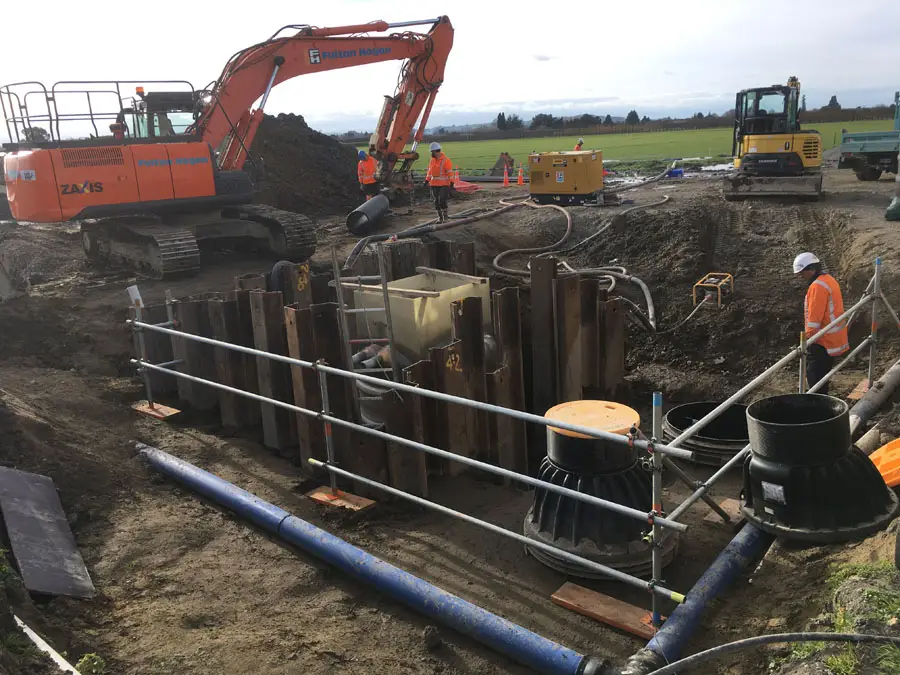

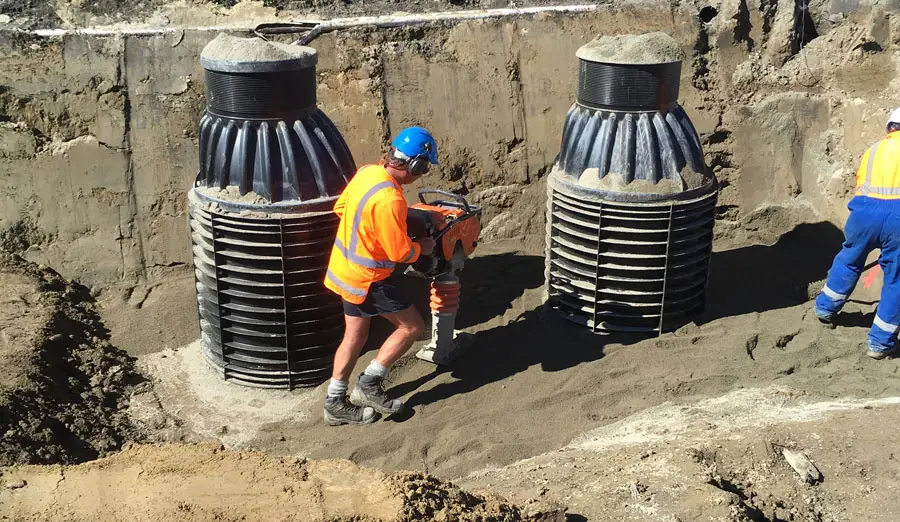

Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services
Fulton Hogan, Hastings (Hastings District Council) – Omahu road bulk water services

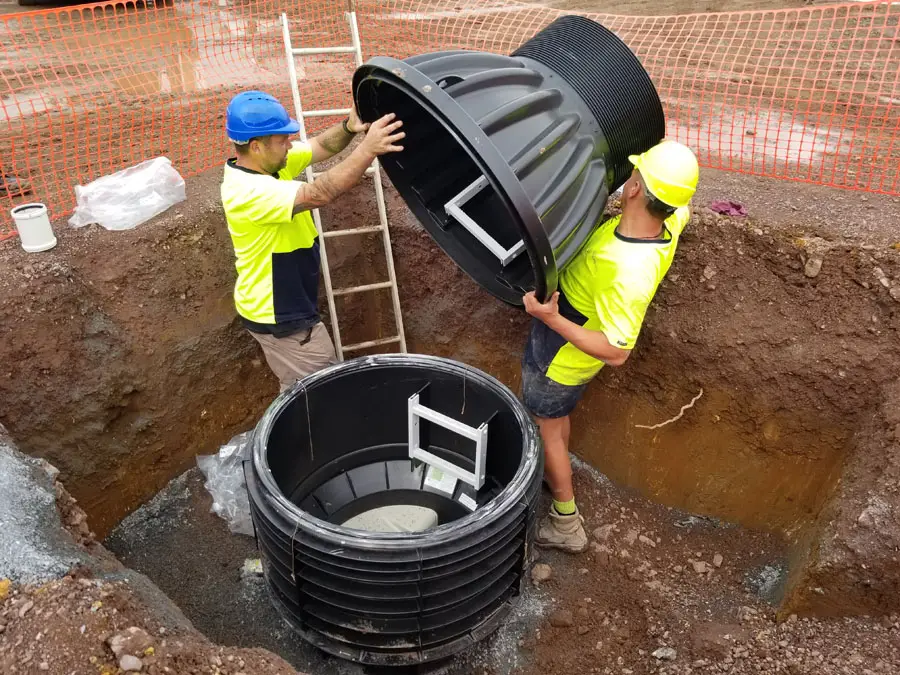

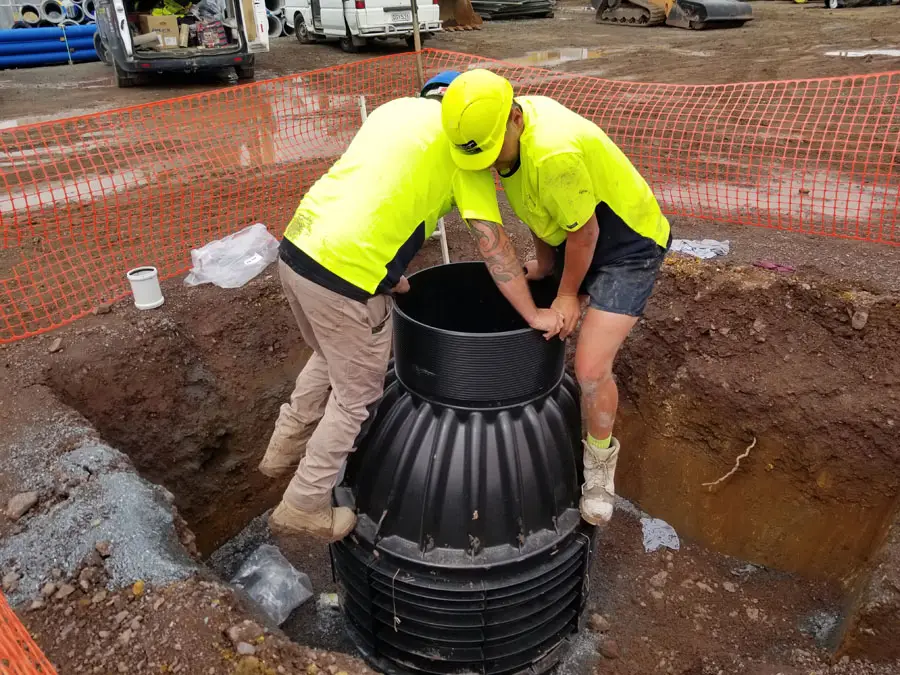

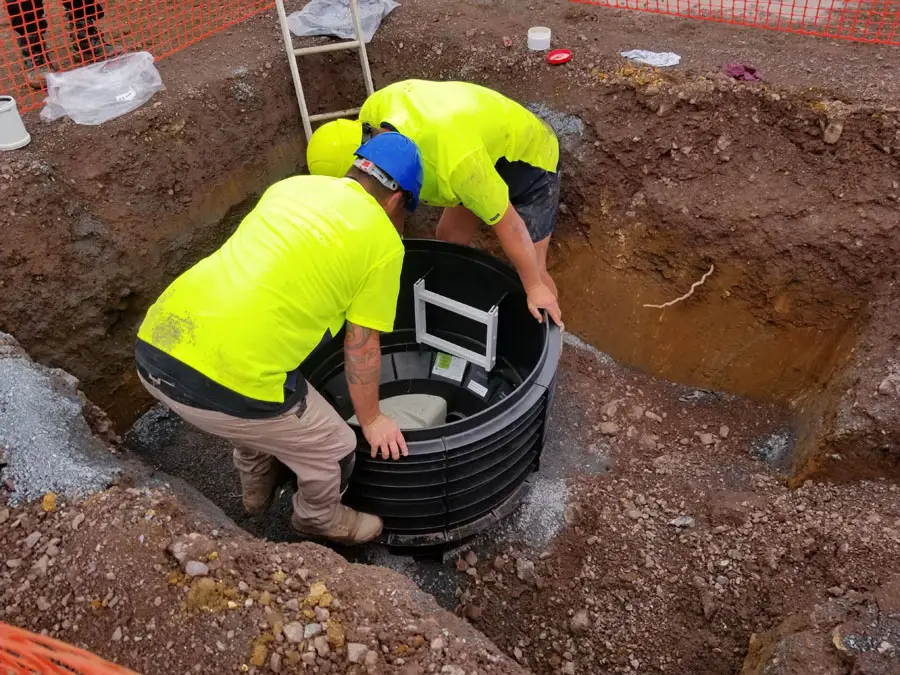

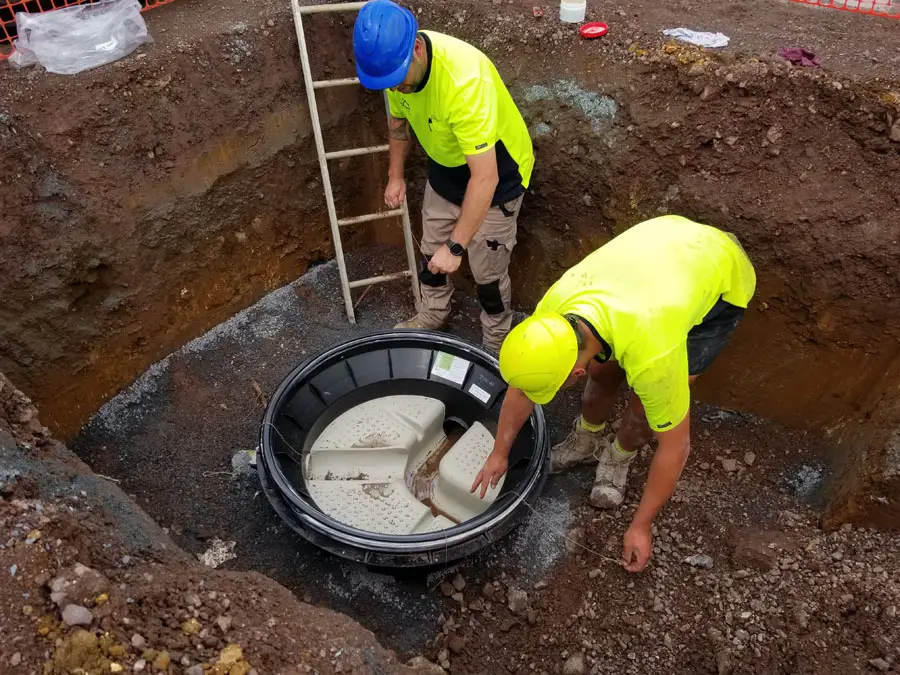

KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development
KCL Civil/BOIPG, Kerikeri (Far North District Council) – retirement village development

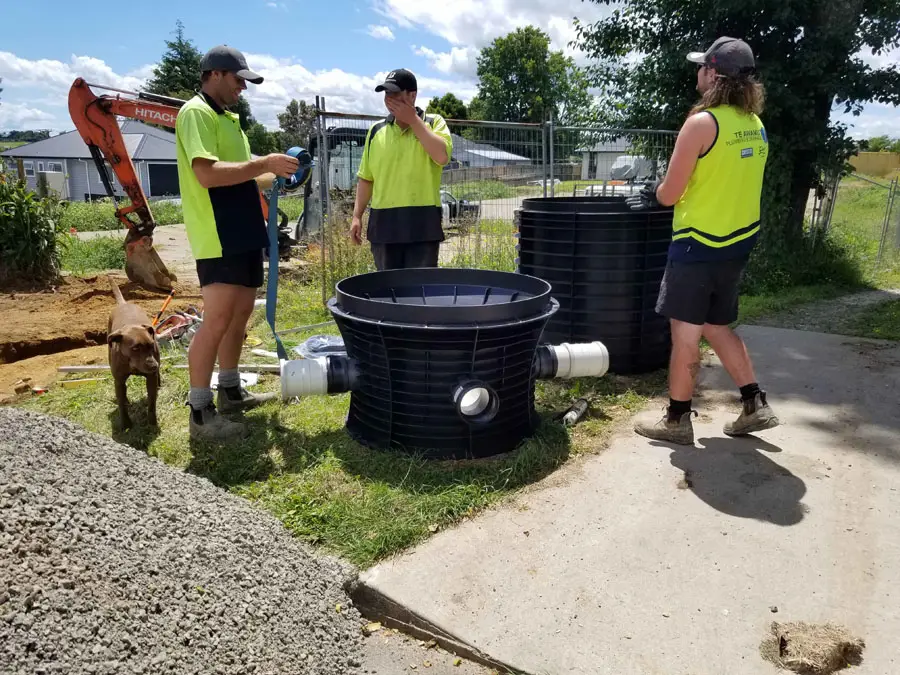

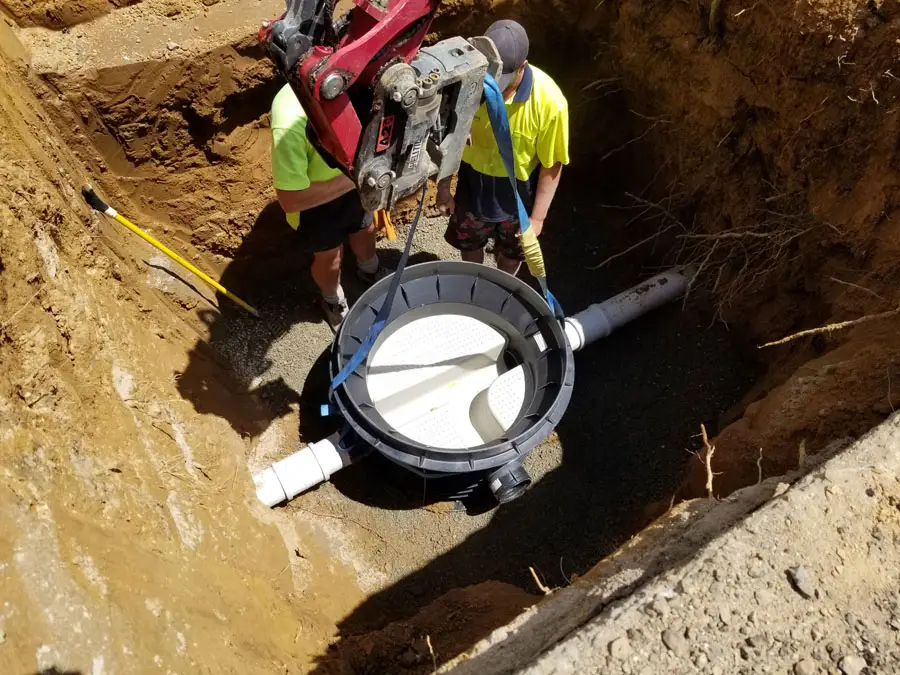

Te Awamutu Plumbing, Kihikihi (Waipa District Council) – cut in to live sewer
Te Awamutu Plumbing, Kihikihi (Waipa District Council) – cut in to live sewer
Te Awamutu Plumbing, Kihikihi (Waipa District Council) – cut in to live sewer
Te Awamutu Plumbing, Kihikihi (Waipa District Council) – cut in to live sewer
Te Awamutu Plumbing, Kihikihi (Waipa District Council) – cut in to live sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
Taranaki Civil Construction, Waitara (New Plymouth District Council) – Area Q trunk sewer
