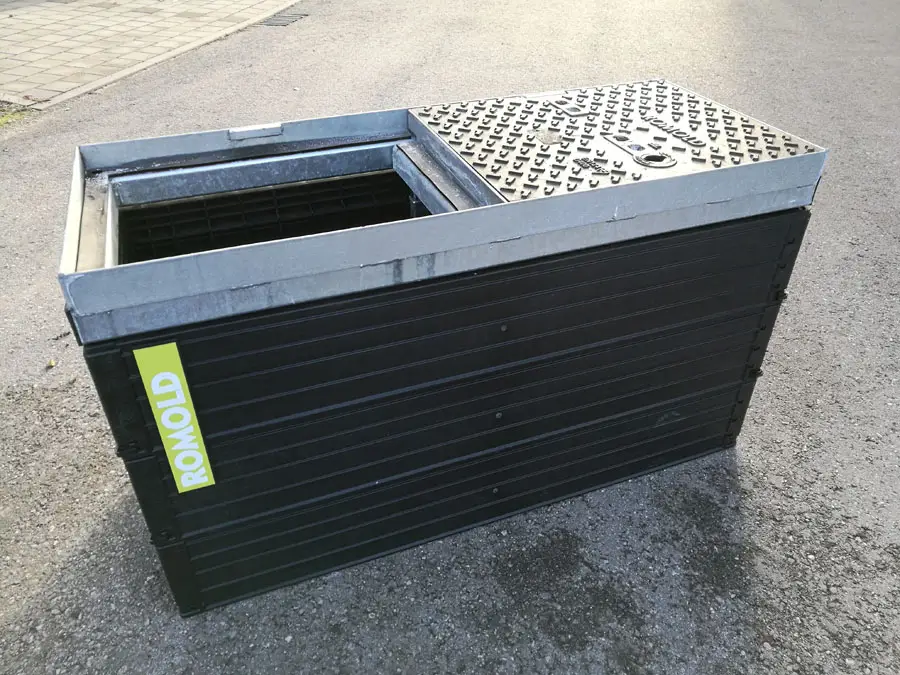

ROMOLD Rom-Box Modular Access Chamber

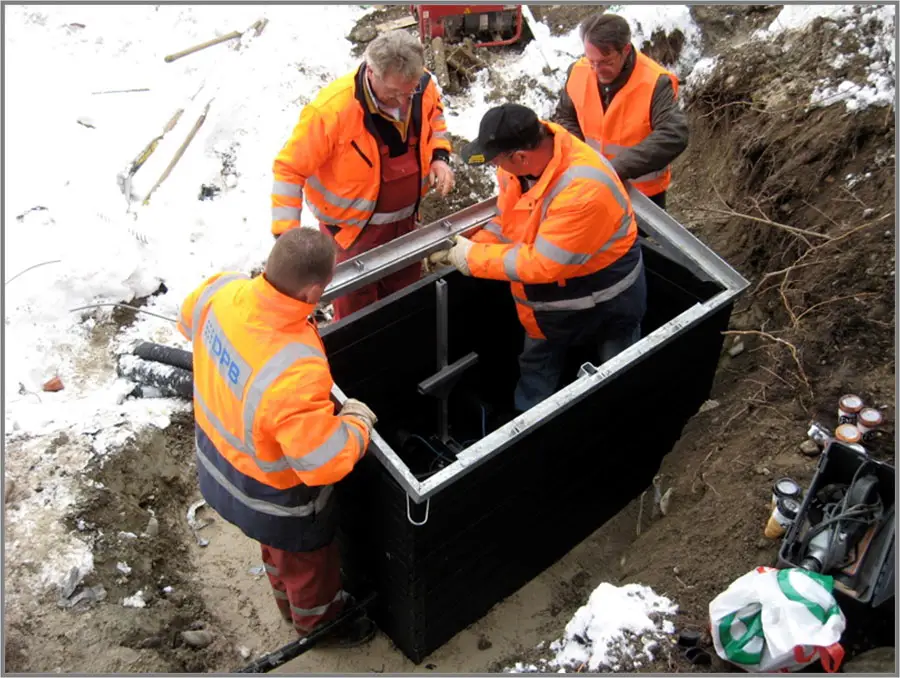

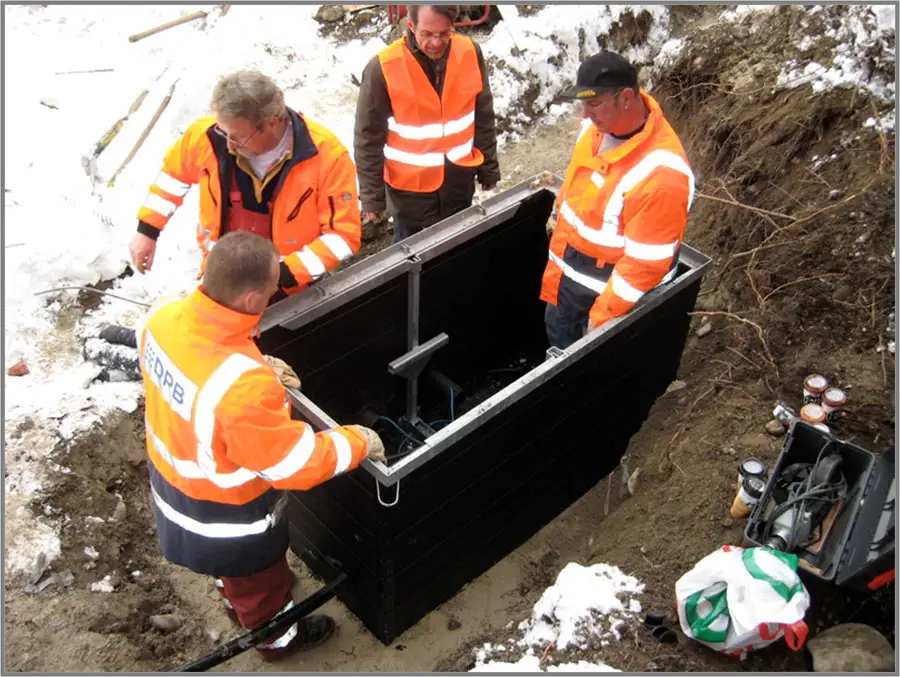

ROMOLD’s modular access chamber, the ROM-Box, is a novel solution for sub-surface trafficable access chambers. Suitable for a variety of applications the Rom-Box has obvious advantages during installation.

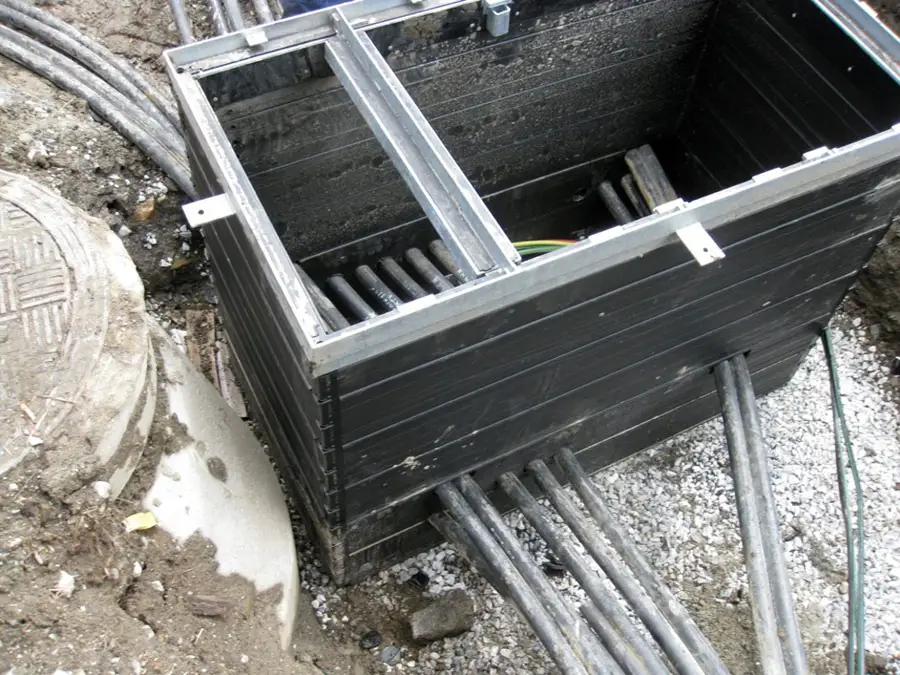

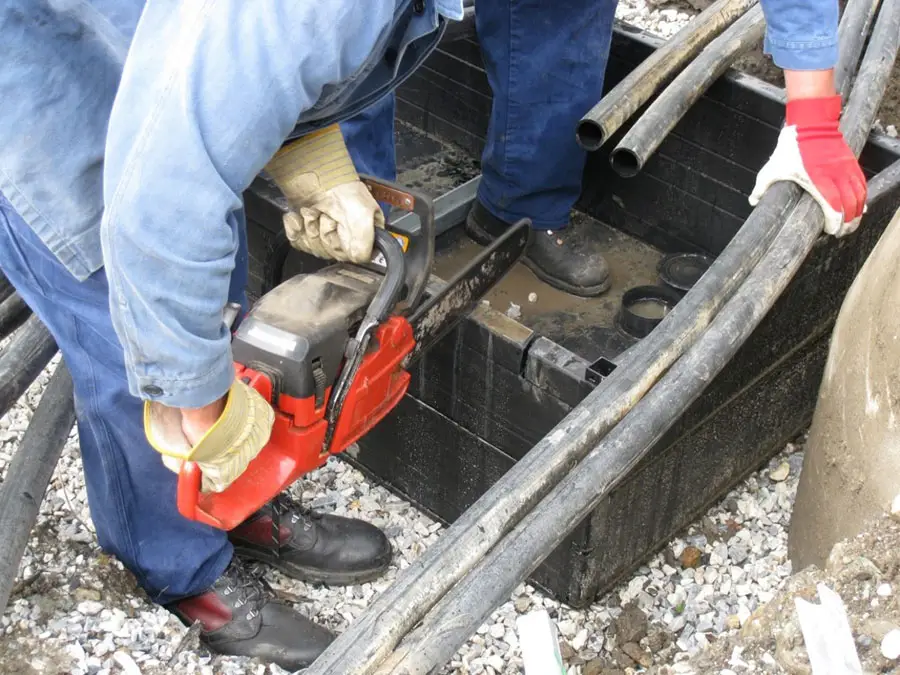

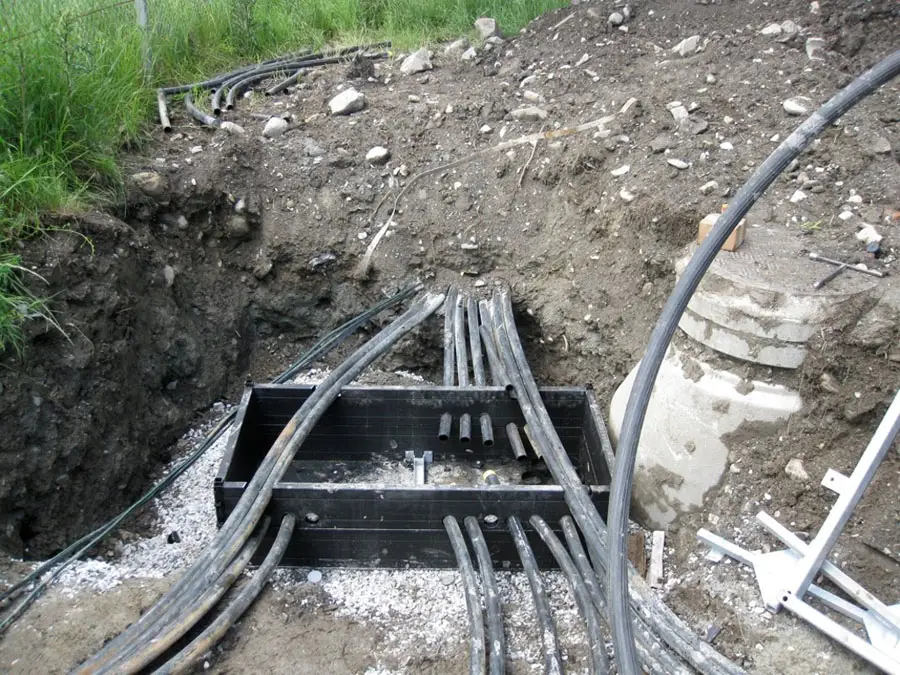

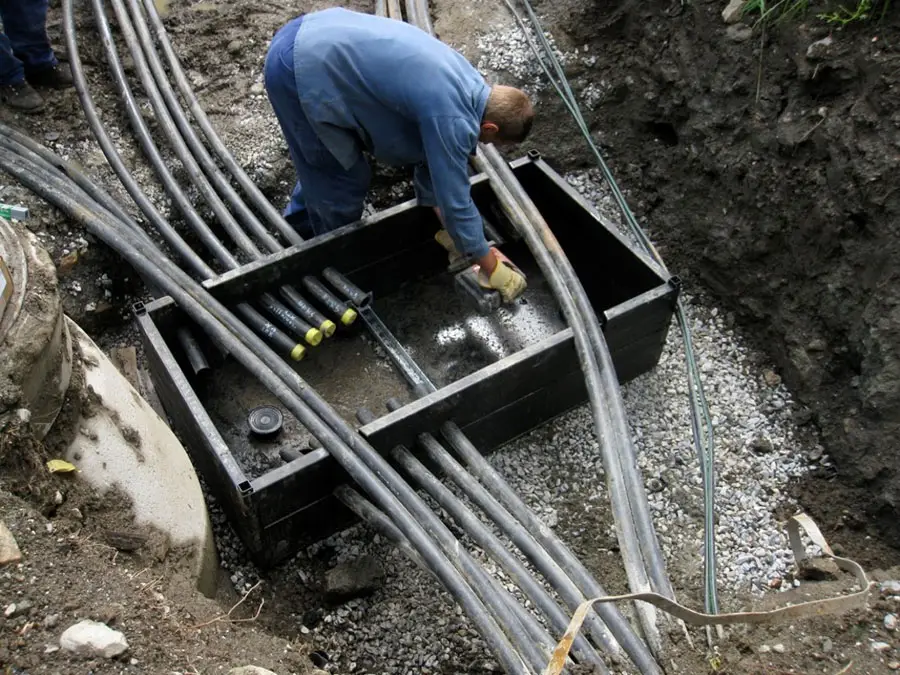

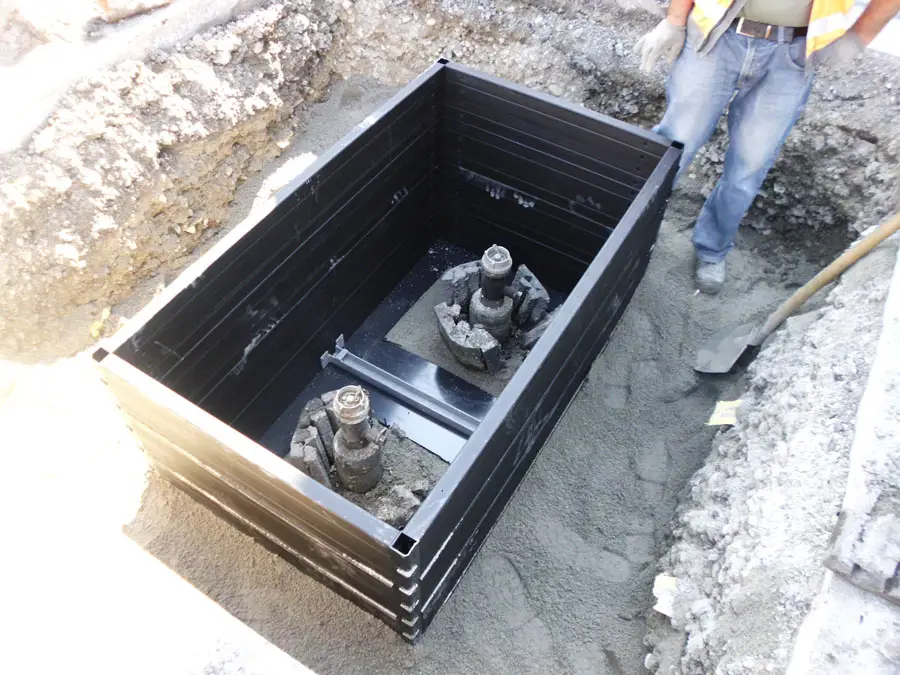

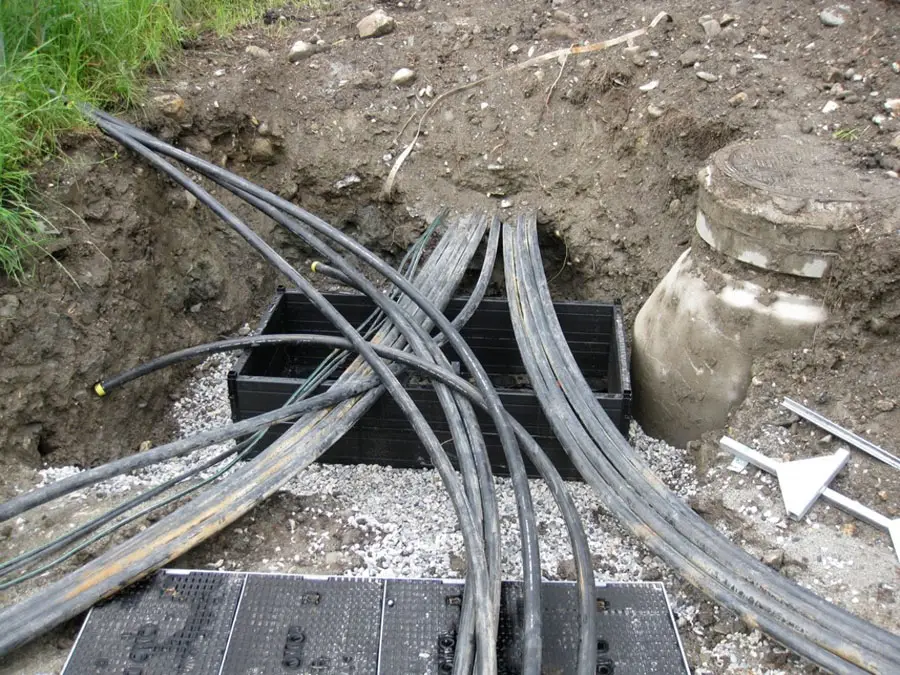

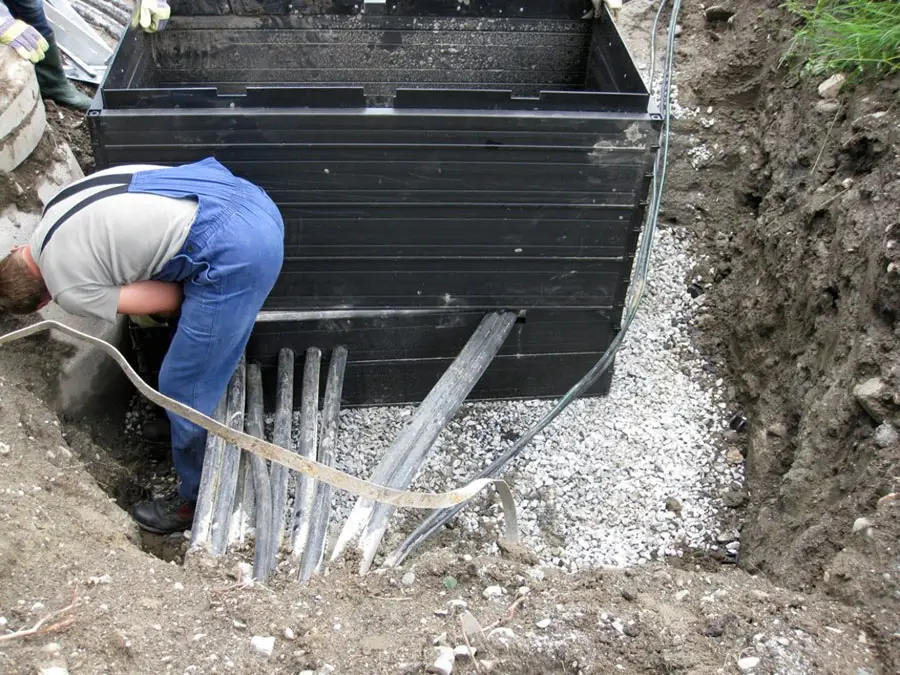

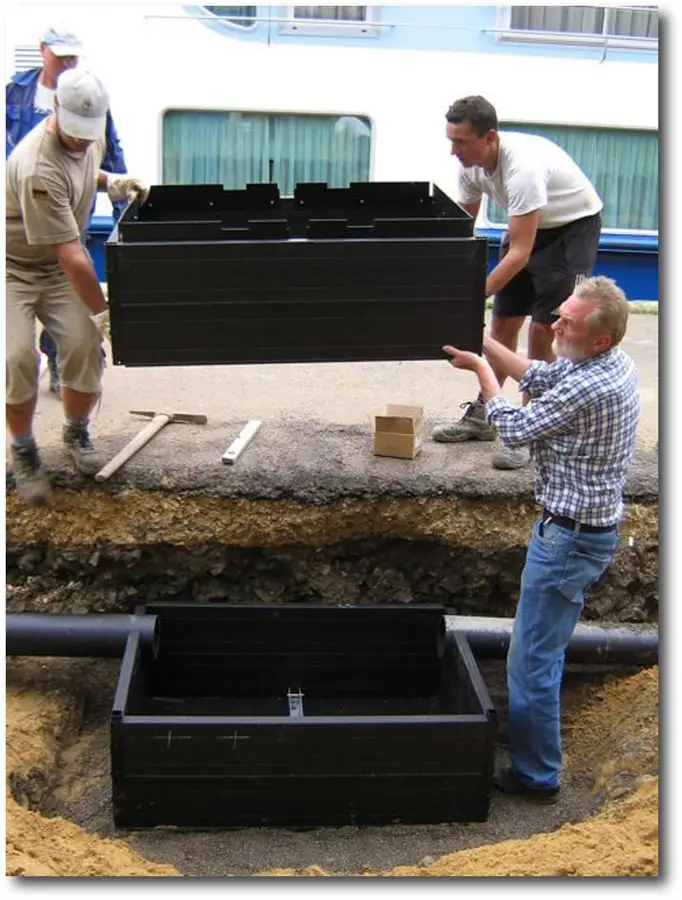

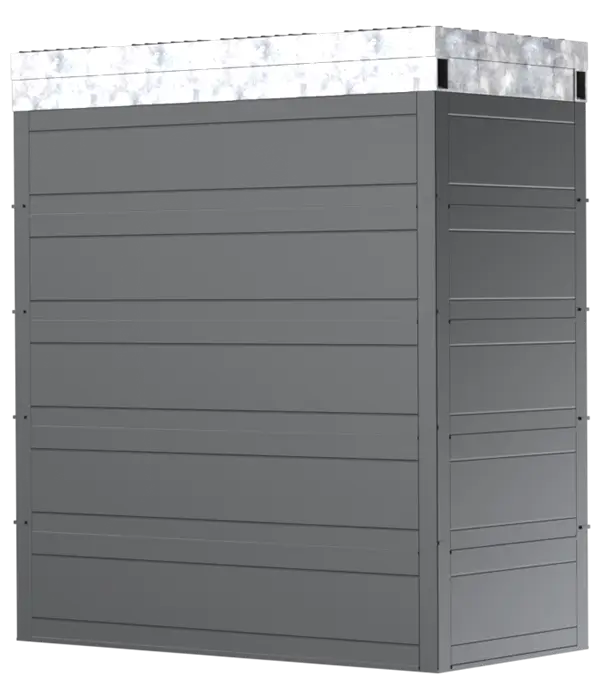

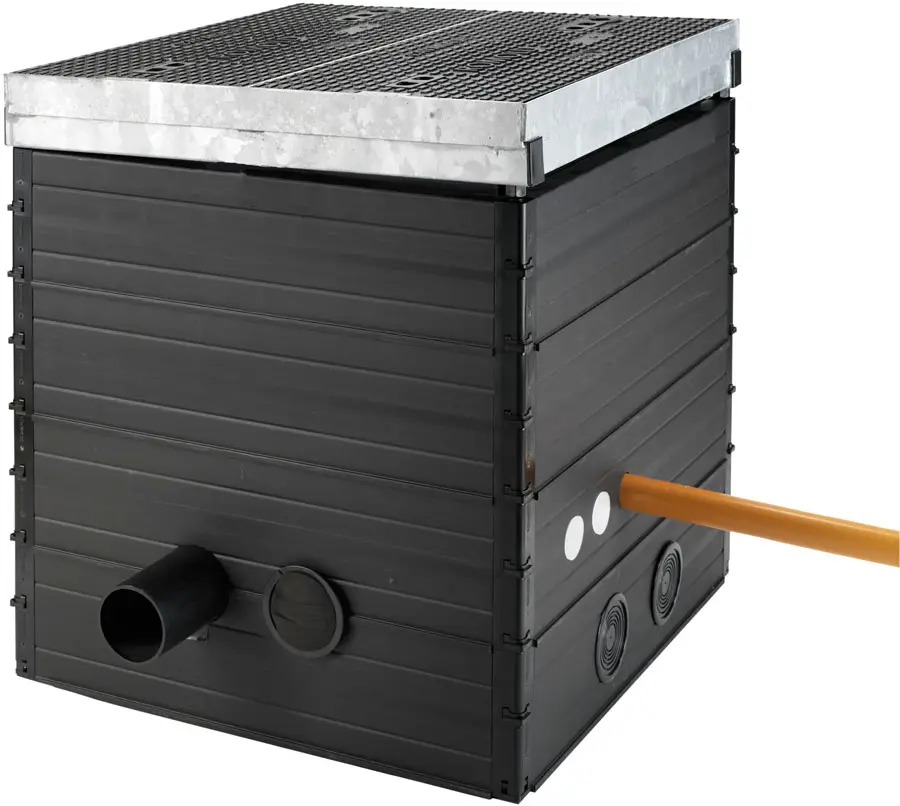

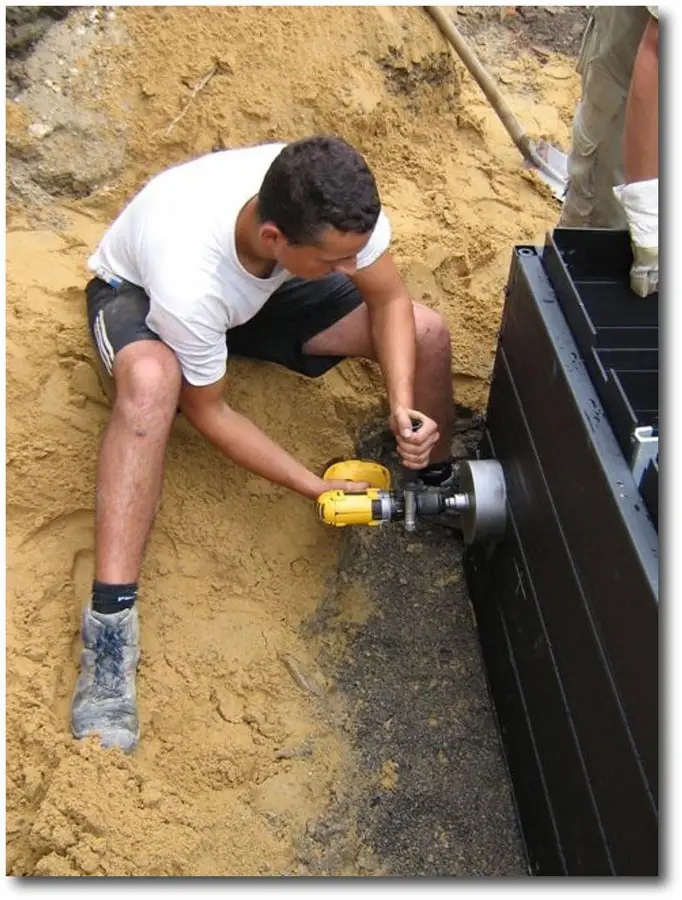

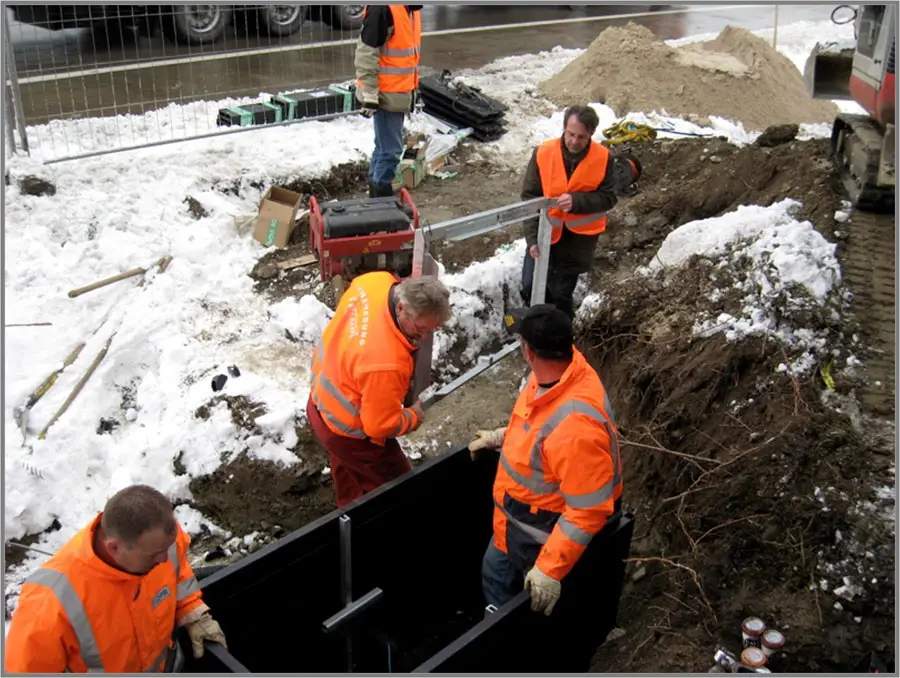

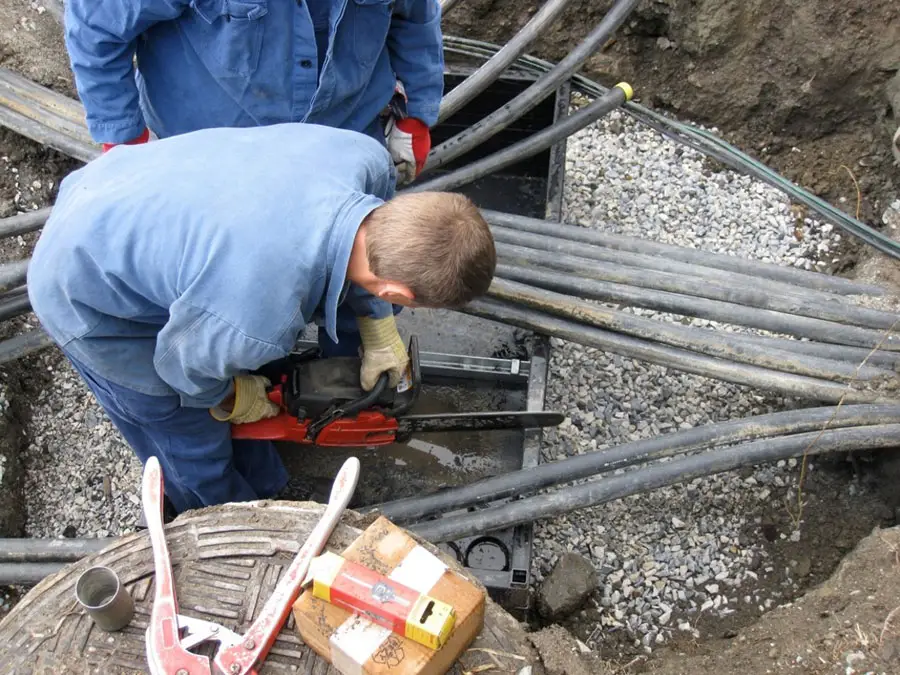

Based on a modular polypropylene chamber, the ROM-Box can be adjusted in depth by adding or removing layers, and can even be drilled, separated, and reassembled to sandwich pipework or ducting.

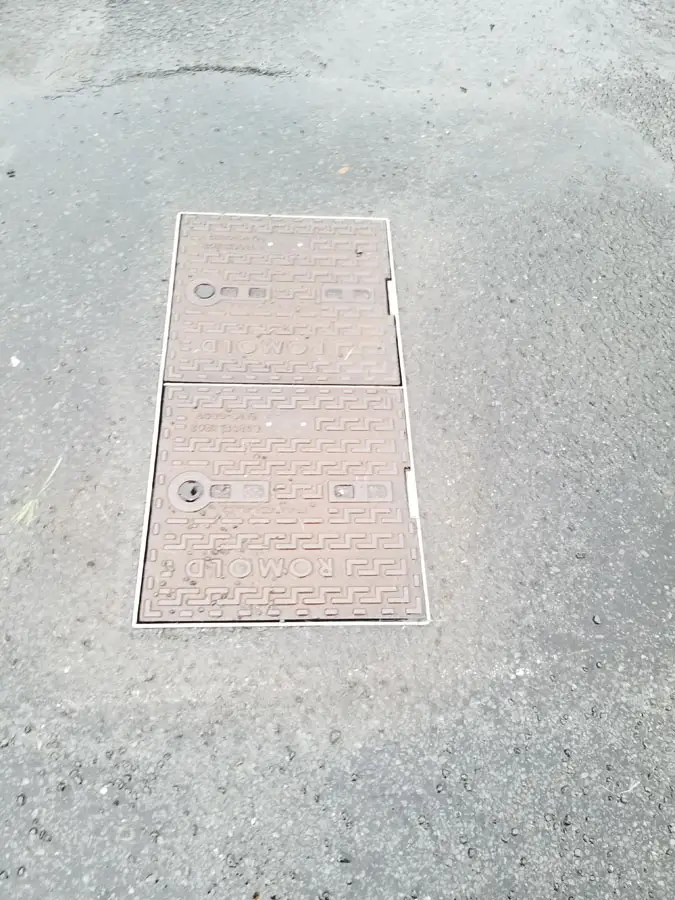

Available with Class B 125 or Class D 400 covers the ROM-Box is fully trafficable.

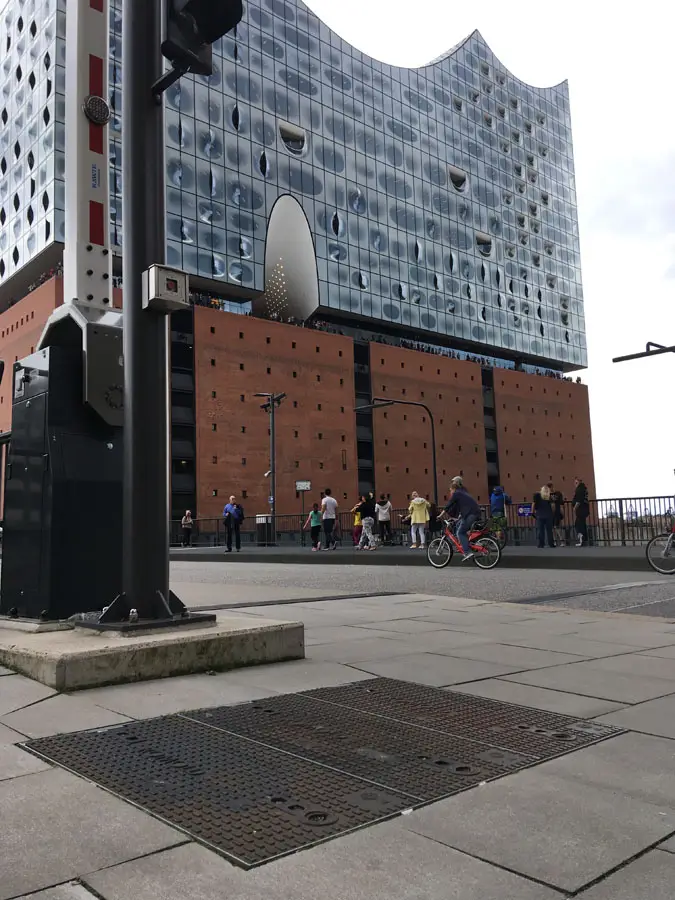

A range of sizes are available from ROMOLD Germany.
Contact us to learn more about the ROMOLD ROM-Box.
Features
- Modular rectangular multi-purpose sand-proof chamber
- Lightweight polypropylene construction

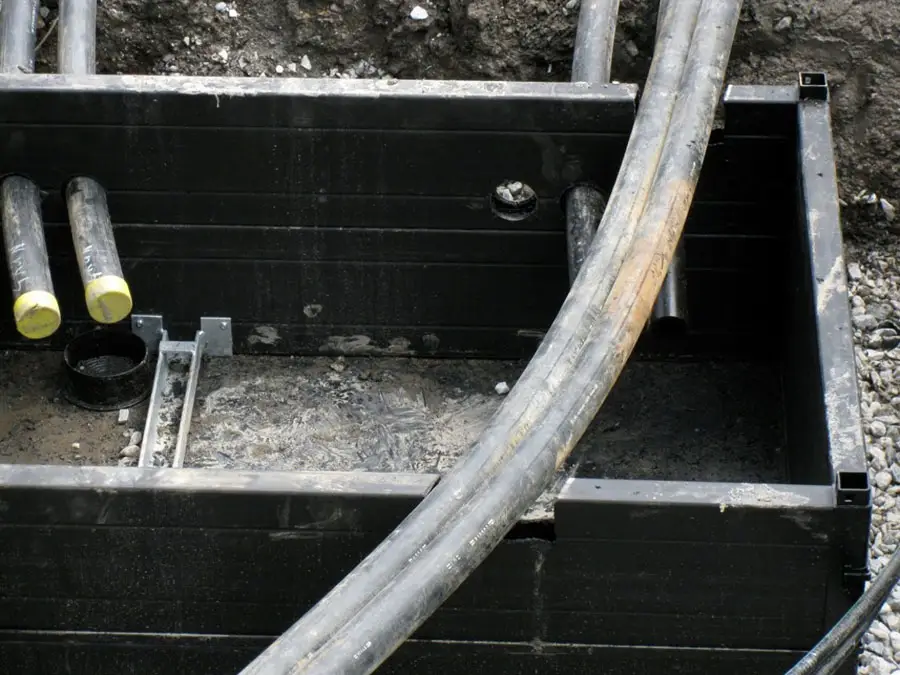

- Layered wall allowing for depth adjustment and pipe sandwiching

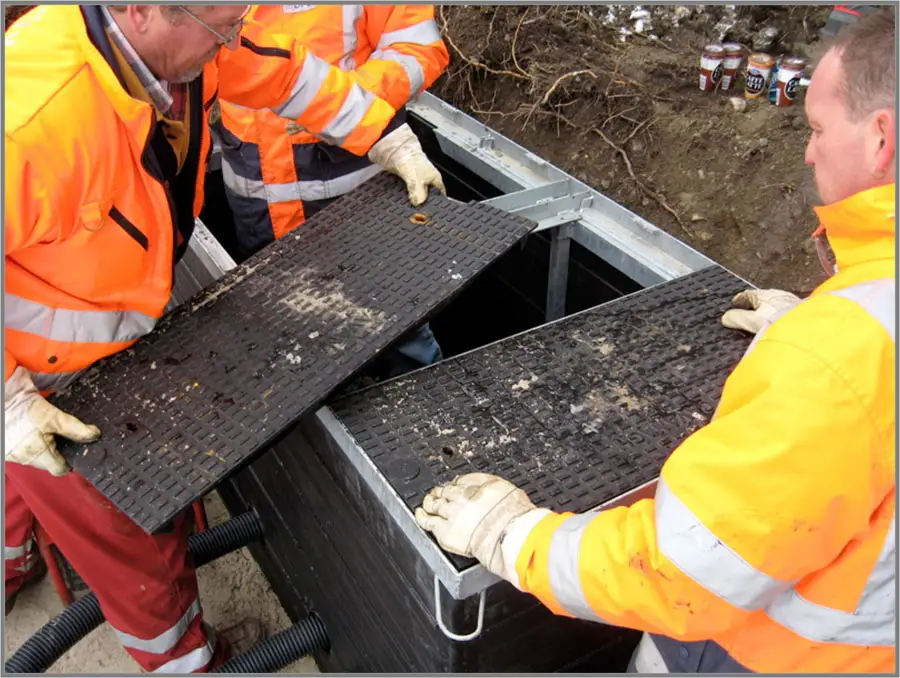

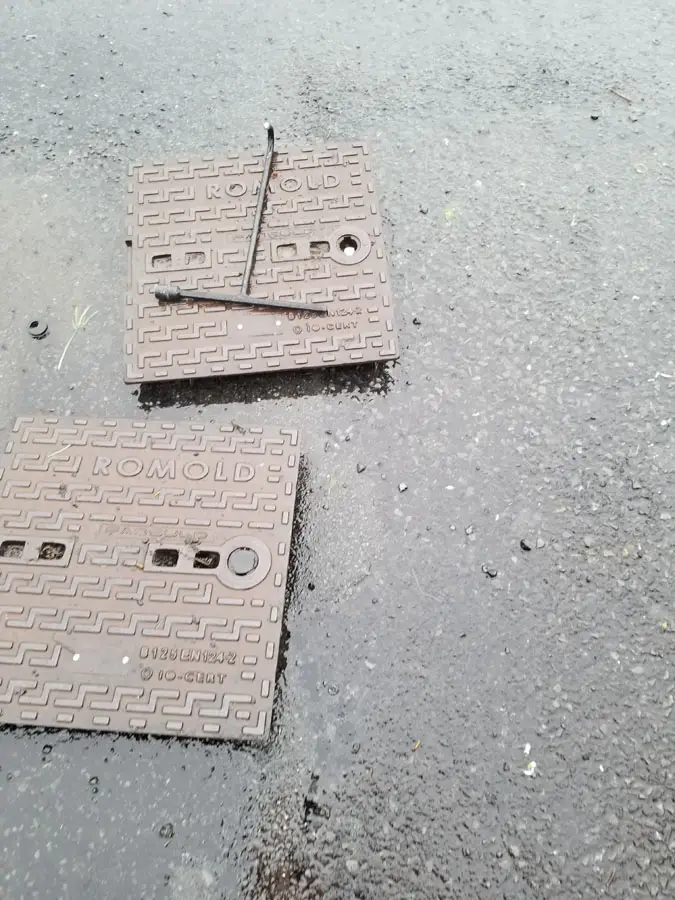

- Steel cover for durable solution
- Fully trafficable. Class B or Class D cover options available.
- Fine adjustment screws for cover to allow setting to grade or camber
- Many size options available
- Design support services from Australasia Moulding Ltd
Specifications
- Material: Polypropylene chamber, steel frame and cover(s)

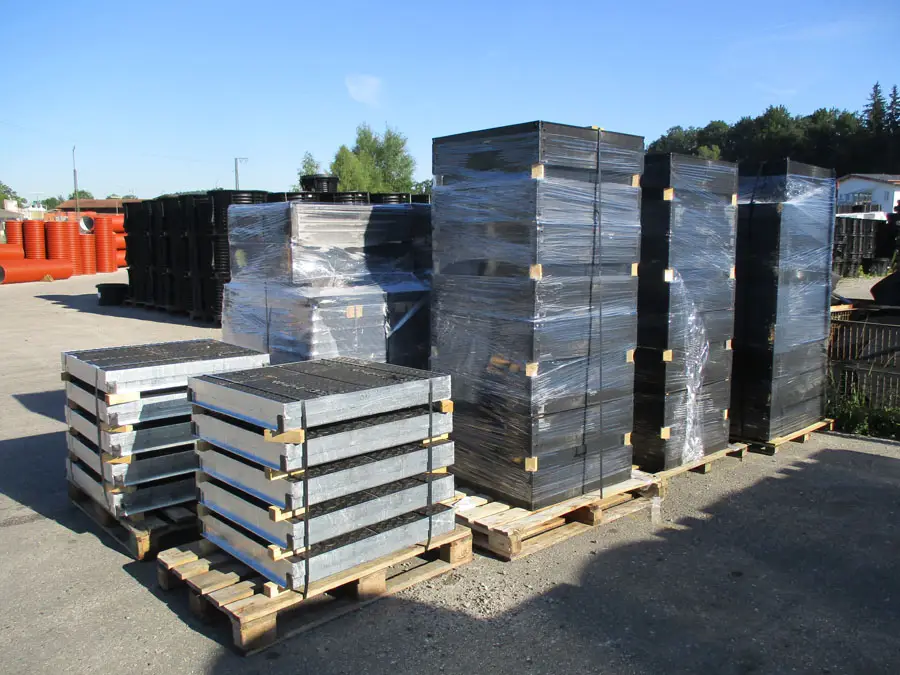

- Size options: From 300 x 300mm, to 755 x 1515mm
- Traffic loading: Class D (HN-HO-72)

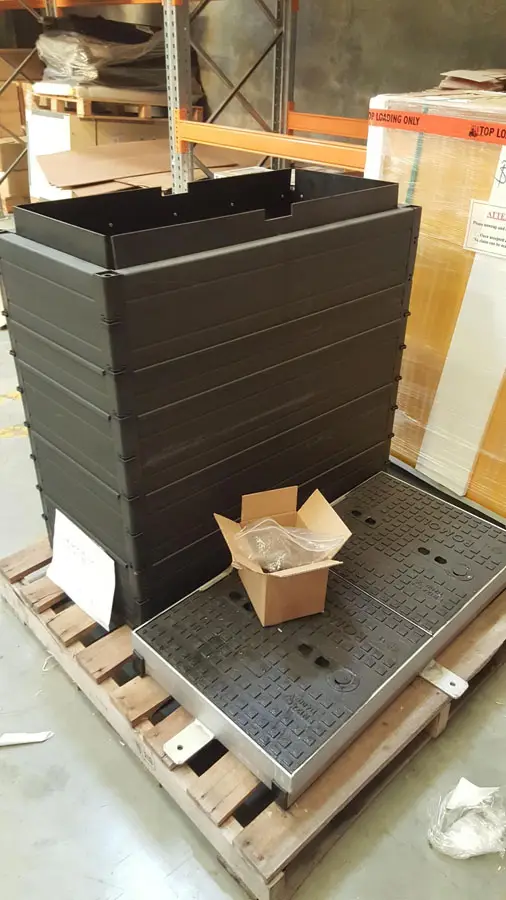

- Chamber weight: Approximately 40kg for a 400 x 900mm chamber (900mm deep)
- Sand-proof only. For sealed chambers see ROMOLD electrical chambers.
Downloads
CAD Blocks
- ROM-BOX 40-40-75 Standard-Drawing - DWG
- ROM-BOX 40-40-75 Standard-Drawing - DXF
- ROM-BOX 40-40-75 Standard-Drawing - PDF
- ROM-BOX 57-92-75 - DXF
- ROM-BOX 57-92-76 Standard-Drawing - DWG
- ROM-BOX 57-92-76 Standard-Drawing - DXF
- ROM-BOX 57-92-76 Standard-Drawing - PDF
- ROM-BOX 75-11.5-11.6 Standard-Drawing - PDF
- ROM-BOX 75-115-116 Standard-Drawing - DWG
- ROM-BOX 75-115-116 Standard-Drawing - DXF
Approvals

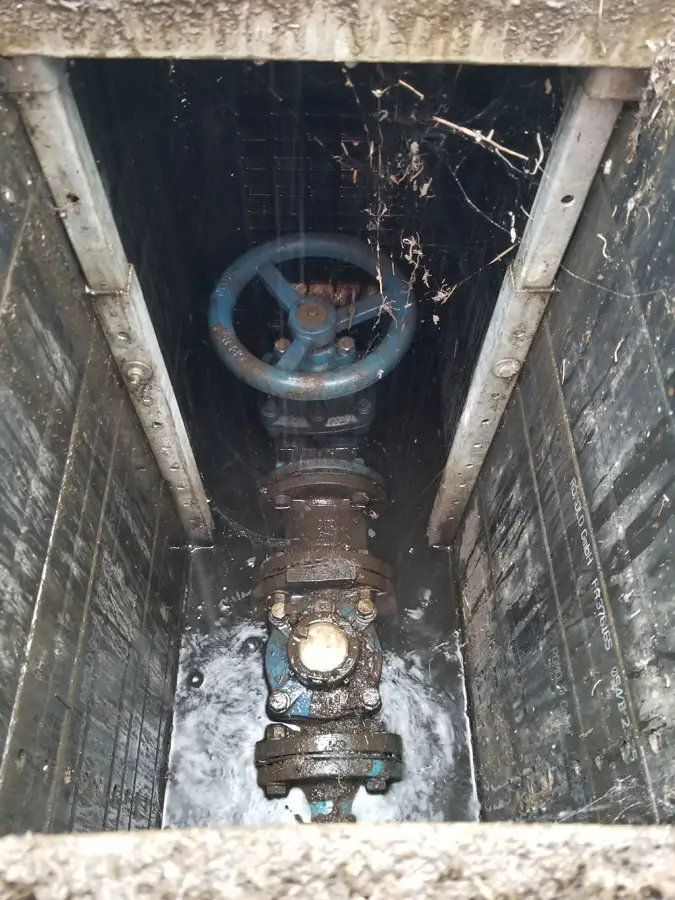

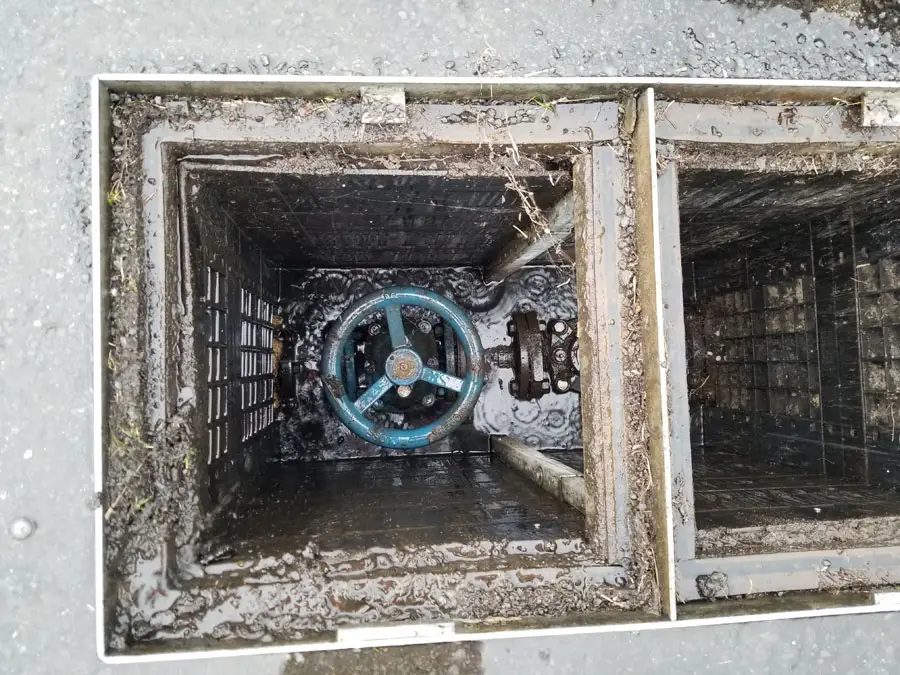

ROMOLD valve chambers are accepted by most New Zealand Councils, including:
- Far North District Council
- Whangarei District Council
- Kaipara District Council
- Watercare
- Auckland City Council
- Thames-Coromandel District Council (RITS)
- Hauraki District Council (RITS)
- Waikato District Council (RITS)
- Matamata-Piako District Council (RITS)
- Hamilton City Council (RITS)
- Waipa District Council (RITS)
- South Waikato District Council (RITS)
- Otorohanga District Council (RITS)
- Waitomo District Council (RITS)
- Rotorua Lakes Council (RITS)
- Taupo District Council (RITS)
- Tauranga City Council
- Western Bay of Plenty District Council
- Whakatane District Council
- Opotiki District Council
- Gisborne District Council
- Napier City Council
- Hastings District Council
- Central Hawkes Bay District Council
- Tararua District Council
- Palmerston North City Council
- New Plymouth District Council
- South Taranaki District Council
- Masterton District Council
- Carterton District Council
- Marlborough District Council
- Nelson City Council
- Tasman District Council
- Buller District Council
- Grey District Council
- Kaikoura District Council
- Hurunui District Council
- Waimakariri District Council
- Christchurch City Council
- Selwyn District Council
- Ashburton District Council
- Timaru District Council
- Mackenzie District Council
- Waimate District Council
- Waitaki District Council
- Queenstown Lakes District Council
- Central Otago District Council
- Dunedin City Council
- Clutha District Council
- Gore District Council
- Invercargill City Council
- Southland District Council
Contact us for approval certificates or confirmations.
Related Products
All

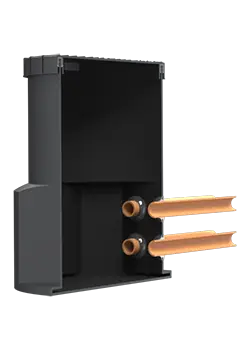

Cable Chambers
Taupiri Meter Box

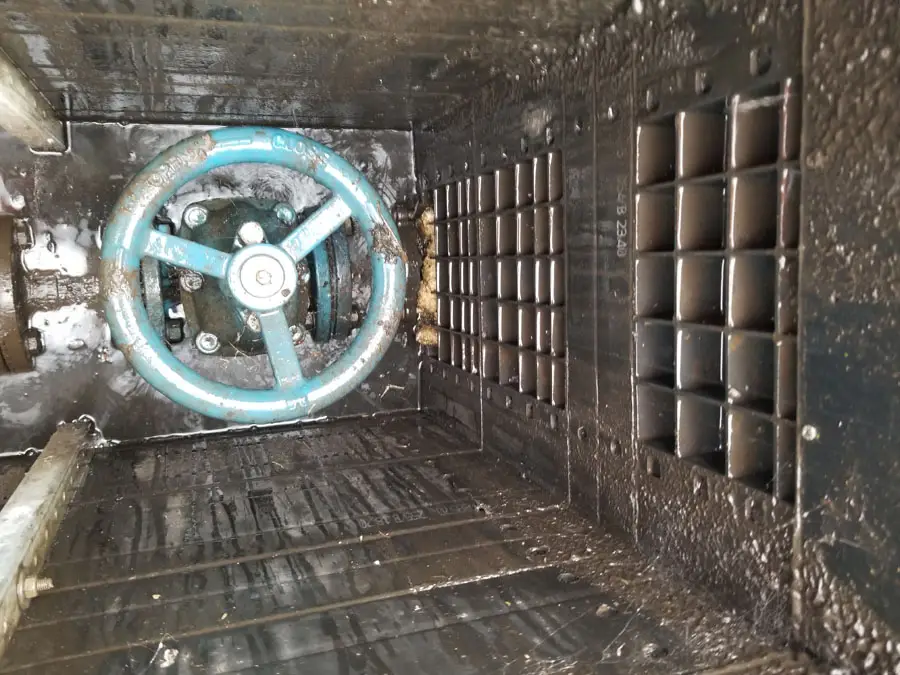

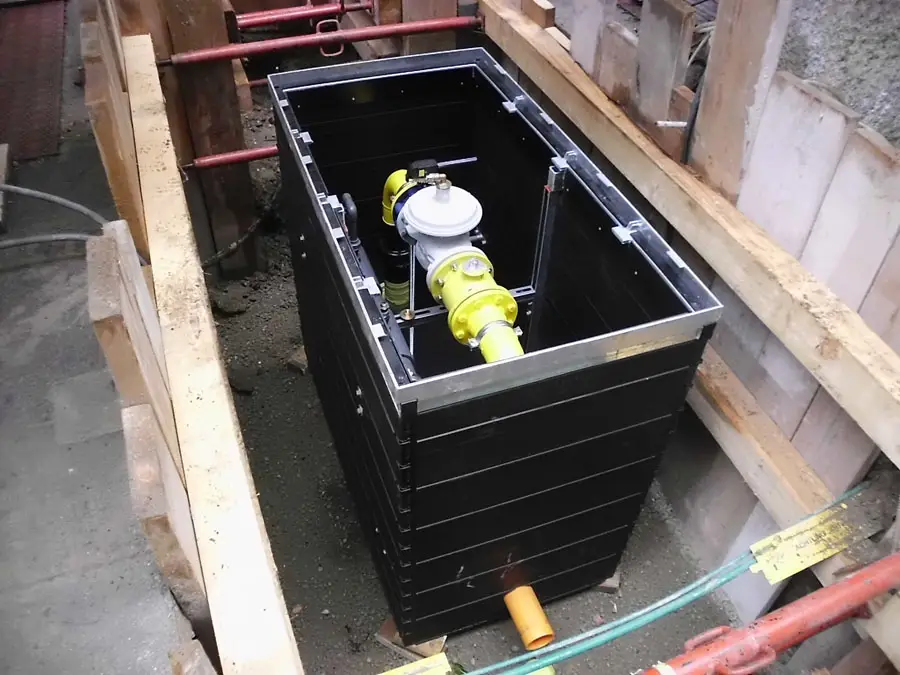

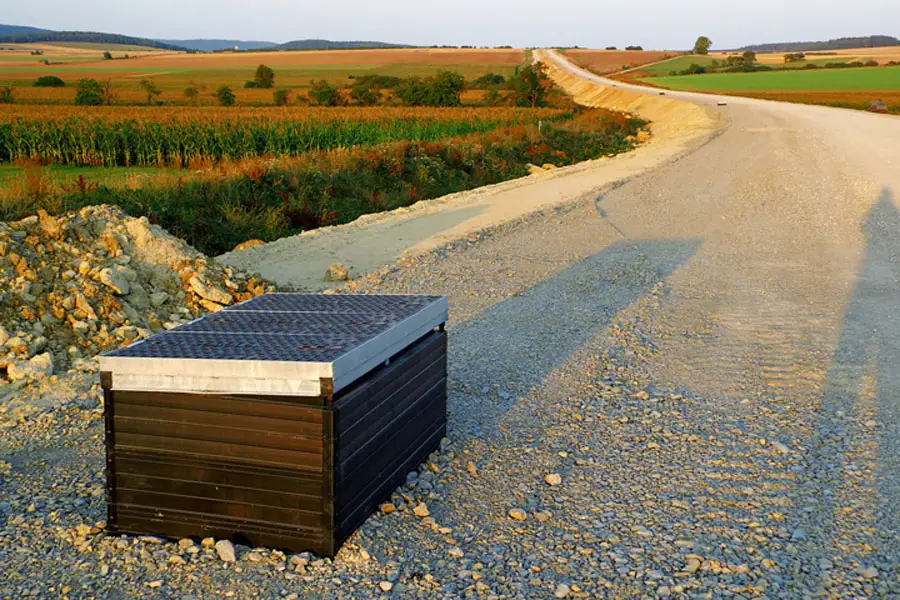

General Images
