ROMOLD Discharge Chambers

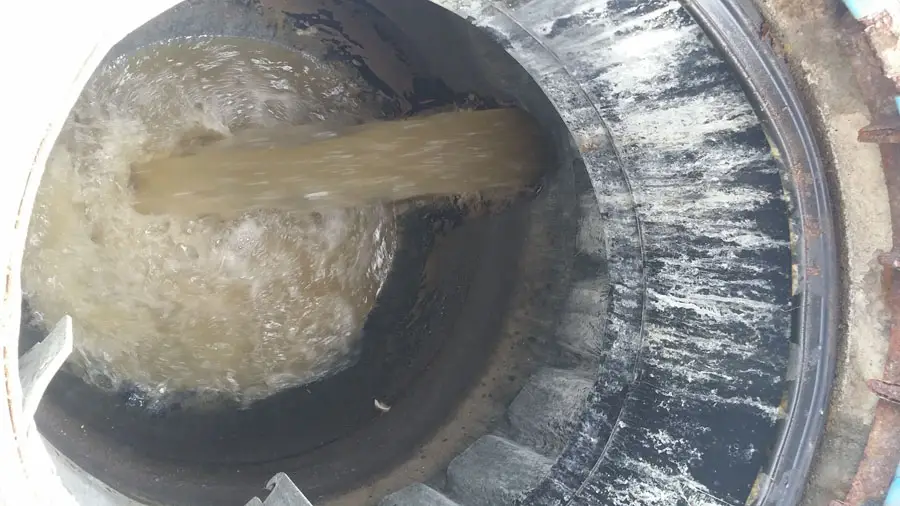

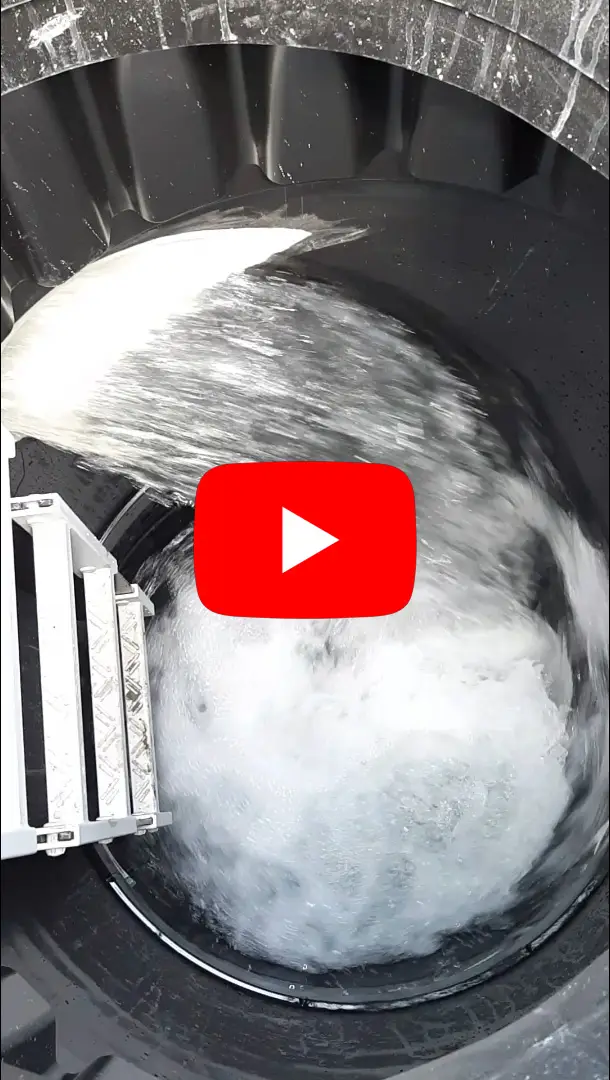

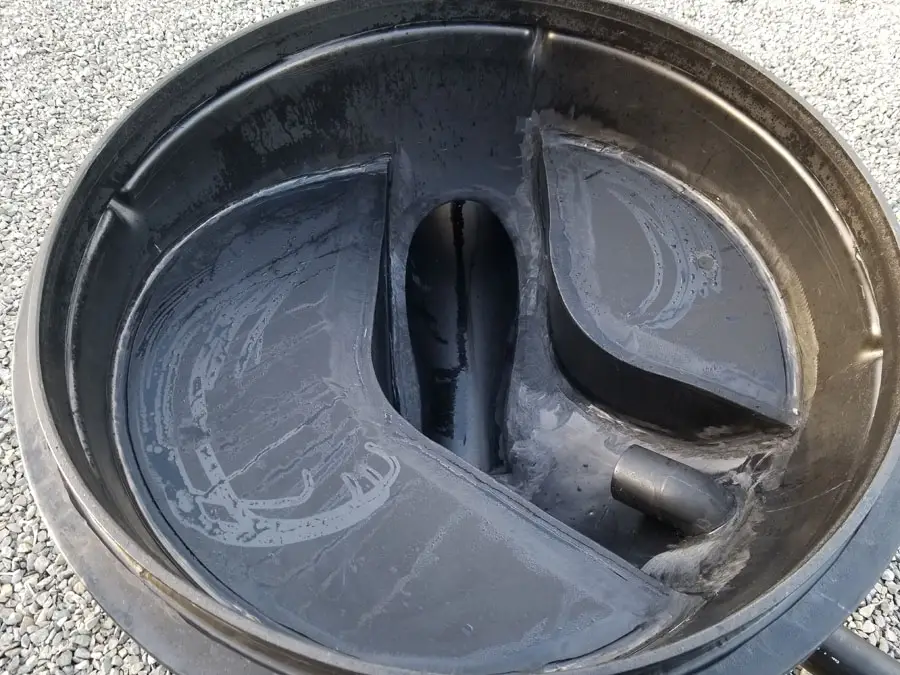

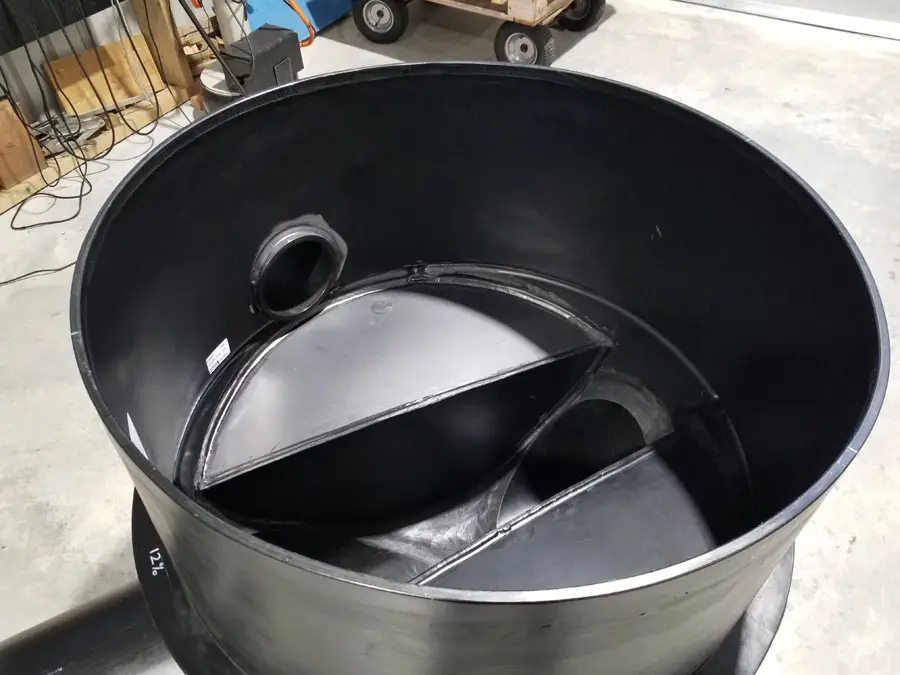

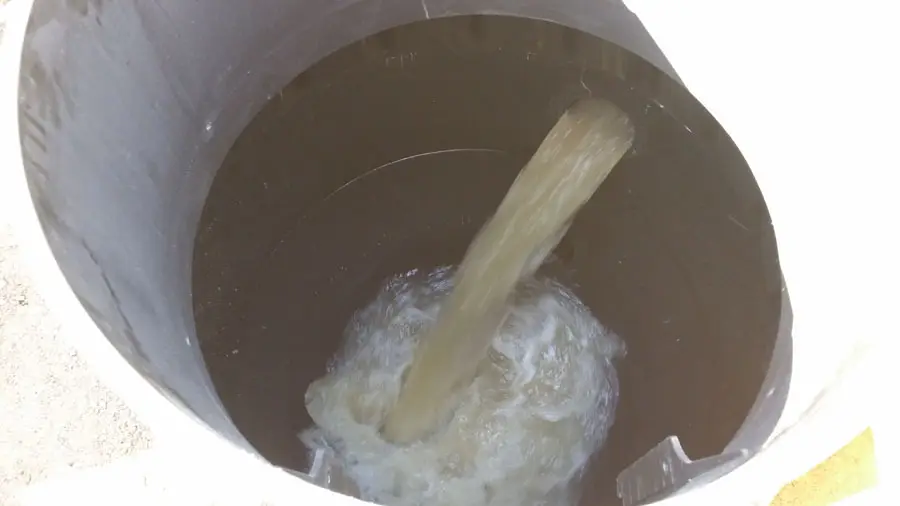

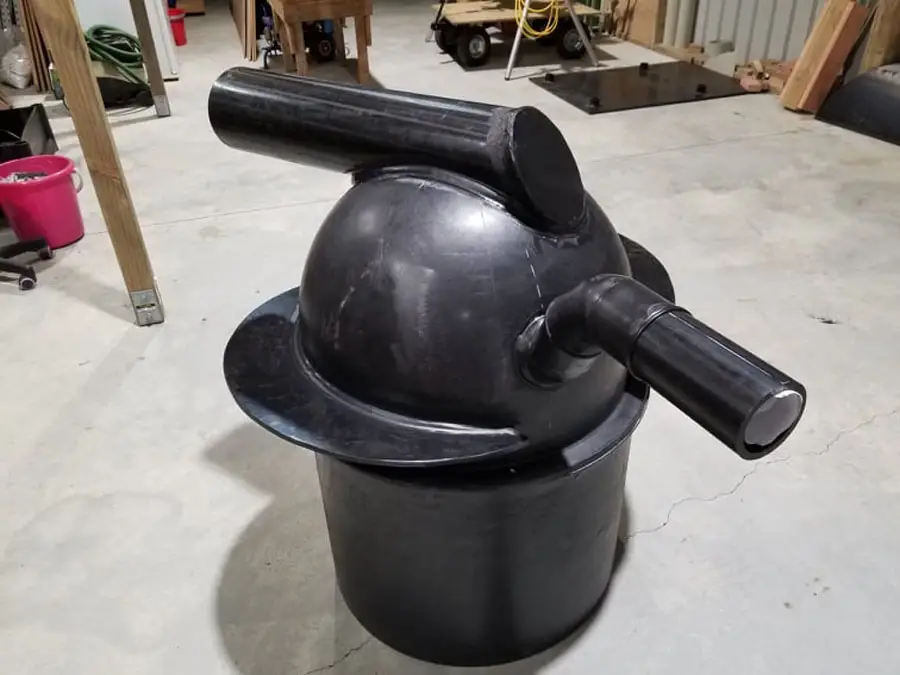

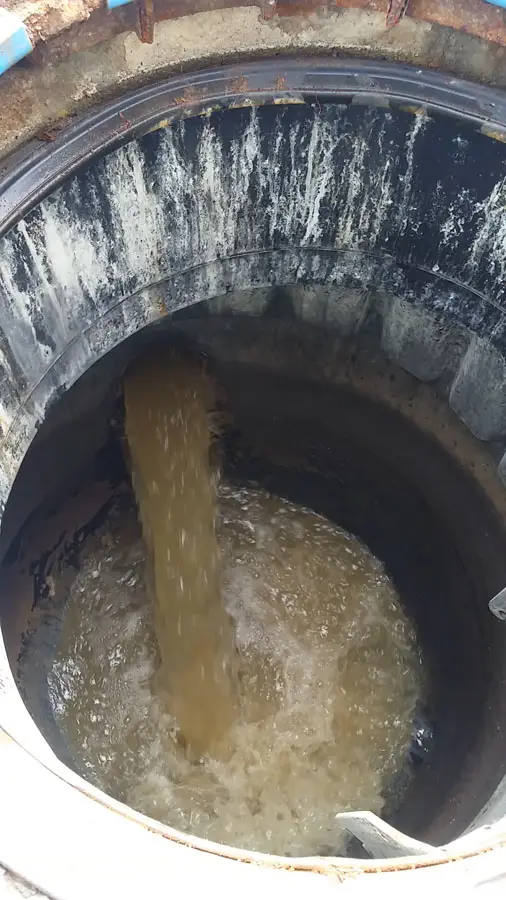

Discharge chambers in the ROMOLD DN1000 or DN625 platform are a logical solution for pressure sewer discharge into gravity lines.

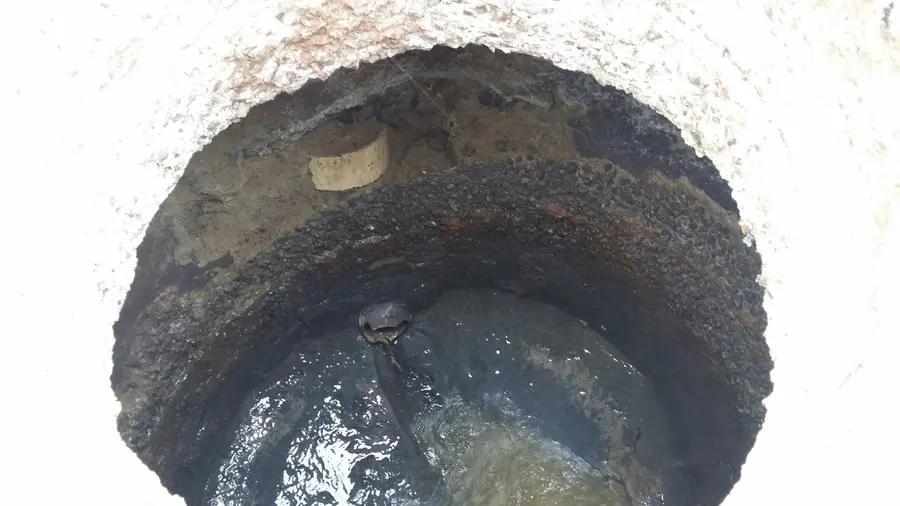

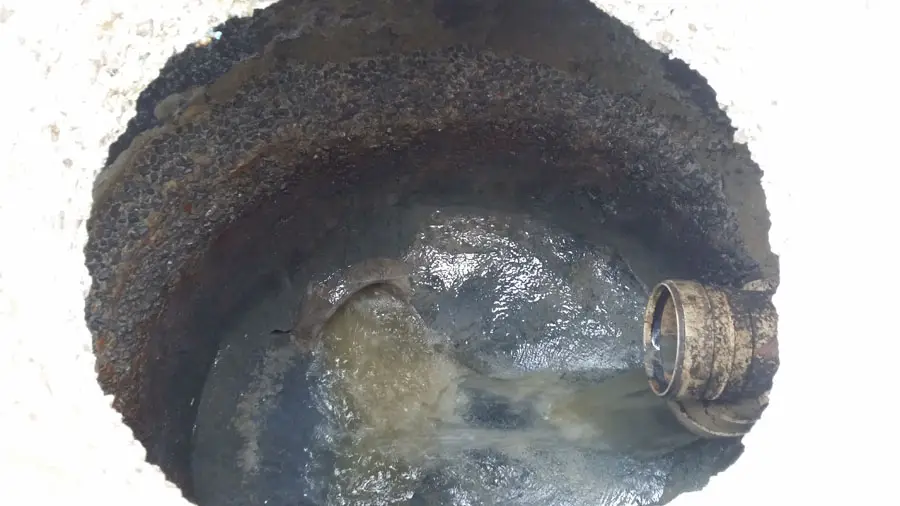

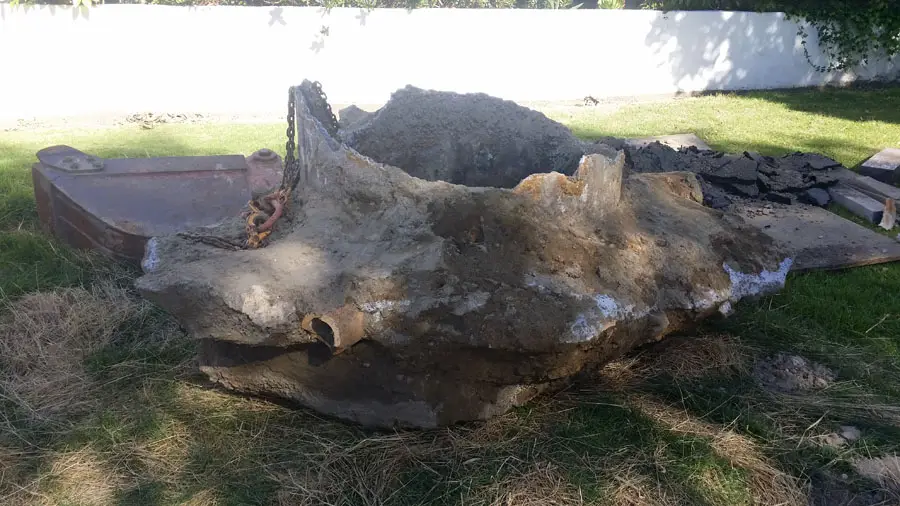

This is where the liberation of hydrogen sulfide gas, caused by long residence times, can be the most disruptive. Receiving the sewer into a full plastic manhole chamber solution negates this corrosion risk, and also prevents any scouring that may occur in a concrete manhole. The chamber can be ventilated to a Green Dome filter at this point.

ROMOLD discharge manholes are constructed to meet project specifications and offer a number of solutions dependent on Council preferences.

For further enquiries please contact us.

Features

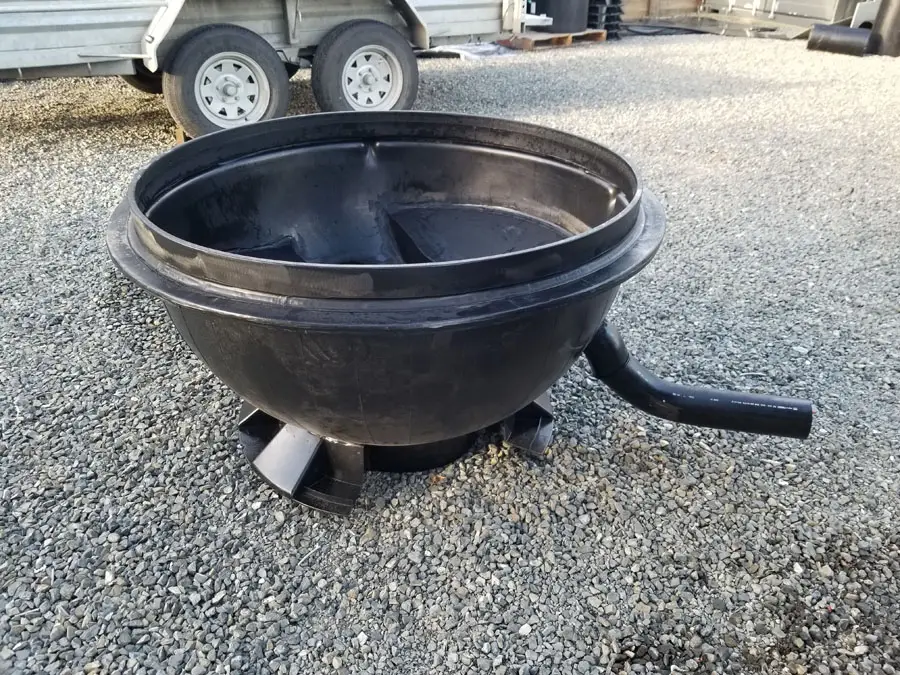

Full polyethylene/polypropylene chamber reduces the risk of hydrogen sulphide corrosion

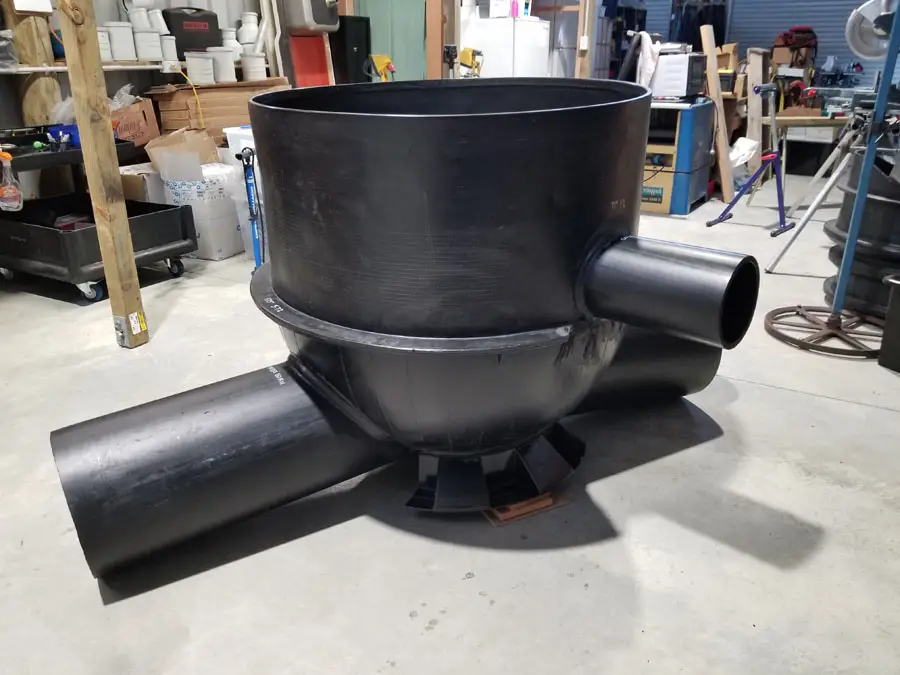

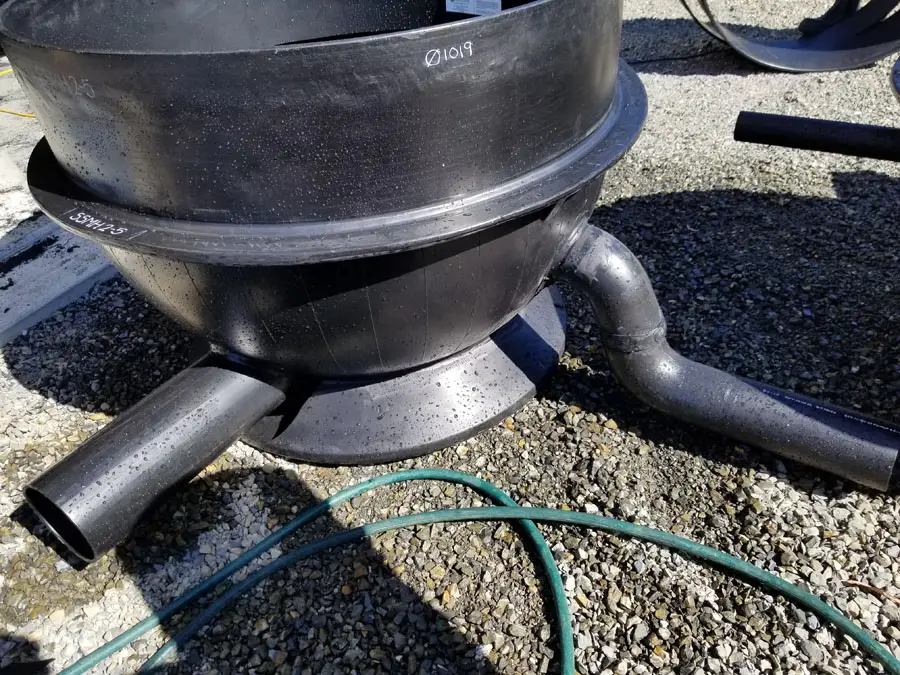

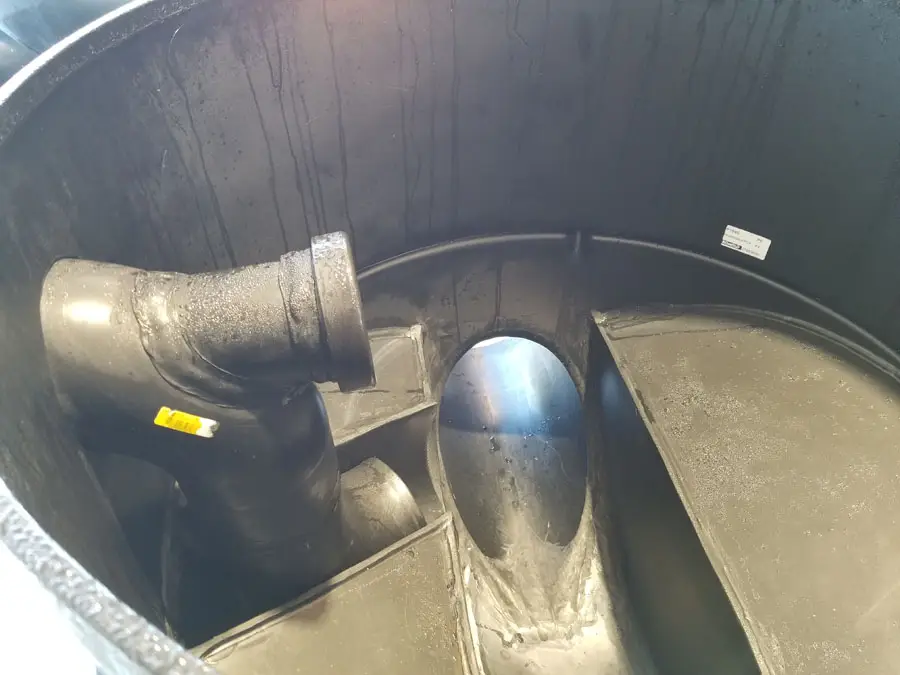

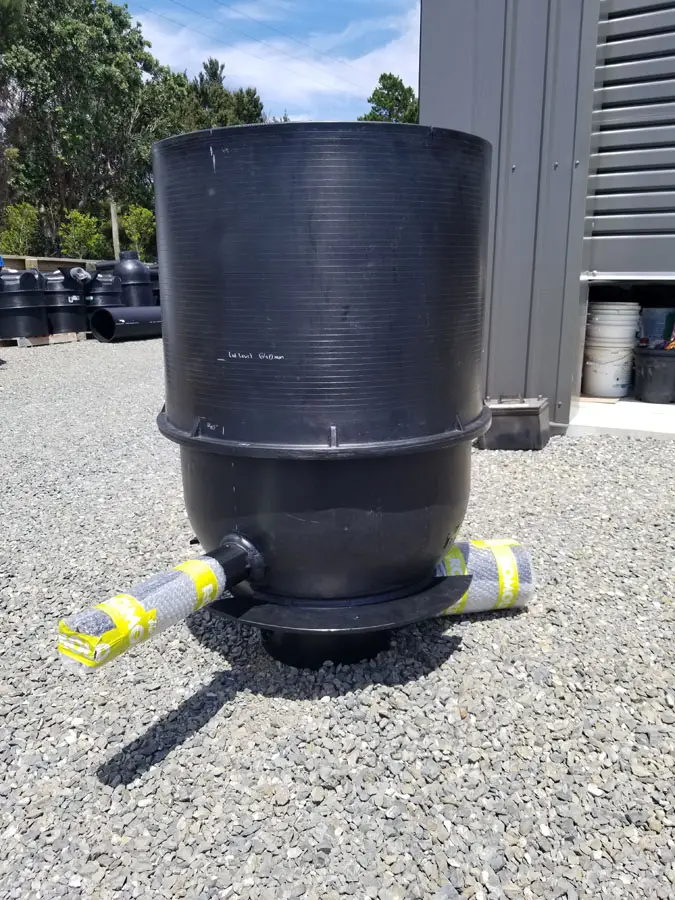

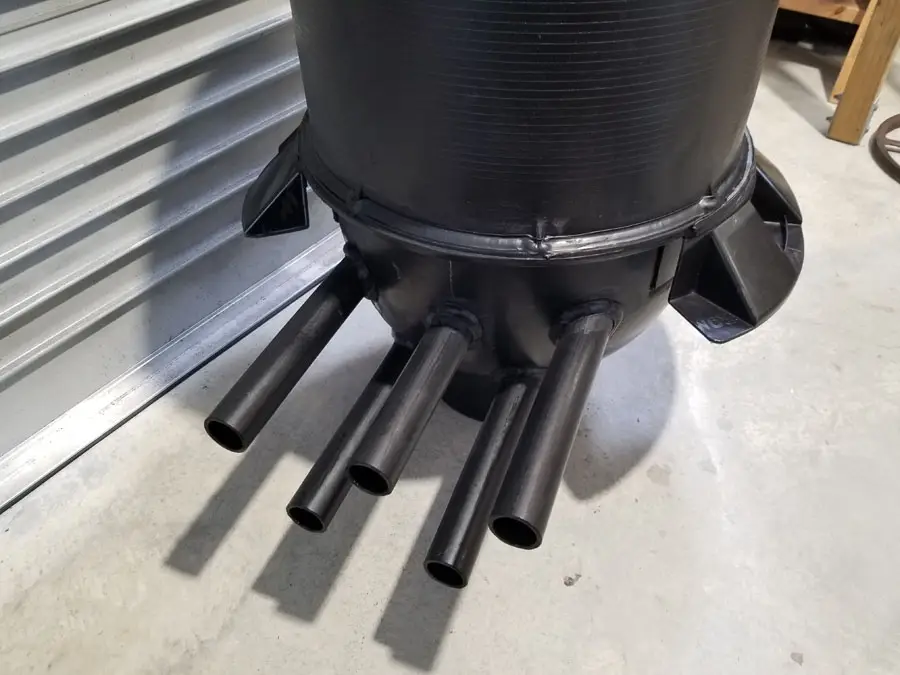

Polyethylene inlets allow for direct connection to PE pipeline with EF couplers

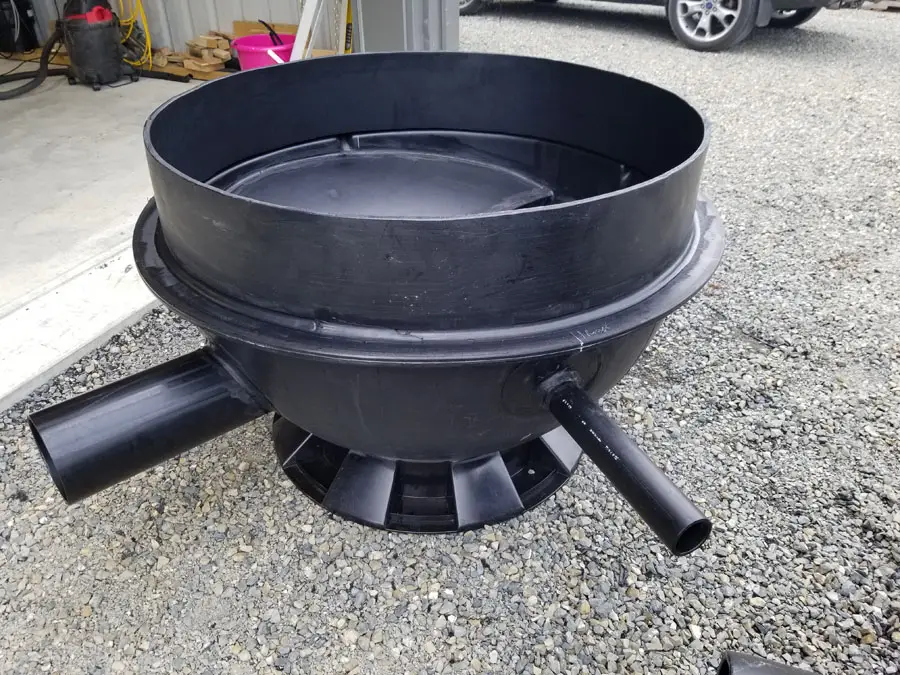

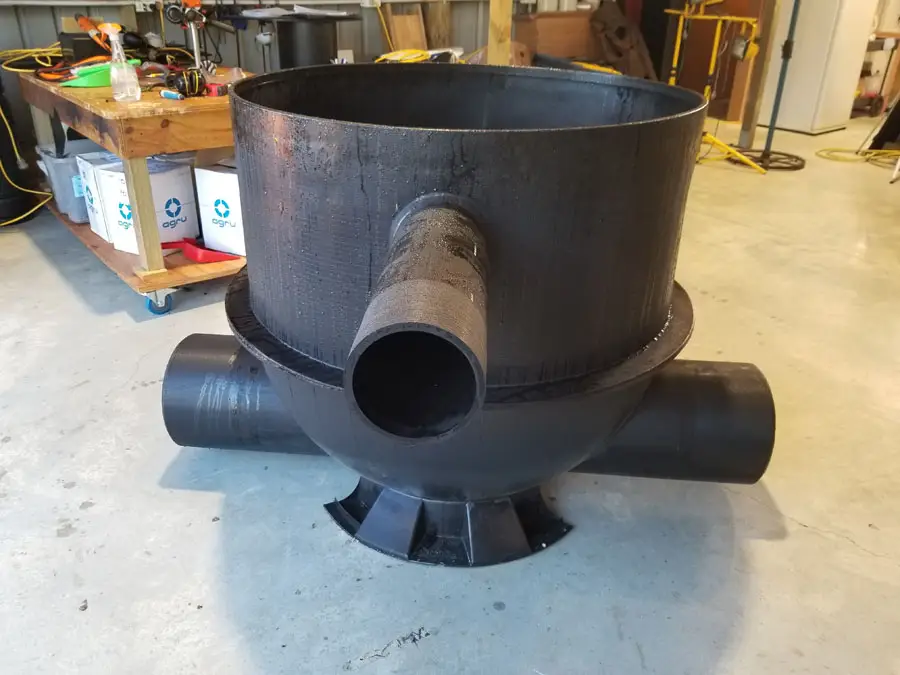

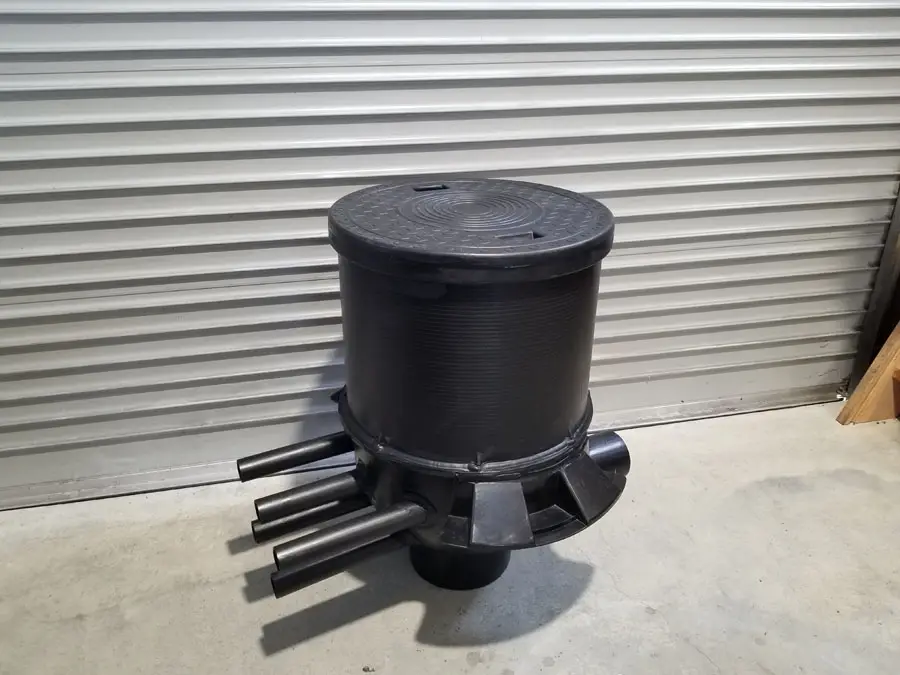

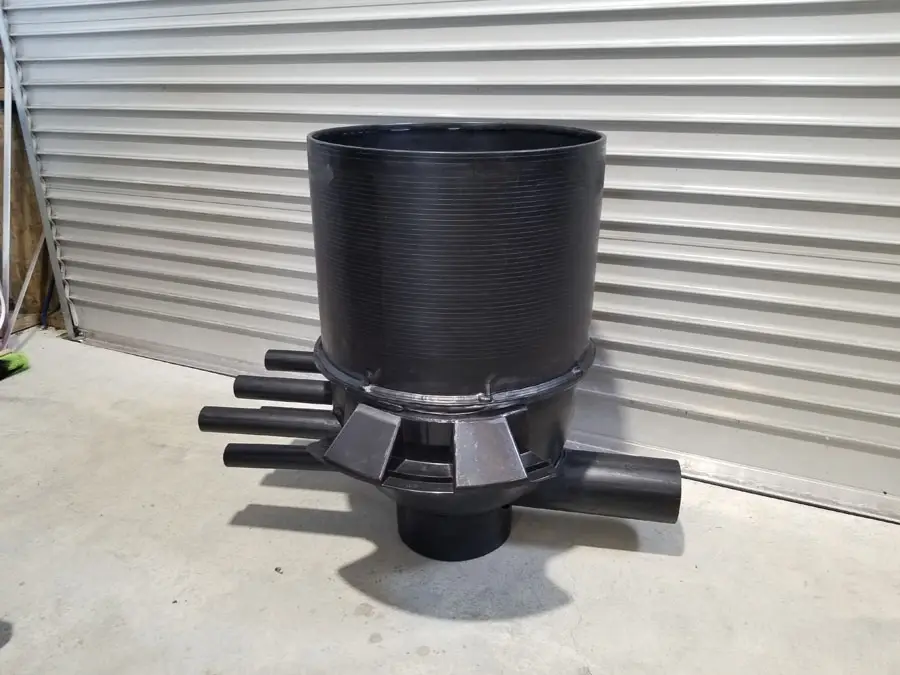

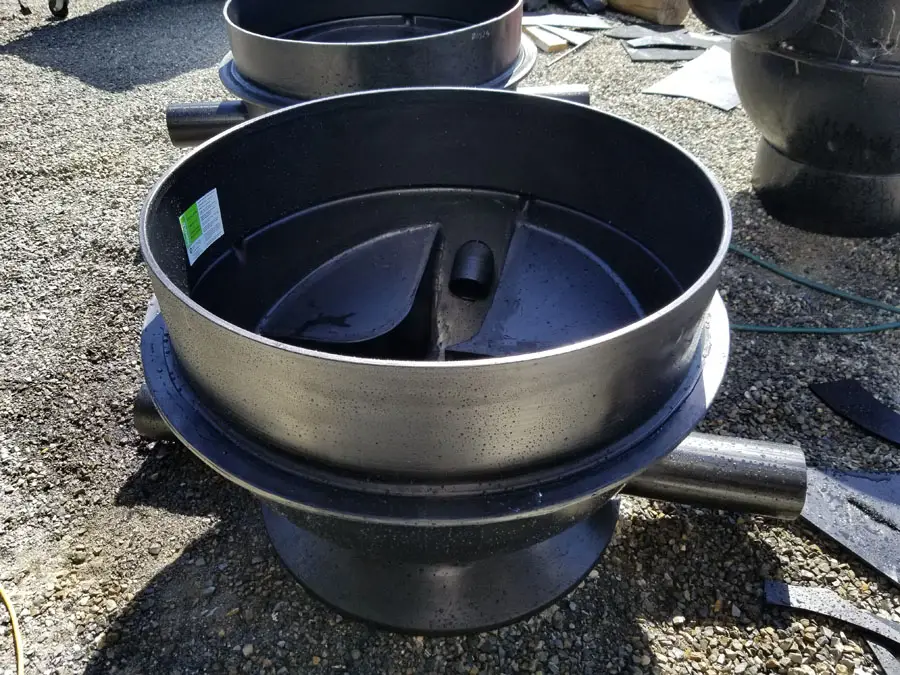

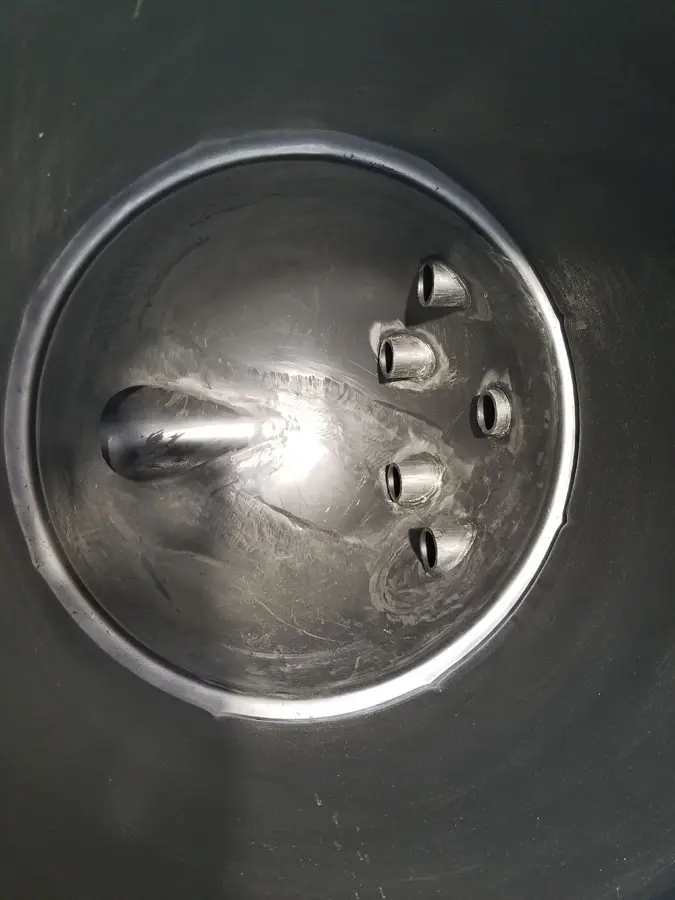

Range of inlet options available
New Zealand fabricated solution to match the needs of the site

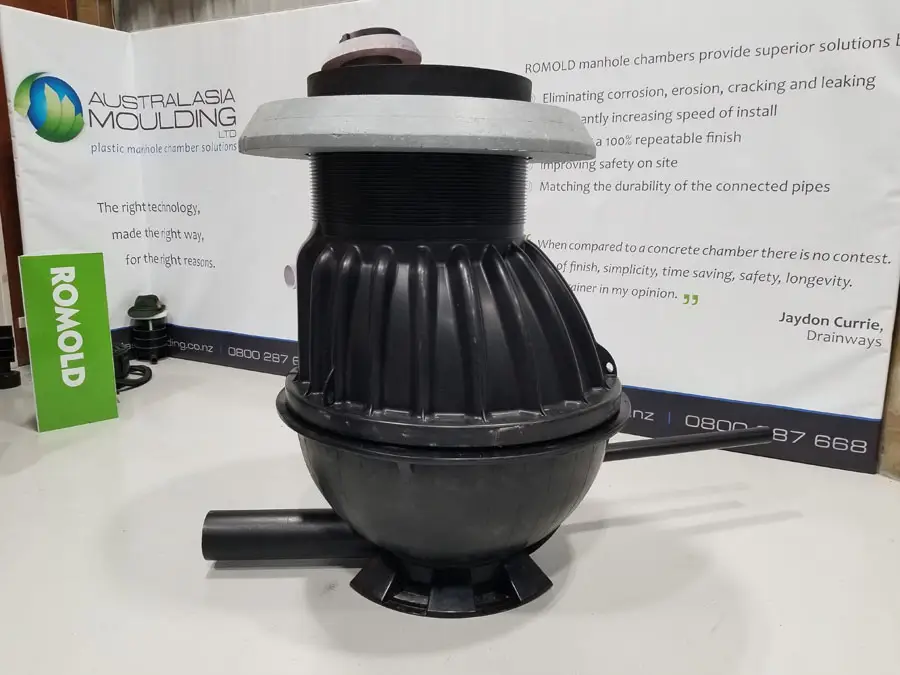

Modular construction
Includes PP ladders in riser and cone as standard
Height adjustable to the nearest cm
Approved for HN-HO-72 traffic loading
Design support services from Australasia Moulding Ltd

Specifications

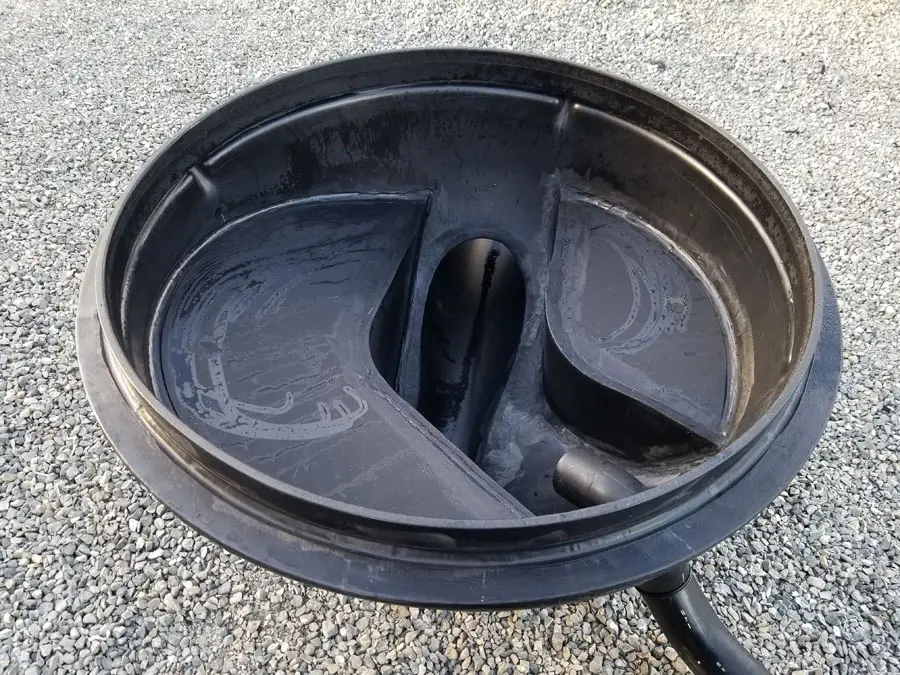

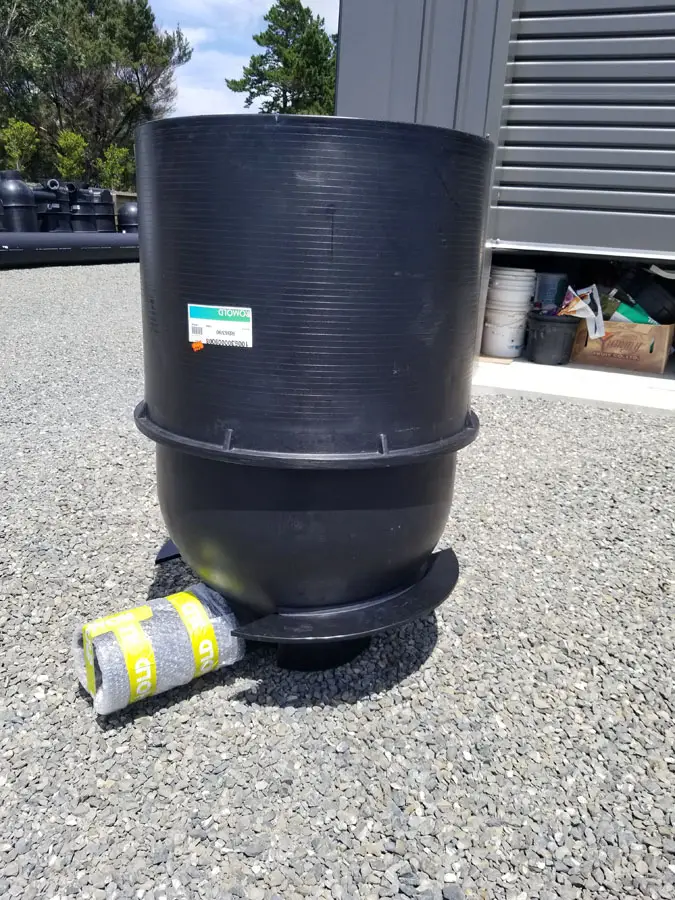

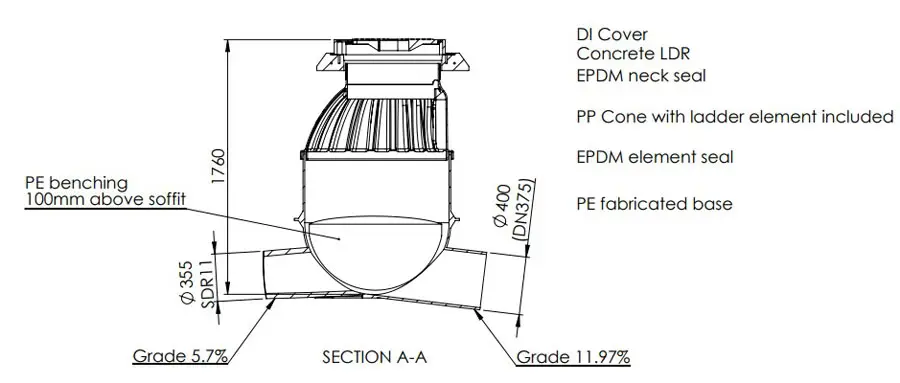

Material: Polyethylene base with polypropylene riser and cone
Seals: EPDM
Ladder: Glass-filled polypropylene

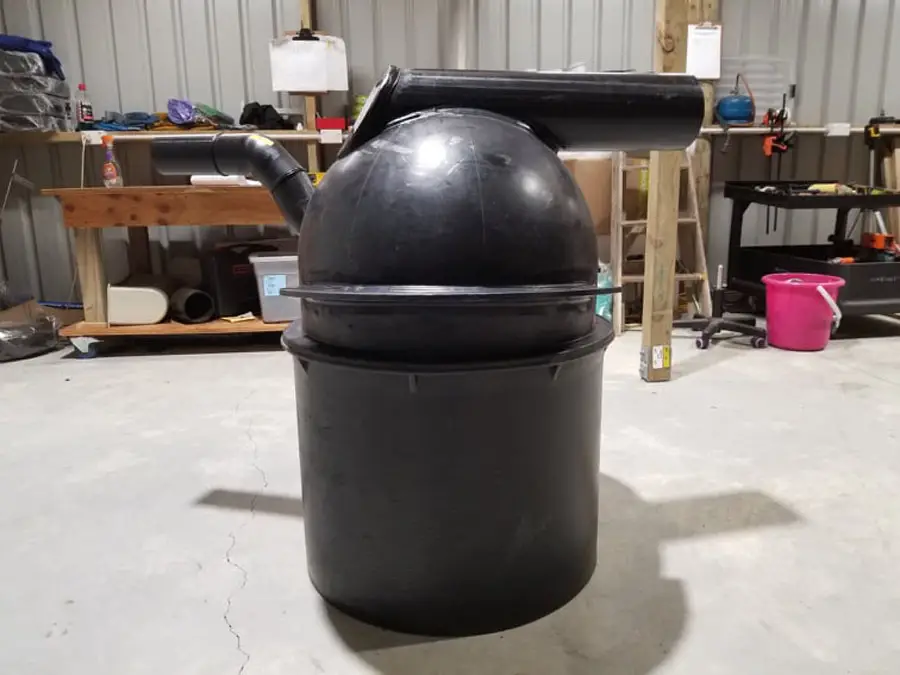

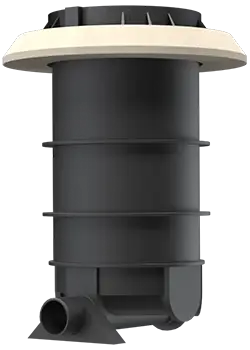

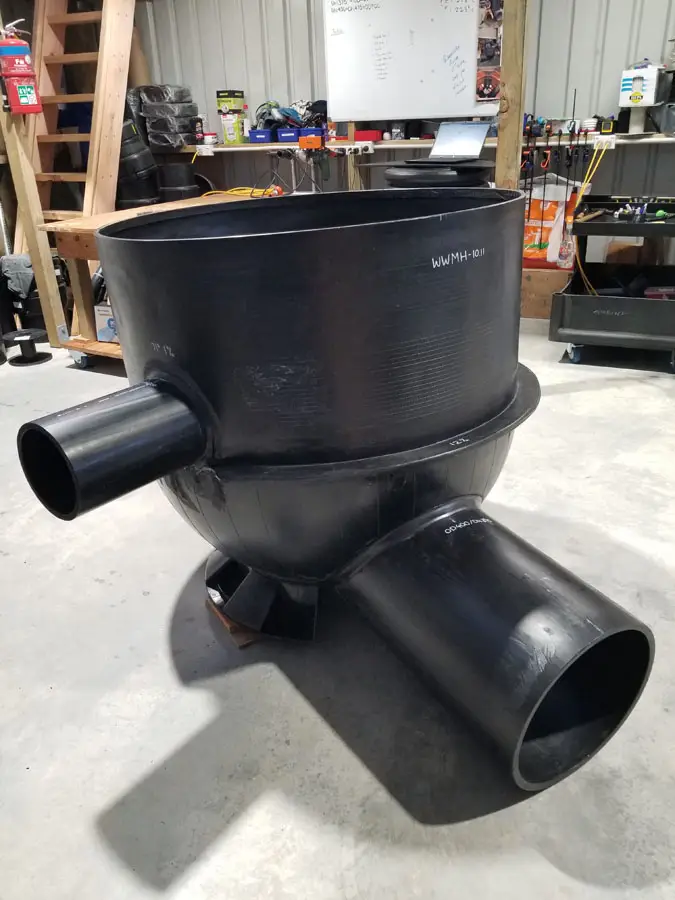

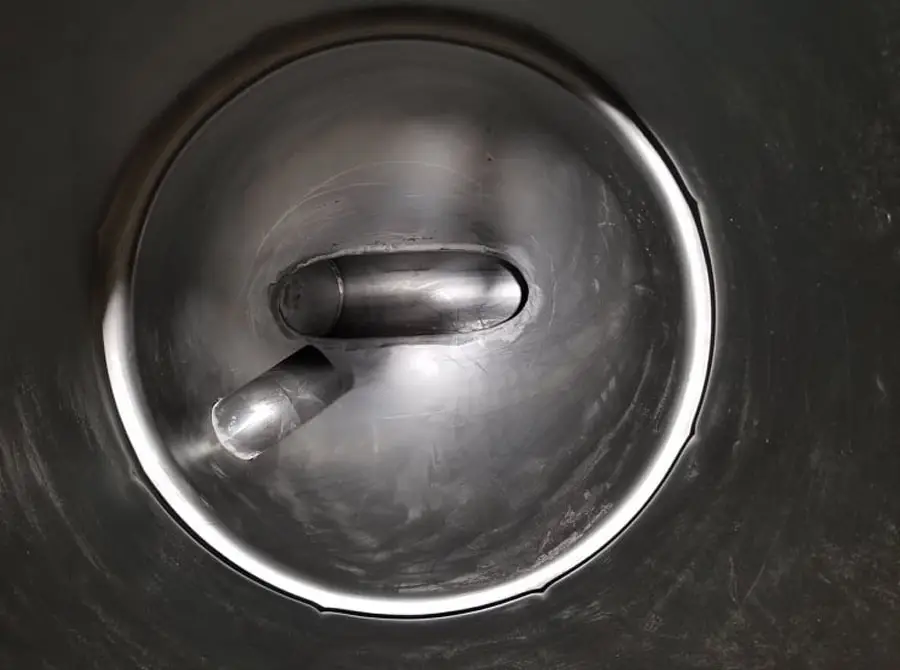

Diameter : DN1000 for deeper applications or large pipelines, DN625 for shallow installations
Throat: 600mm clear opening
Pipe sizes: up to DN475 at outlet
Maximum depth: 5m
Maximum groundwater: 4m
Traffic loading: Class D (HN-HO-72)
Chamber weight: Approximately 115kg for a 2m deep manhole (plus concrete LDR and DI cover)
