ROMOLD Energy Compensation Chamber

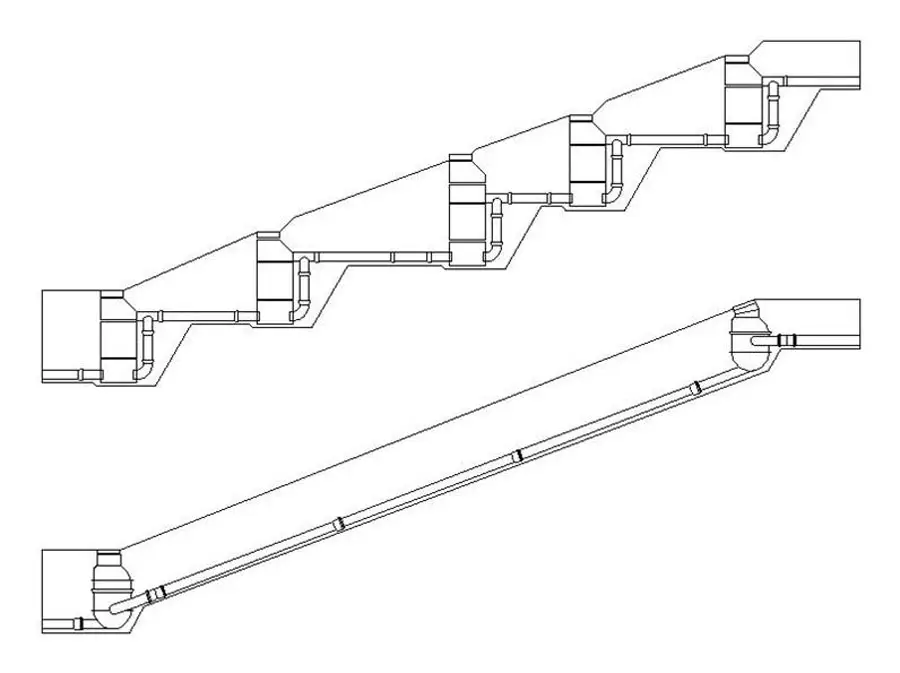

The ROMOLD DN1000 energy compensation chamber is a novel method of managing steep pipeline grades without the need for drop pipe structures.

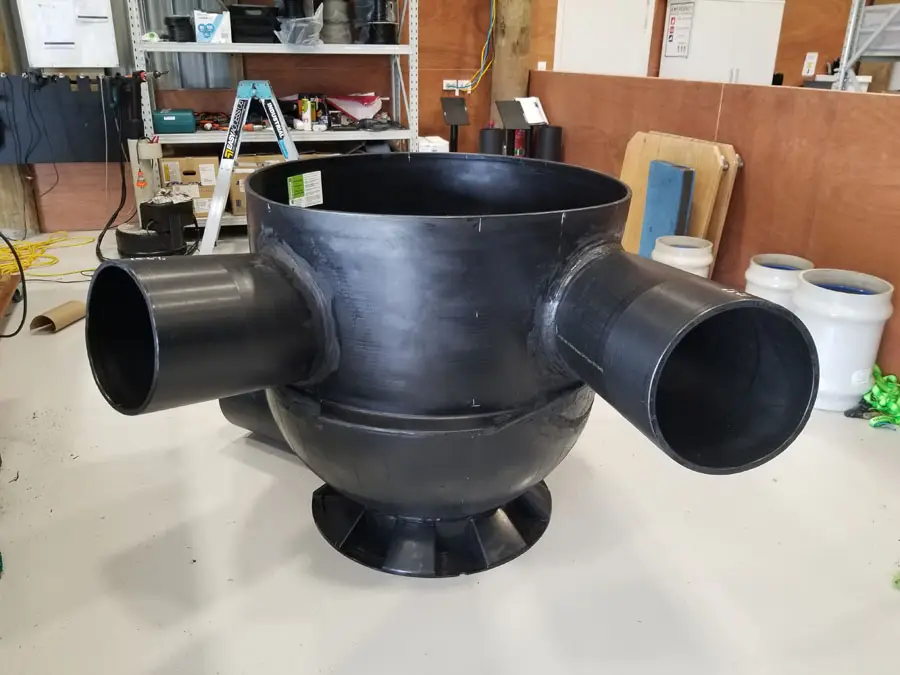

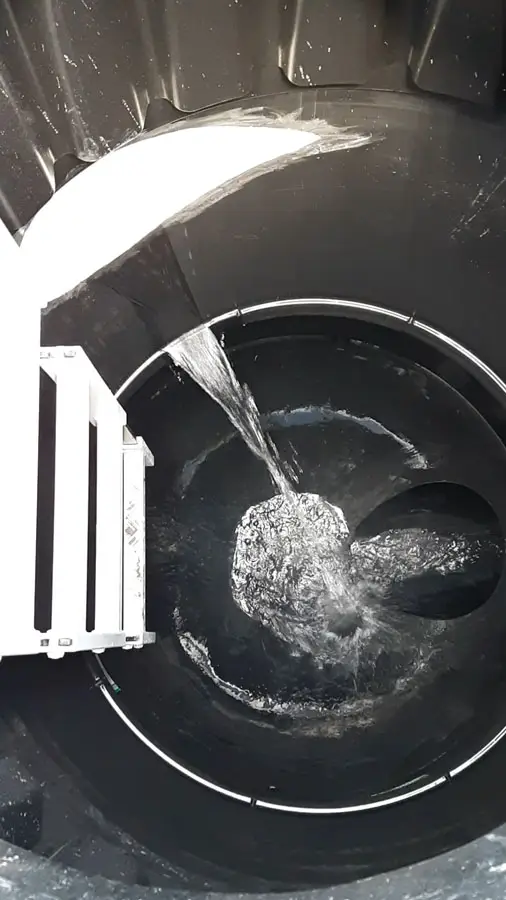

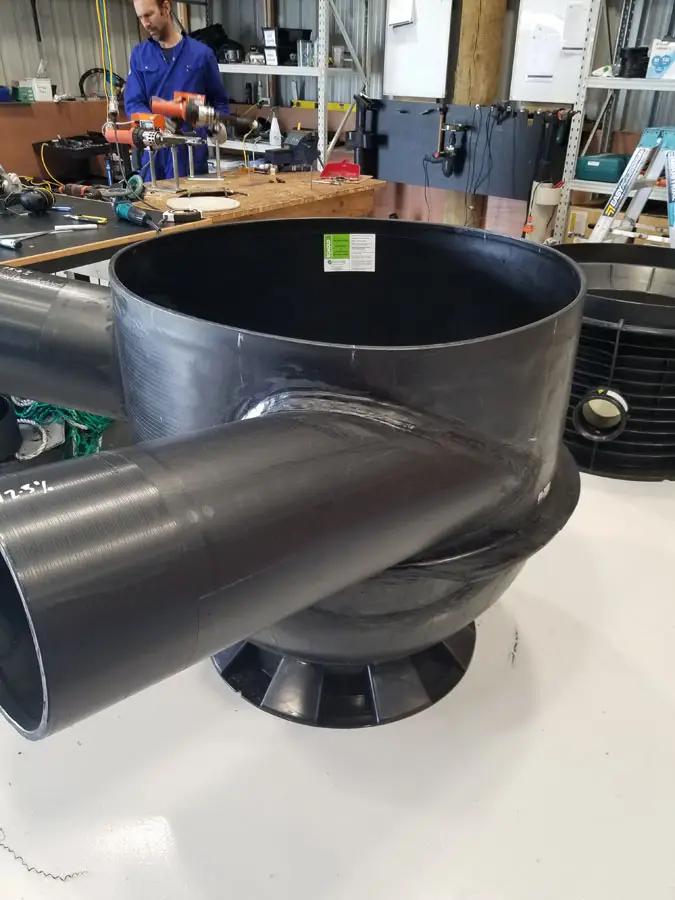

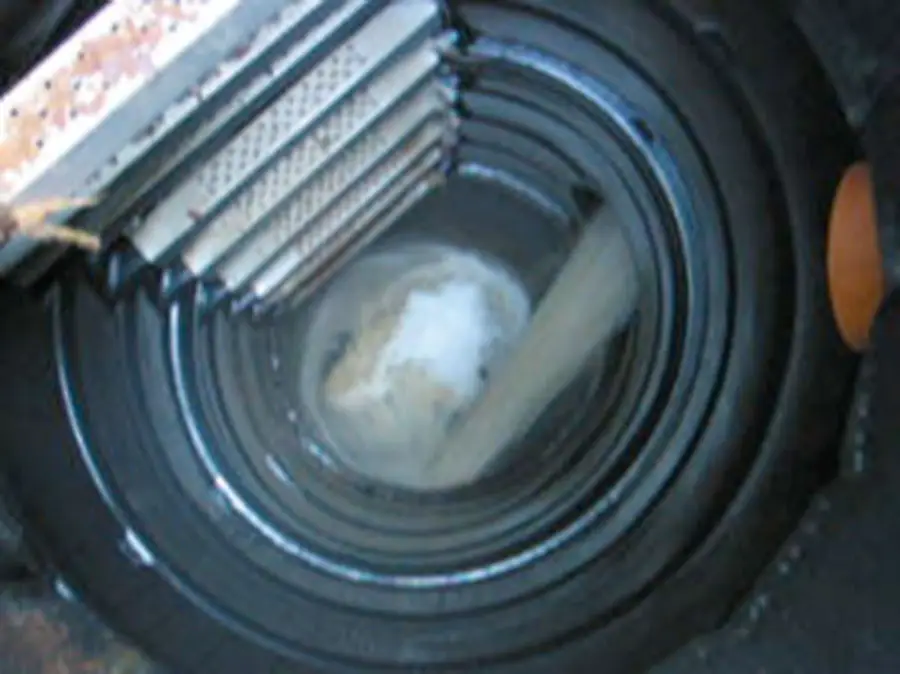

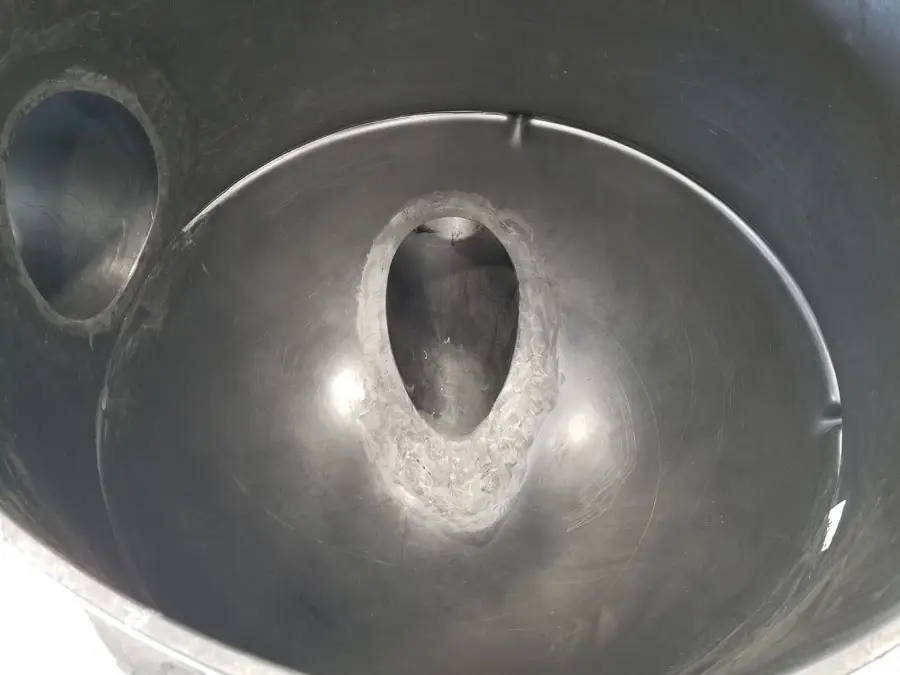

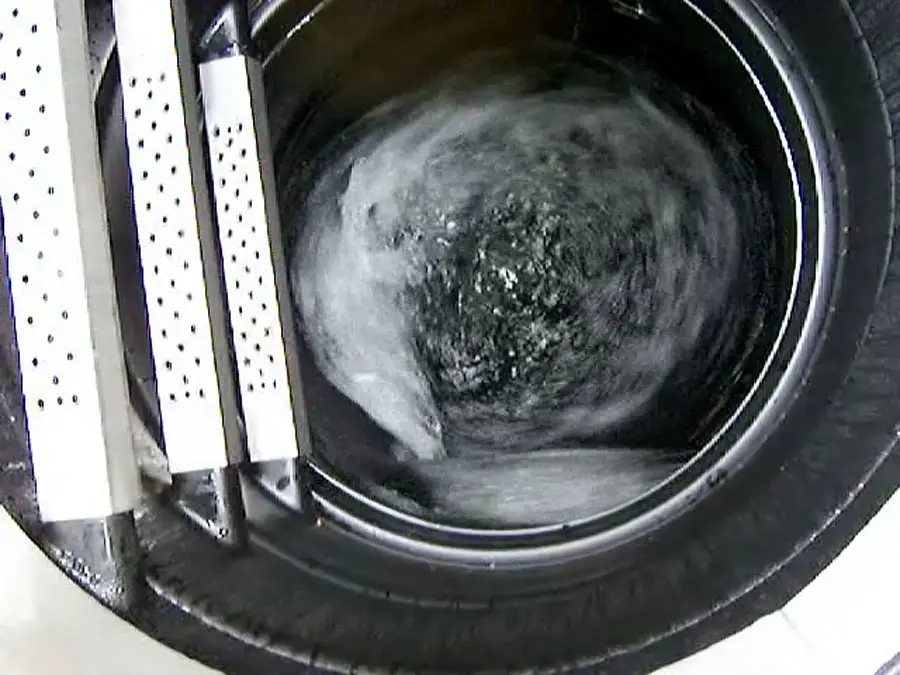

The energy compensation utilizes a hemi-spherical base with a tangential inlet. This sets up turbulence within the chamber to dissipate energy and decrease flow velocities through the chamber.

For stormwater, this allows for steeper line grades and inlet velocities without the risk of scouring concrete manhole chambers.

For wasterwater, internal drop pipes can be avoided. The full plastic solution avoids any risk of corrosion due to hydrogen sulfide gas liberation. This is especially useful when using an energy compensation chamber for high flow pressure sewer discharge.

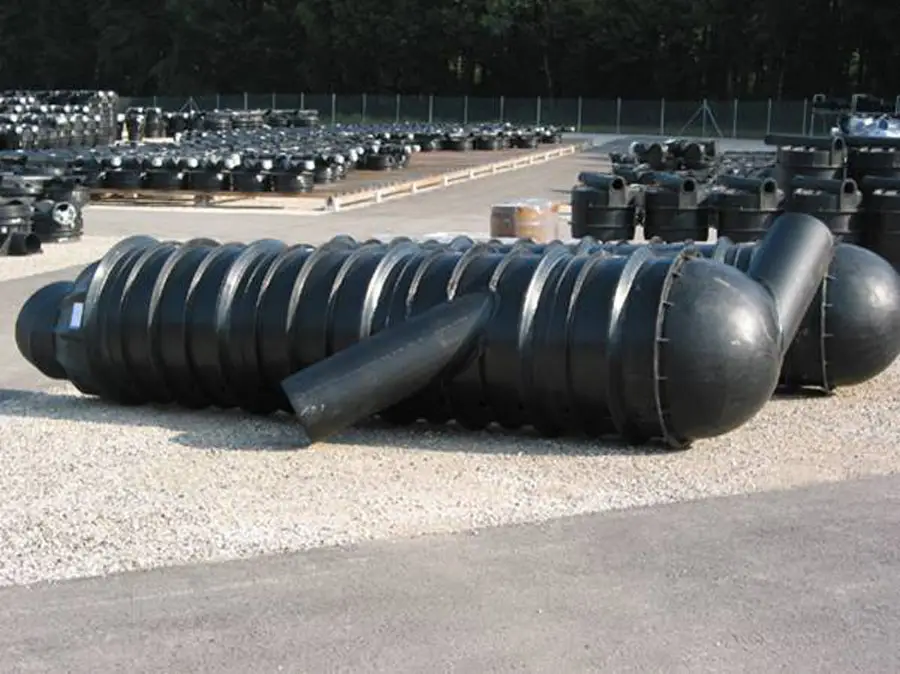

ROMOLD energy compensation chambers are constructed from ROMOLD mouldings at the AML workshop in Kerikeri. Designs are typically made in collaboration with the engineer to ensure that all project constraints are considered. Feedback on the expected performance of the solution can also be provided.

For further enquiries please contact us.

Features

Simple and easy to install
Pre-benched bases
Modular construction – risers are available

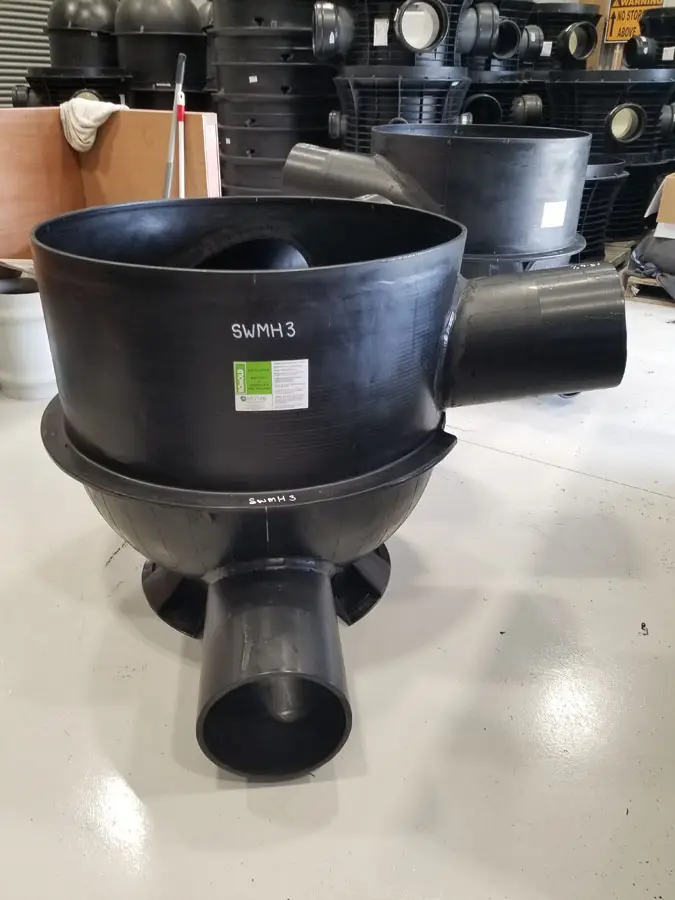

Outlet spigot with base options for DN150, DN175, DN225, DN300 PVC pipe
Blank inlet ports that can be drilled for inlet seals DN32 – DN300
Height adjustable to the nearest cm
Approved for HN-HO-72 traffic loading
Approved to EN 13598-2

Specifications

Material: Polyethylene base with polypropylene riser and cone
Seals: EPDM
Ladder: Glass-filled polypropylene
Diameter : 1000mm internal typical (DN625 available)
Throat: 600mm clear opening
Pipe sizes: up to DN475
Maximum depth: 5m
Maximum groundwater: 4m
Traffic loading: Class D (HN-HO-72)
Chamber weight: Approximately 115kg for a 2m deep manhole (plus concrete LDR and DI cover)
